Kiwa Triple V21i

Q: How much does the Kiwa Triple V21i cost?

The price estimate for the Kiwa Triple V21i is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/kiwa-triple-v21i#price; the request is passed to Kiwa or an authorised dealer.

Specs verified 2026-10-05 · kiwa-mc.co.jp Updated 2026-10-05

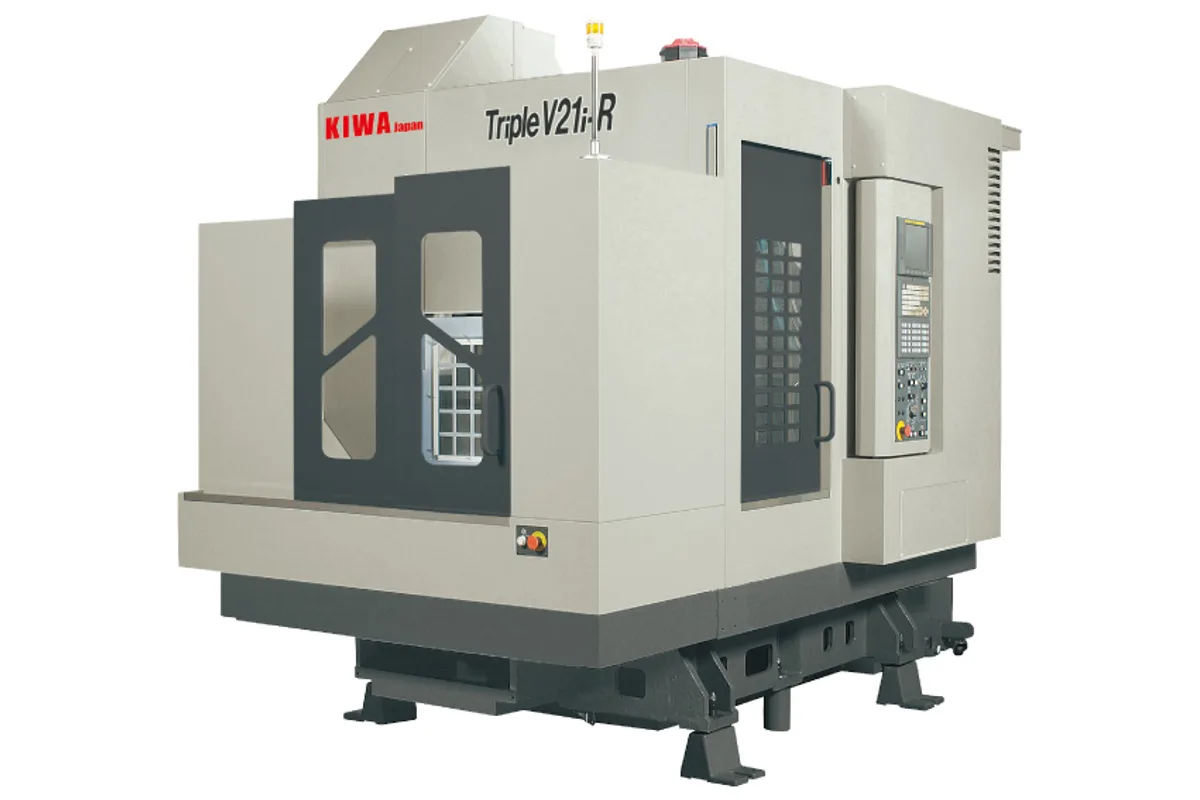

Kiwa Triple V21i vertical machining center

Image: kiwa-mc.co.jp, Kiwa

Key Specifications

Max Spindle

10,000 min-1 (OP. 12,000 min-1)

Spindle Taper

BT 40 (OP. CAT 40)

Tool Capacity

24 (OP. 30)

pallet count

Single

pallet size

820 x 450 mm (32.3 x 17.7 in)

max workpiece height

600 mm (23.6 in)

How much does the Kiwa Triple V21i cost?

Price estimate

Uncertain

We do not have a price for the Kiwa Triple V21i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Kiwa Triple V21i is a compact fixed-table vertical machining center: 610 x 410 x 510 mm (24.0 x 16.1 x 20.1 in) of travel in a footprint of 2,325 x 2,405 mm (91.5 x 94.7 in). The column moves in X, Y and Z, and the 820 x 450 mm (32.3 x 17.7 in) work surface does not.

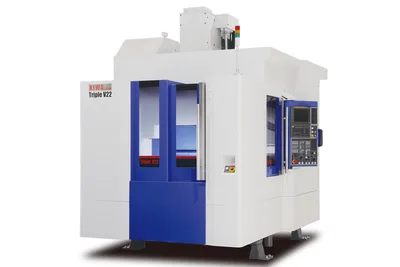

That near-square floor plan is what sets it apart in Kiwa's vertical range. The Triple V22 has the same single-table travels but is listed at 1,998 x 3,074 mm (78.7 x 121.0 in), narrower and a good deal deeper. If depth from the aisle is the constraint, this is the model that fits; if machines stand shoulder to shoulder, the sibling is the tighter one. The 30-tool magazine widens the Triple V21i to 2,415 x 2,405 mm (95.1 x 94.7 in).

Because nothing under the workpiece moves, a fixture or a rotary table can be as heavy and as awkwardly placed as the job requires without changing how the axes behave. Kiwa also lists centre hole chip disposal for this model. Workpieces can stand up to 600 mm (23.6 in) high, which is more than the 510 mm (20.1 in) of Z travel, so check tool length against part height on tall setups.

The spindle runs at 10,000 min-1, or 12,000 min-1 as an option, on a BT 40 taper with CAT 40 as the alternative. Rapids are 60,000 mm/min (2,362 ipm). The magazine holds 24 tools and the control is the FANUC 0i-M.

Full Specifications

Parameter	Value
Spindle Taper	BT 40 (OP. CAT 40)
Max Spindle Speed	10,000 min-1 (OP. 12,000 min-1)
Pallet Count	Single
Pallet Size	820 x 450 mm (32.3 x 17.7 in)
Max Workpiece Height	600 mm (23.6 in)
X Axis Travel	610 mm (24.0 in)
Y Axis Travel	410 mm (16.1 in)
Z Axis Travel	510 mm (20.1 in)
Rapid Traverse Xyz	60,000 mm/min (2,362 ipm)
Tool Capacity	24 (OP. 30)
CNC Control	FANUC 0i-M
Floor Space	2,325 x 2,405 mm (91.5 x 94.7 in); with 30-tool ATC: 2,415 x 2,405 mm (95.1 x 94.7 in); excluding chip conveyor

Specifications sourced from kiwa-mc.co.jp — verified 2026-10-05

Strengths & Limitations

Strengths

Footprint of 2,325 x 2,405 mm (91.5 x 94.7 in) for 610 x 410 x 510 mm (24.0 x 16.1 x 20.1 in) of travel
Fixed 820 x 450 mm (32.3 x 17.7 in) work surface; the column carries all three axes
Centre hole chip disposal is listed by Kiwa for this model
Workpieces up to 600 mm (23.6 in) high
Rapids of 60,000 mm/min (2,362 ipm) and a 12,000 min-1 spindle option

Limitations

Spindle options end at 12,000 min-1, and only BT 40 and CAT 40 tapers are listed
Y travel of 410 mm (16.1 in) is less than the 450 mm depth of the work surface
The 30-tool magazine widens the machine to 2,415 x 2,405 mm (95.1 x 94.7 in)
Table load, spindle power and torque are not among the listed rows

Best For

Shops with limited depth from the aisle to the wall Jobs that keep a rotary table or heavy fixture on a fixed table General 40-taper milling and drilling within 610 x 410 x 510 mm Tall parts up to 600 mm (23.6 in) high

Frequently Asked Questions

01 How much floor space does the Triple V21i need?

Kiwa lists 2,325 x 2,405 mm (91.5 x 94.7 in) with the standard 24-tool magazine and 2,415 x 2,405 mm (95.1 x 94.7 in) with the 30-tool magazine. Both figures leave out the chip conveyor, so add room for it and for its discharge.

02 What size of work does the Triple V21i handle?

Travels are 610 mm (24.0 in) in X, 410 mm (16.1 in) in Y and 510 mm (20.1 in) in Z. The work surface is 820 x 450 mm (32.3 x 17.7 in), so it is wider and deeper than the travel that covers it. Maximum workpiece height is 600 mm (23.6 in). No load limit is listed.

03 Why does the column move instead of the table on the Triple V21i?

Kiwa's stated reason is that a fixed table makes it easy to arrange fixtures and rotary tables. With the column carrying X, Y and Z, the mass on the table has no effect on axis motion, and cables and hoses to a rotary table or hydraulic fixture do not have to follow a moving table.

04 Which spindle and control does the Triple V21i use?

The spindle is listed at 10,000 min-1, with 12,000 min-1 as an option, and takes BT 40 tooling or CAT 40 optionally. The control is the FANUC 0i-M. For the 15,000 min-1 option or an HSK-A63 taper, look at the Triple V22, which lists both.
