YCM NDC4016B

Q: How much does the YCM NDC4016B cost?

The price estimate for the YCM NDC4016B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-ndc4016b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

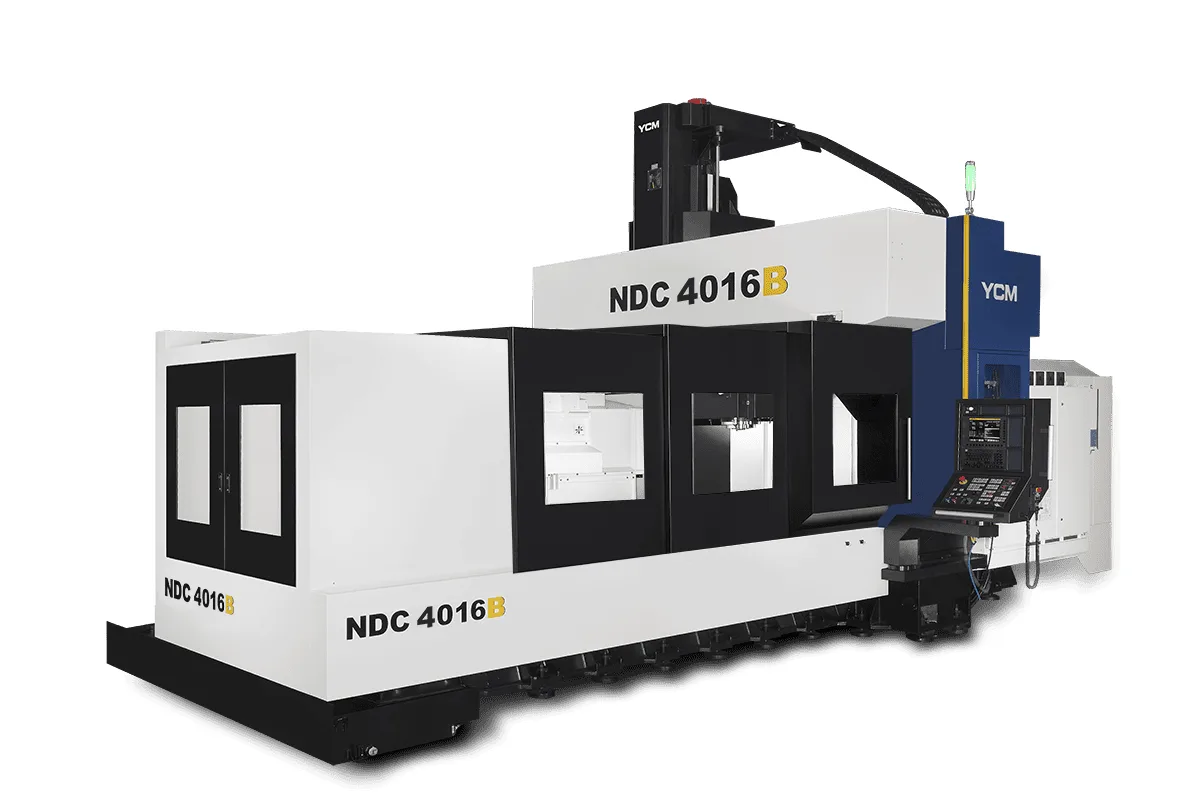

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

GB: 6,000 (IDD: 10,000) rpm

Spindle Taper

BBT50

Tool Capacity

32 tools; opt. 40 / 60 / 120 tools

Table Size

4,000 x 1,500 mm (157.48 x 59.06 in)

Spindle Power

35 kW (46.9 hp); opt. 45 kW (60.3 hp)

x axis travel

4,200 mm (165.35 in)

How much does the YCM NDC4016B cost?

Price estimate

Uncertain

We do not have a price for the YCM NDC4016B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM NDC4016B is the long, narrow machine of the NDC range. It combines 4,200 mm (165.35 in) of X travel with 1,600 mm (62.99 in) of Y, and its table measures 4,000 x 1,500 mm (157.48 x 59.06 in) with a 12,000 kg (26,455 lb) rating.

Long and narrow describes the parts as well: machine beds and columns, press brake beams, rails, long extrusion dies and structural members. The proportions also suit pendulum loading, with one end of the table being set up while the other is cut, provided the guarding allows it.

Length costs some speed. X rapid is 15 m/min on this model, against 20 m/min on the NDC3016B, while Y stays at 20 m/min and Z at 15 m/min. The frame is otherwise the same narrow one: 1,800 mm (70.87 in) between columns, roller type linear guideways on X and Y, a boxway on Z, and a base with multiple support points to keep a four-metre X axis straight.

The spindle is BBT50, either the 6,000 rpm gearbox version or the 10,000 rpm IDD version, with 35 kW (46.9 hp) and an optional 45 kW (60.3 hp). On a table this long a large magazine is worth having, since several different parts can be set up in a row; 32 tools are standard and 40, 60 or 120 are optional. Z travel is 762 mm (30 in), with 1,016 mm (40 in) as the option. The machine weighs 30,000 kg (66,138 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	GB: 6,000 (IDD: 10,000) rpm
Spindle Motor Power	35 kW (46.9 hp); opt. 45 kW (60.3 hp)
Spindle Taper	BBT50
X Axis Travel	4,200 mm (165.35 in)
Y Axis Travel	1,600 mm (62.99 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Nose to Table	200~962 [30"Standard] (450~1,212) [30"Raised 250] (200~1,216) [40"Raised 250] mm
Distance Between Columns	1,800 mm (70.87 in)
Table Size	4,000 x 1,500 mm (157.48 x 59.06 in)
T-Slots	8 x 22 x 180 mm (8 x 0.87 x 7.09 in)
Max Table Load	12,000 kg (26,455 lb)
Rapid Traverse Xyz	15/20/15 m/min (591/787/591 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	32 tools; opt. 40 / 60 / 120 tools
Max Tool Weight	20 kg (44 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	30,000 kg (66,138 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

4,200 mm (165.35 in) of X travel on a 4,000 x 1,500 mm (157.48 x 59.06 in) table
Table load of 12,000 kg (26,455 lb)
Roller type linear guideways on X and Y, boxway on Z
Base with multiple supporting points for X-axis straightness
Magazine options of 40, 60 and 120 tools

Limitations

X rapid drops to 15 m/min
Width is limited by 1,600 mm (62.99 in) of Y and 1,800 mm (70.87 in) between columns
Standard Z travel is 762 mm (30 in)
Weighs 30,000 kg (66,138 lb) and needs a long foundation

Best For

Machine beds, beams and rails up to four metres Several parts fixtured in a row along the table Long dies and structural parts up to 12,000 kg (26,455 lb)

Frequently Asked Questions

01 How long is the NDC4016B work area?

X travel is 4,200 mm (165.35 in) and the table is 4,000 x 1,500 mm (157.48 x 59.06 in). Y travel is 1,600 mm (62.99 in), and the distance between columns is 1,800 mm (70.87 in).

02 How fast do the axes move?

Rapid traverse is listed as 15/20/15 m/min for X, Y and Z. Cutting feed is 1~10,000 mm/min (0.04~394 ipm). The NDC3016B, one size shorter, has an X rapid of 20 m/min.

03 What does it weigh and carry?

The machine weighs 30,000 kg (66,138 lb) and the table is rated for 12,000 kg (26,455 lb). T-slots are listed as 8 x 22 x 180 mm.

04 Which model has the same length with more width?

The NDC4022B keeps the 4,200 mm (165.35 in) X travel and extends Y travel to 2,200 mm (86.61 in), with a 4,000 x 1,800 mm (157.48 x 70.87 in) table rated for 15,000 kg (33,069 lb).
