Hyundai WIA XM2600 Series
Key Specifications
Y Travel
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
main chuck size
Overview

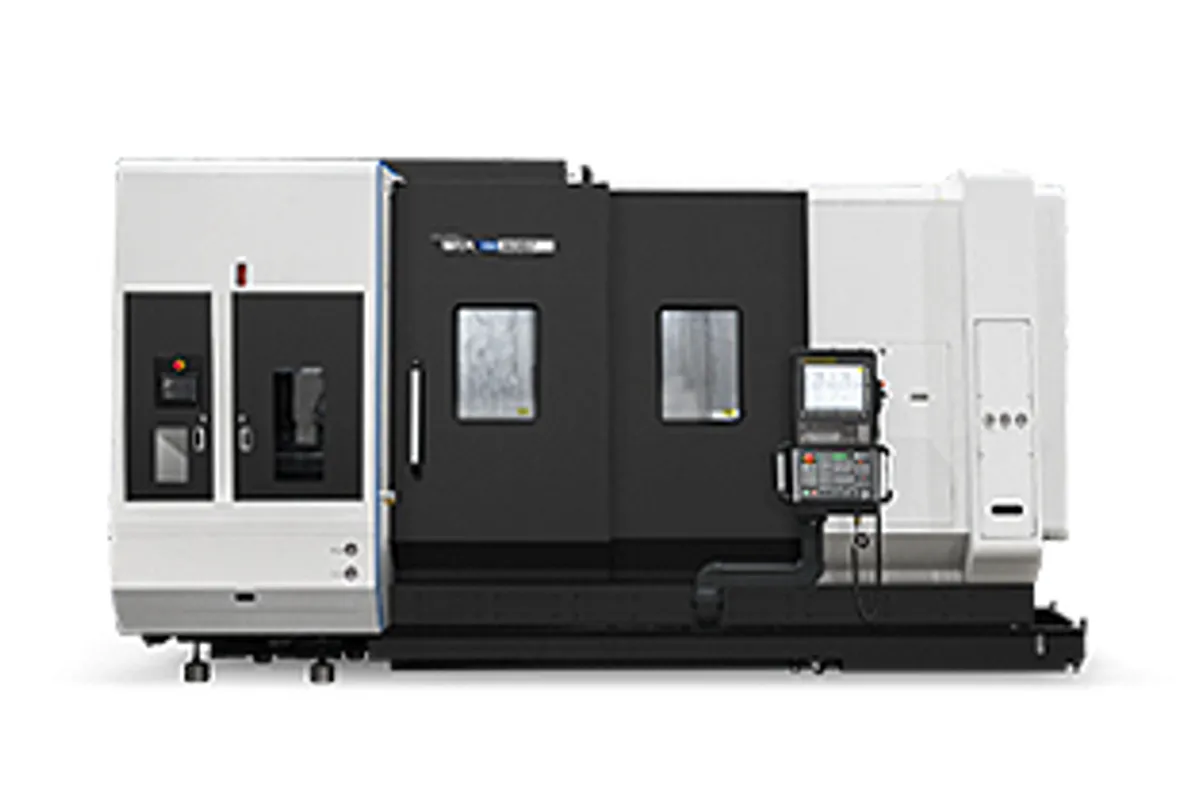

The Hyundai WIA XM2600 Series is a multi-axis mill-turn machining center available in three configurations: XM2600 (single spindle), XM2600S (with sub-spindle), and XM2600ST (with sub-spindle and lower turret). Featuring a 10-inch main chuck, 30/22 kW (40/30 hp) turning spindle, 40-tool ATC milling head, and optional 12-station lower turret, the XM2600 represents Hyundai WIA's most advanced multi-tasking platform for complete part production.
The turning spindle delivers 30/22 kW at 4,000 RPM with 724/410 N.m of torque through a 10-inch chuck, while the milling head provides 40 tools with 12,000 RPM capability for high-speed milling operations. Maximum turning diameter reaches 660 mm (26 in) with 1,540 mm (60.6 in) turning length, accommodating large shaft and tubular components. The XM2600S adds a 10-inch sub-spindle for backworking, and the XM2600ST adds both sub-spindle and a 12-station lower turret for simultaneous operations.
Axis travels are generous: X1 695 mm, Z1 1,585 mm, Y 300 mm for the milling head, with the XM2600ST adding X2 235 mm and Z2 1,540 mm for the lower turret. LM guide construction delivers rapid traverse rates of 48/48/36 m/min on X1/Z1/Y axes, providing fast positioning between operations. The A-axis travel of 1,540 mm with 30 m/min rapid adds additional capability for complex angular operations.
New XM2600 Series machines price between $350,000 and $550,000 depending on configuration. The series competes with the DMG MORI NTX 2500, Mazak Integrex i-300, and Okuma Multus B300 II. Controlled by the latest Fanuc 31i-B5 Plus, the XM2600 delivers true multi-tasking capability for shops producing complex parts that would otherwise require multiple machines and setups.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 660 mm (26 in) |
| Max Turning Length | mm |
| Main Chuck Size | 10" (254 mm) |
| Sub Spindle Chuck | 10" (XM2600S/ST only) |
| Max Spindle Speed | 4,000 RPM |
| Spindle Motor Power | 30/22 kW (40/30 hp) |
| Spindle Torque | N.m |
| Milling Head Tools | 40T ATC |
| Milling Speed | 12,000 RPM |
| Lower Turret | 12 stations (XM2600ST only) |
| Travel X1 | 695 mm (27.4 in) |
| Travel Z1 | 1,585 mm (62.4 in) |
| Y-Axis Travel | 300 mm (11.8 in) |
| Travel X2 | 235 mm (9.3 in) (XM2600ST only) |
| Travel Z2 | 1,540 mm (60.6 in) (XM2600ST only) |
| Travel A | 1,540 mm (60.6 in) |
| Rapid Traverse X1 Z1 | 48/48 m/min |
| Rapid Traverse Y | 36 m/min |
| Rapid Traverse A | 30 m/min |
| Guideway Type | LM guides |
| CNC Control | Fanuc 31i-B5 Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Chuck Size | inch |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| No Of Tools | EA |
| Tool Size | mm |
| Milling Tool Speed | r/min |
| Travel | mm |
| Rapid Travel | m/min |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 40-tool ATC milling head with 12,000 RPM provides true machining center capability integrated with a turning platform
- 660 mm turning diameter and 1,540 mm turning length handle large, complex multi-tasking workpieces
- XM2600ST with sub-spindle and lower turret enables simultaneous operations for maximum productivity
- 48 m/min rapid traverse on main axes minimizes non-cutting time for complex multi-operation programs
- Fanuc 31i-B5 Plus control provides the latest in multi-channel programming and machine intelligence
- 300 mm Y-axis travel provides generous milling envelope for off-center features and complex contours
Limitations
- High capital cost ($350K-$550K) requires clear production volume and complexity justification
- Multi-tasking programming complexity requires specialized CAM software and highly skilled programmers
- Large machine footprint and weight demand significant floor space and foundation investment
- Hyundai WIA's multi-tasking machine support and applications engineering is less established than DMG MORI or Mazak
Best For
Frequently Asked Questions
01
XM2600: single turning spindle with 40-tool milling head. XM2600S: adds a 10-inch sub-spindle for backworking and part handoff. XM2600ST: adds both sub-spindle and a 12-station lower turret for simultaneous turning while the milling head works. Each step up adds capability and approximately $75,000-$100,000 to the price.
02
Both are multi-tasking mill-turn machines with similar capability. The NTX 2500 has a longer track record and deeper applications support in North America. The XM2600 offers a significant price advantage (20-30% lower) while matching the NTX on core specifications. Both use high-end Fanuc controls for multi-channel programming.
03
The base XM2600 starts around $350,000-$400,000. The XM2600S with sub-spindle runs $425,000-$480,000. The full XM2600ST with sub-spindle and lower turret reaches $480,000-$550,000. Options like high-pressure coolant, probing, and advanced software add to the base price.
04
Multi-tasking CAM software is essential: GibbsCAM, ESPRIT (Hexagon), Mastercam Mill-Turn, hyperMILL, and SolidCAM all support multi-channel mill-turn programming. The Fanuc 31i-B5 Plus control handles the complex synchronization of milling head, turret, and dual spindles required for efficient multi-tasking operations.
