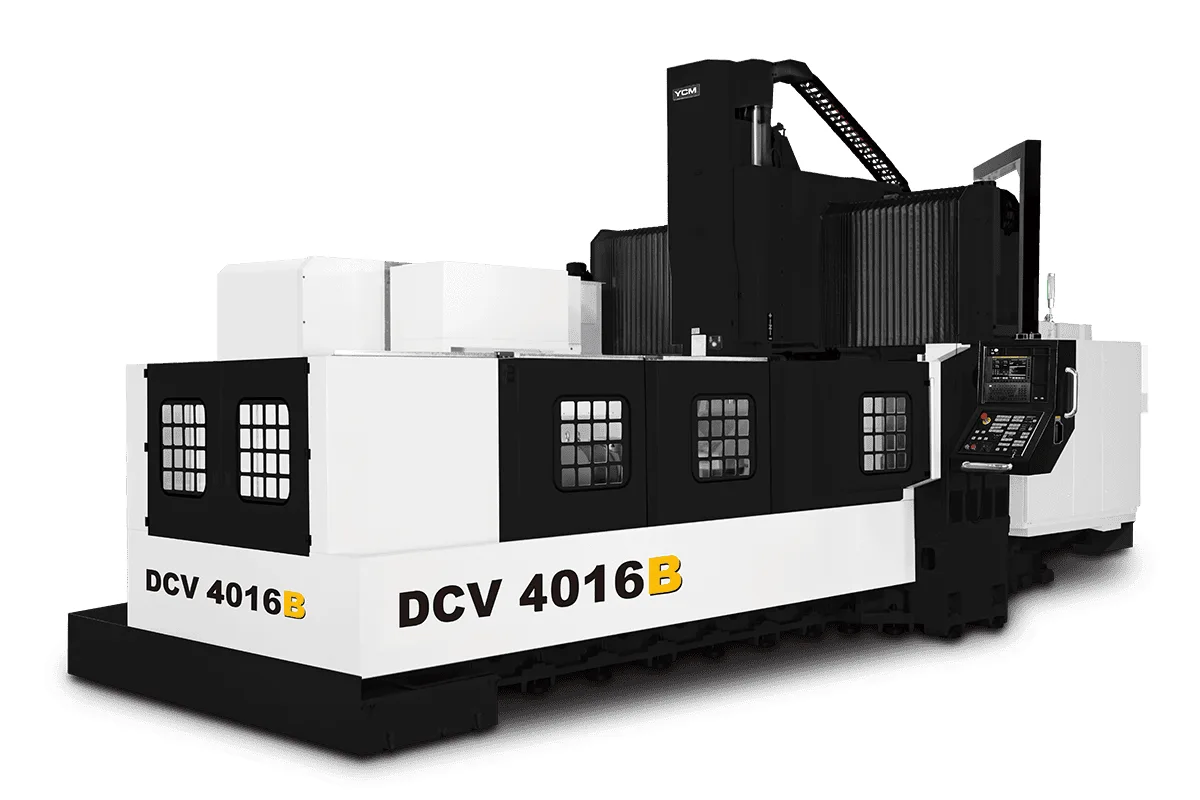

YCM DCV4016B
Image: ycmcnc.com, YCM
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the YCM DCV4016B cost?
Price estimate
We do not have a price for the YCM DCV4016B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Four metres long and one and a half wide, the table of the YCM DCV4016B is shaped for long work. This double-column machining center has 4,065 mm of X travel and 1,600 mm of Y, a 4,260 x 1,500 mm table rated for 12,000 kg, and a geared BBT50 spindle.
It is the DCV3016B stretched by a metre, and the comparison shows what the stretch costs. The longer table slows the X axis to 15 m/min, where the DCV3016B manages 20 m/min, and the machine weight rises to 35,000 kg. Column spacing stays at 1,820 mm, so the two machines pass the same width of part.
A long, narrow bridge mill is the tool for machine beds, slideway castings, press beams, rails and long weldments. Because the bridge is fixed and the table moves under it, a four-metre table needs more than eight metres of floor along X; the foundation plan should come from YCM before the building is prepared.
The head is the standard one of the B line: 4,500 rpm through a 2-step gear transmission, 25 kW, with 6,000 and 10,000 rpm and 45 kW as options. X is gearbox driven and the head slides on a box guideway. T-slots are 22 mm wide on a 150 mm pitch. Forty tools of up to 20 kg are standard, with 60 or 120 optional. Z travel is 762 mm, or 1,016 mm as the option.
Full Specifications
| Parameter | Value |
|---|---|
| Max Spindle Speed | 4,500 rpm; opt. 6,000 / 10,000 rpm |
| Spindle Motor Power | 25 kW (33.5 hp); opt. 25/45 kW (33.5/60 hp) |
| Spindle Taper | BBT50 |
| X Axis Travel | 4,065 mm (160.04 in) |
| Y Axis Travel | 1,600 mm (62.99 in) |
| Z Axis Travel | 762 mm (30 in); opt. 1,016 mm (40 in) |
| Distance Spindle Nose to Table | 200~962 (450~1,212 [Raised Column 250] / 200~1,216 [Z-axis Travel 1,016]) mm |
| Distance Between Columns | 1,820 mm (71.65 in) |
| Table Size | 4,260 x 1,500 mm (167.72 x 59.06 in) |
| T-Slots | 9 x 22 x 150 mm (9 x 0.87 x 5.91 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Rapid Traverse Xyz | 15/15/15 m/min (591/591/591 ipm) |
| Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Tool Capacity | 40 tools; opt. 60 / 120 tools |
| Max Tool Weight | 20 kg (44.1 lb) |
| Max Tool Size | ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in) |
| Machine Weight | 35,000 kg (77,161 lb) |
Specifications sourced from ycmcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,065 mm of X travel on a 4,260 x 1,500 mm table
- Table load of 12,000 kg for long, heavy parts
- Geared BBT50 spindle with optional 10,000 rpm and 45 kW
- Gearbox-driven X axis and box guideway on Z
- Optional 1,016 mm Z travel and raised column
Limitations
- Rapid traverse is 15 m/min on all axes
- Part width is limited by 1,820 mm between columns and 1,600 mm of Y
- Standard spindle tops out at 4,500 rpm
- The moving table needs floor length well beyond the travel
Best For
Frequently Asked Questions
01
X travel is 4,065 mm and Y travel 1,600 mm, over a table of 4,260 x 1,500 mm. Z travel is 762 mm as standard and 1,016 mm as an option. The distance between columns is 1,820 mm.
02
The DCV3016B has 3,060 mm of X travel, a 3,260 x 1,500 mm table for 10,000 kg, an X rapid of 20 m/min and a weight of 31,000 kg. The DCV4016B has 4,065 mm of X, a 12,000 kg rating and weighs 35,000 kg.
03
A BBT50 spindle at 4,500 rpm with 25 kW, which YCM describes as having a 2-step gear transmission and roller type spindle bearings. The options column lists 6,000 and 10,000 rpm spindles and 45 kW.
04
40 tools as standard, with 60 or 120 as options. A tool can weigh 20 kg and measure ø125 x 350 mm with adjacent tools, or ø240 x 350 mm without.
