YCM NDC3016B

Q: How much does the YCM NDC3016B cost?

The price estimate for the YCM NDC3016B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-ndc3016b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

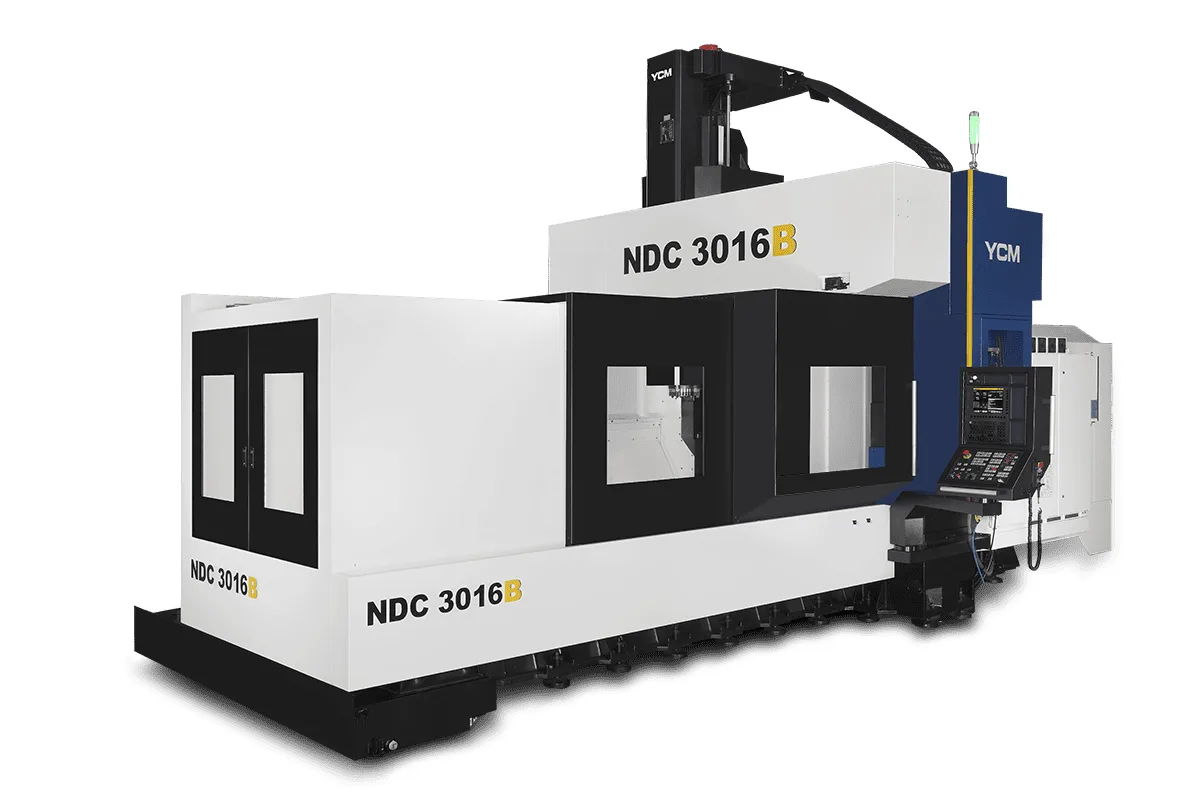

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

GB: 6,000 (IDD: 10,000) rpm

Spindle Taper

BBT50

Tool Capacity

32 tools; opt. 40 / 60 / 120 tools

Table Size

3,000 x 1,500 mm (118.11 x 59.06 in)

Spindle Power

35 kW (46.9 hp); opt. 45 kW (60.3 hp)

x axis travel

3,200 mm (125.98 in)

How much does the YCM NDC3016B cost?

Price estimate

Uncertain

We do not have a price for the YCM NDC3016B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Three metres of table under a 1,800 mm (70.87 in) bridge: the YCM NDC3016B is the mid-length model of the narrow NDC frame. X travel is 3,200 mm (125.98 in), Y travel 1,600 mm (62.99 in), and the 3,000 x 1,500 mm (118.11 x 59.06 in) table is rated for 10,000 kg (22,046 lb).

It is a common size for a reason. A three by one and a half metre table takes large mold bases whole, lets two smaller plates be set up end to end, and suits welded machine frames and long beams. Because the table rides on a base that supports it everywhere along the stroke, a heavy part at one end does not tilt it.

The table lists rapids of 20 m/min in X and Y and 15 m/min in Z, the same as on the shorter NDC2016B, so the added length and load have not slowed the X axis. Cutting feed is 1~10,000 mm/min (0.04~394 ipm).

Spindle choices are a 6,000 rpm gearbox unit or a 10,000 rpm IDD unit, both BBT50, at 35 kW (46.9 hp) with 45 kW (60.3 hp) optional. The Z slide is a boxway; X and Y are on roller type linear guideways. The standard 32-tool magazine can be replaced by 40, 60 or 120-tool versions, useful when one setup combines roughing, semi-finishing and finishing of a mold. Tools weigh up to 20 kg (44 lb). With the 1,016 mm (40 in) Z option and a raised column the daylight under the spindle grows considerably. Weight is 26,000 kg (57,320 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	GB: 6,000 (IDD: 10,000) rpm
Spindle Motor Power	35 kW (46.9 hp); opt. 45 kW (60.3 hp)
Spindle Taper	BBT50
X Axis Travel	3,200 mm (125.98 in)
Y Axis Travel	1,600 mm (62.99 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Nose to Table	200~962 [30"Standard] (450~1,212) [30"Raised 250] (200~1,216) [40"Raised 250] mm
Distance Between Columns	1,800 mm (70.87 in)
Table Size	3,000 x 1,500 mm (118.11 x 59.06 in)
T-Slots	8 x 22 x 180 mm (8 x 0.87 x 7.09 in)
Max Table Load	10,000 kg (22,046 lb)
Rapid Traverse Xyz	20/20/15 m/min (787/787/591 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	32 tools; opt. 40 / 60 / 120 tools
Max Tool Weight	20 kg (44 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	26,000 kg (57,320 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

3,000 x 1,500 mm (118.11 x 59.06 in) table rated for 10,000 kg (22,046 lb)
X rapid of 20 m/min over 3,200 mm (125.98 in) of travel
6,000 rpm gearbox or 10,000 rpm IDD spindle on a BBT50 taper
32-tool magazine with 40, 60 and 120-tool options
Table supported by the base over its full stroke

Limitations

Y travel of 1,600 mm (62.99 in) and 1,800 mm (70.87 in) between columns limit part width
Standard Z travel is 762 mm (30 in)
Cutting feed tops out at 10,000 mm/min (394 ipm)
Machine weight is 26,000 kg (57,320 lb)

Best For

Large mold bases and die plates up to three metres long Machine frames, beams and weldments up to 10,000 kg (22,046 lb) Two-plate setups end to end on one table

Frequently Asked Questions

01 How much can the NDC3016B table carry?

10,000 kg (22,046 lb). The table is 3,000 x 1,500 mm (118.11 x 59.06 in) with T-slots listed as 8 x 22 x 180 mm, and YCM states that it is fully supported by the base.

02 Is there a wider version of the NDC3016B?

Yes. The NDC3022B has the same 3,200 mm (125.98 in) X travel with 2,200 mm (86.61 in) of Y, 2,200 mm (86.61 in) between columns and a 3,000 x 1,800 mm (118.11 x 70.87 in) table rated for 12,000 kg (26,455 lb).

03 What spindle power and speed are available?

35 kW (46.9 hp) as standard and 45 kW (60.3 hp) as an option, with a 6,000 rpm gearbox spindle or a 10,000 rpm IDD spindle. The taper is BBT50 and tools can weigh up to 20 kg (44 lb).

04 How tall a part fits under the spindle?

Z travel is 762 mm (30 in), or 1,016 mm (40 in) as an option. The spindle nose to table row lists 200~962 mm for the standard machine and longer ranges for a column raised by 250 mm and for the 40-inch Z travel.
