YCM DCV5025B

Q: How much does the YCM DCV5025B cost?

The price estimate for the YCM DCV5025B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-dcv5025b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

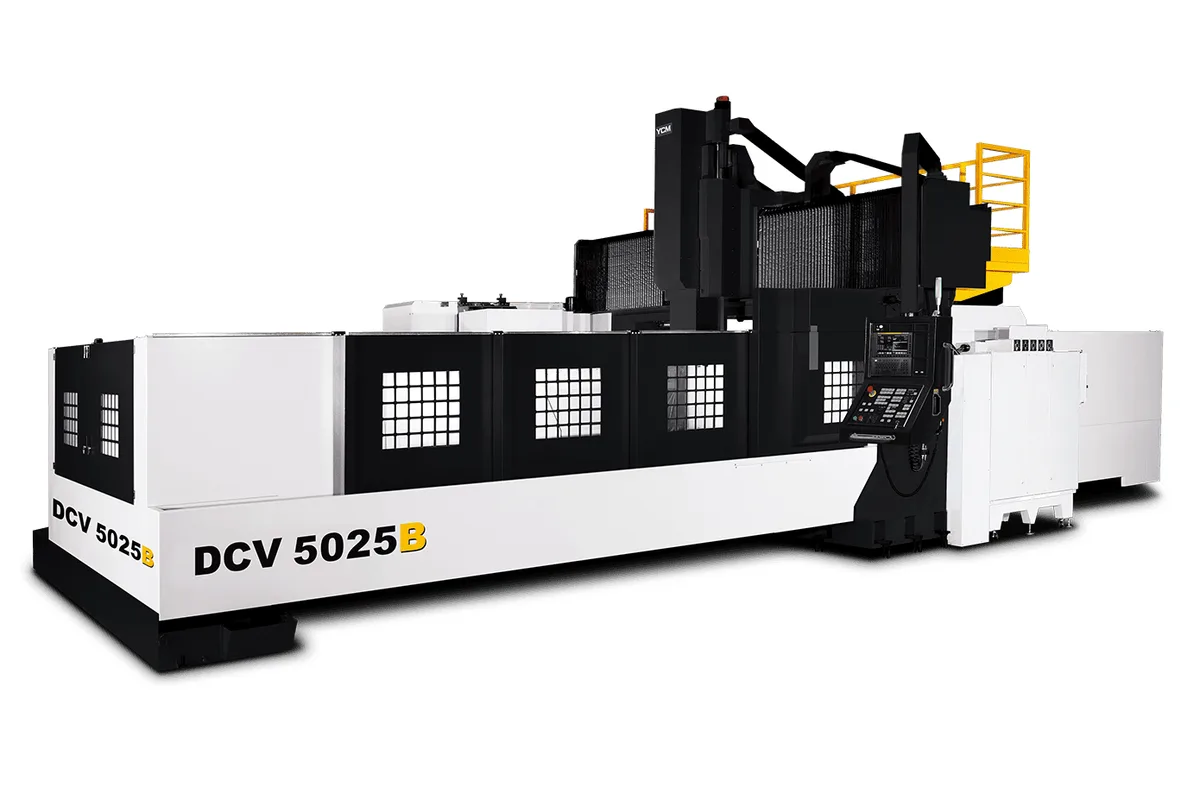

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

4,500 rpm; opt. 6,000 / 10,000 rpm

Spindle Taper

BBT50

Tool Capacity

40 tools; opt. 60 / 120 tools

Table Size

5,000 x 2,400 mm (196.85 x 94.49 in)

Spindle Power

25/25/45 kW (33.5/33.5/60 hp)

x axis travel

5,200 mm (204.73 in)

How much does the YCM DCV5025B cost?

Price estimate

Uncertain

We do not have a price for the YCM DCV5025B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A table of 5,000 x 2,400 mm rated for 23,000 kg is the core of the YCM DCV5025B. This double-column machining center has 5,200 mm of X travel, 2,500 mm of Y, and 2,720 mm between its columns.

Twelve square metres of table changes how a shop plans its work. One very large part can be machined, or a complete die set, upper and lower halves together, can be clamped side by side and cut in one program so that the two halves match. The 11 T-slots, 28 mm wide at a 200 mm pitch, run the length of the table for that kind of flexible clamping.

A table this large also means long tool paths, and a surface-finishing pass over a big die can run for a day or more. Spindle choice follows from the mix of work. The standard BBT50 spindle is a 4,500 rpm geared unit for roughing; 6,000 and 10,000 rpm versions are optional and suit shops that finish on the same machine. The power row reads 25/25/45 kW.

The table moves at 12 m/min in rapid on a gearbox-driven X axis, and the saddle and head at 15 m/min. Z travel is 762 mm with a 1,016 mm option. A 40-tool magazine is standard, 60 and 120-tool magazines are optional, and tools may weigh 20 kg. At 54,000 kg the machine is heavier than the narrower DCV5021B, the difference being bridge and saddle.

Full Specifications

Parameter	Value
Max Spindle Speed	4,500 rpm; opt. 6,000 / 10,000 rpm
Spindle Motor Power	25/25/45 kW (33.5/33.5/60 hp)
Spindle Taper	BBT50
X Axis Travel	5,200 mm (204.73 in)
Y Axis Travel	2,500 mm (98.43 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Nose to Table	200~962 (450~1,212 [Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016]) mm
Distance Between Columns	2,720 mm (107.09 in)
Table Size	5,000 x 2,400 mm (196.85 x 94.49 in)
T-Slots	11 x 28 x 200 mm (11 x 1.10 x 7.87 in)
Max Table Load	23,000 kg (50,706 lb)
Rapid Traverse Xyz	12/15/15 m/min (472/591/591 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	40 tools; opt. 60 / 120 tools
Max Tool Weight	20 kg (44.1 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	54,000 kg (119,048 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

5,000 x 2,400 mm table rated for 23,000 kg
5,200 mm of X travel and 2,500 mm of Y travel
Room to clamp both halves of a large die set side by side
Geared 4,500 rpm BBT50 spindle with 6,000 and 10,000 rpm options
11 T-slots of 28 mm at a 200 mm pitch

Limitations

Machine weight of 54,000 kg
X rapid is 12 m/min, slower than Y and Z
Z travel is 762 mm as standard
Finishing at 4,500 rpm is slow; the faster spindles are options

Best For

Complete large die sets machined in one setup Very large molds, plates and machine structures Workpieces up to 23,000 kg

Frequently Asked Questions

01 How large is the DCV5025B table?

5,000 x 2,400 mm, with T-slots listed as 11 x 28 x 200 mm and a load rating of 23,000 kg. X travel is 5,200 mm, Y travel 2,500 mm and the distance between columns 2,720 mm.

02 How does it differ from the DCV5021B?

The DCV5021B has 2,100 mm of Y travel, 2,320 mm between columns, a 5,000 x 2,100 mm table and weighs 51,000 kg. The DCV5025B has 2,500 mm of Y, 2,720 mm between columns and weighs 54,000 kg. Table load is 23,000 kg on both.

03 What spindle should a die shop choose?

The standard spindle is 4,500 rpm with gear transmission, suited to roughing. The table lists 6,000 and 10,000 rpm spindles as options, with a power row of 25/25/45 kW. A shop that finishes on the machine should discuss the faster spindles with YCM.

04 What are the feed rates?

Rapid traverse is listed as 12/15/15 m/min for X, Y and Z, and cutting feed as 1~10,000 mm/min. Z travel is 762 mm, with 1,016 mm as an option.
