YCM NDC4022B

Q: How much does the YCM NDC4022B cost?

The price estimate for the YCM NDC4022B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-ndc4022b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

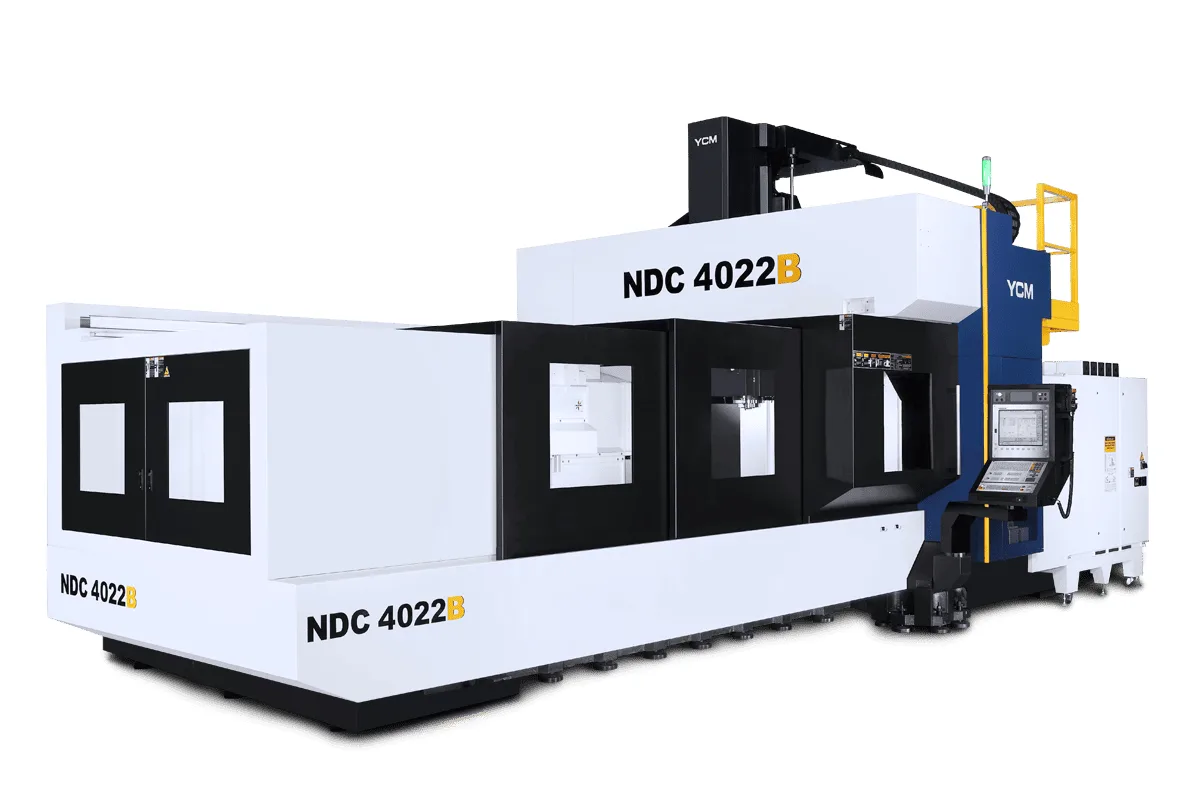

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

GB: 6,000 (IDD: 10,000) rpm

Spindle Taper

BBT50

Tool Capacity

32 tools; opt. 40 / 60 / 120 tools

Table Size

4,000 x 1,800 mm (157.48 x 70.87 in)

Spindle Power

35 kW (46.9 hp); opt. 45 kW (60.3 hp)

x axis travel

4,200 mm (165.35 in)

How much does the YCM NDC4022B cost?

Price estimate

Uncertain

We do not have a price for the YCM NDC4022B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Largest three-axis machine of the NDC series, the YCM NDC4022B has a 4,000 x 1,800 mm (157.48 x 70.87 in) table rated for 15,000 kg (33,069 lb). X travel is 4,200 mm (165.35 in), Y travel 2,200 mm (86.61 in), and the columns stand 2,200 mm (86.61 in) apart.

Fifteen tonnes on the table brings the big jobs into reach: automotive stamping dies, large injection mold halves, turbine and compressor casings, bases for other machine tools. Such parts are usually rough-cast or flame-cut with a lot of stock, and the machine is equipped for removing it. The spindle gearbox, built by YCM, is a 2-step transmission with oil cooling, driving a BBT50 spindle with 35 kW (46.9 hp), or 45 kW (60.3 hp) as an option.

Moving that much mass along X is done by a direct gear drive, not a ball screw. The head is a box structure sliding on a boxway, and the columns carry it on bases widened with boots so that the headstock cannot lean forward under load.

Buyers comparing it with the NDC3022B get one more metre of table and a higher load rating on the same cross section. Rapid traverse is 15 m/min in X and Z and 20 m/min in Y. T-slots are 28 mm wide on a 200 mm pitch. A 10,000 rpm IDD spindle is the alternative to the 6,000 rpm gearbox spindle, Z travel is 762 mm (30 in) or optionally 1,016 mm (40 in), and the magazine takes 32 tools, or 40, 60 or 120. Machine weight is 37,000 kg (81,570 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	GB: 6,000 (IDD: 10,000) rpm
Spindle Motor Power	35 kW (46.9 hp); opt. 45 kW (60.3 hp)
Spindle Taper	BBT50
X Axis Travel	4,200 mm (165.35 in)
Y Axis Travel	2,200 mm (86.61 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Nose to Table	200~962 [30"Standard] (450~1,212) [30"Raised 250] (200~1,216) [40"Raised 250] mm
Distance Between Columns	2,200 mm (86.61 in)
Table Size	4,000 x 1,800 mm (157.48 x 70.87 in)
T-Slots	9 x 28 x 200 mm (9 x 1.1 x 7.87 in)
Max Table Load	15,000 kg (33,069 lb)
Rapid Traverse Xyz	15/20/15 m/min (591/787/591 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	32 tools; opt. 40 / 60 / 120 tools
Max Tool Weight	20 kg (44 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	37,000 kg (81,570 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Table load of 15,000 kg (33,069 lb)
4,000 x 1,800 mm (157.48 x 70.87 in) table with 4,200 mm (165.35 in) of X travel
Direct gear drive on X and a 2-step oil-cooled spindle gearbox
2,200 mm (86.61 in) of Y travel between columns 2,200 mm (86.61 in) apart
Up to 120 tools in the optional magazines

Limitations

Machine weight of 37,000 kg (81,570 lb) requires a substantial foundation
Standard Z travel is 762 mm (30 in)
X and Z rapids are 15 m/min
Spindle power is 35 kW (46.9 hp) unless the 45 kW (60.3 hp) option is taken

Best For

Automotive stamping dies and large mold halves Castings and weldments up to 15,000 kg (33,069 lb) Machine tool beds and large structural parts up to four metres

Frequently Asked Questions

01 What is the capacity of the NDC4022B?

The table is 4,000 x 1,800 mm (157.48 x 70.87 in) and carries 15,000 kg (33,069 lb). Travels are 4,200 mm (165.35 in) in X and 2,200 mm (86.61 in) in Y, with Z at 762 mm (30 in) or 1,016 mm (40 in) as an option.

02 How does it differ from the NDC4016B?

Width and load. The NDC4016B has 1,600 mm (62.99 in) of Y travel, a 4,000 x 1,500 mm (157.48 x 59.06 in) table rated for 12,000 kg (26,455 lb) and weighs 30,000 kg (66,138 lb). The NDC4022B has 2,200 mm (86.61 in) of Y and weighs 37,000 kg (81,570 lb).

03 What drives the spindle?

YCM's own gearbox, a 2-step gear transmission with oil cooling lubrication, on the 6,000 rpm spindle. A 10,000 rpm IDD spindle is the listed alternative. Power is 35 kW (46.9 hp), with 45 kW (60.3 hp) as an option, and the taper is BBT50.

04 Is there a version with an automatic angle head?

Yes. The NDC4022B-AHC has an automatically changed angle head for horizontal machining, 2,800 mm (110.2 in) of Y travel and a weight of 39,000 kg (85,979 lb), on the same 4,200 mm (165.35 in) X travel.
