YCM NSV106AMS

Q: How much does the YCM NSV106AMS cost?

The price estimate for the YCM NSV106AMS is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-nsv106ams#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

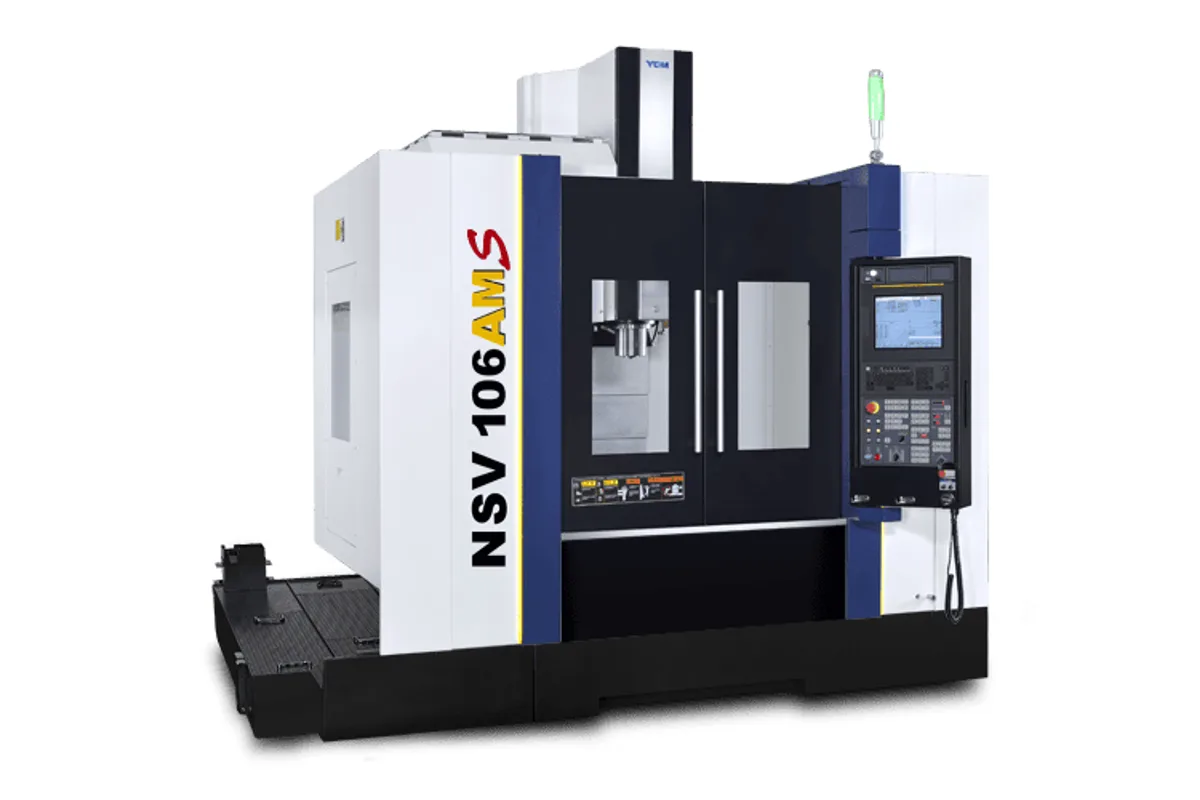

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

12,000 rpm; opt. 15,000 rpm

Spindle Taper

BBT40

Tool Capacity

24 tools; opt. 30 / 48 tools

Table Size

1,120 x 650 mm

Spindle Power

25 kW (34 HP); opt. 37 kW (50 HP)

x axis travel

1,020 mm (40.16 in)

How much does the YCM NSV106AMS cost?

Price estimate

Uncertain

We do not have a price for the YCM NSV106AMS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Top of the NSV106 line for mold work, the YCM NSV106AMS combines the heavier table of the S machine with the controlled axis speeds of the M machine. Travels are 1,020 mm (40.16 in) in X and 600 mm (23.62 in) in Y and Z; rapid traverse is 24 m/min (945 ipm) on every axis.

Power is the first difference from the NSV106AM. The standard spindle is rated 25 kW (34 HP) at 12,000 rpm, and 37 kW (50 HP) is available as an option, with 15,000 rpm as the optional speed. That is enough to rough a steel block and finish it on the same machine, which keeps the part in one setup.

The second difference is weight capacity. YCM rates the table for 1,000 kg (2,205 lb) and builds the frame with 45 mm roller guideways, large-diameter ball screws, six slide blocks on X and a one-piece motor housing. The Z axis rapids at 24 m/min here, while the NSV106AM is held to 16 m/min.

Thermal control comes as a package. A spindle cooling unit works on the headstock and micro oil-air lubrication on the bearings, and YCM describes the combination as well suited to the die and mold industry. The magazine is a 24-tool disk with 30 and 48-tool options. The 1,120 x 650 mm table has T-slots listed as 6 x 18 x 100 mm, and spindle nose to table is 100~700 mm (3.94~27.56 in).

Full Specifications

Parameter	Value
Max Spindle Speed	12,000 rpm; opt. 15,000 rpm
Spindle Motor Power	25 kW (34 HP); opt. 37 kW (50 HP)
Spindle Taper	BBT40
X Axis Travel	1,020 mm (40.16 in)
Y Axis Travel	600 mm (23.62 in)
Z Axis Travel	600 mm (23.62 in)
Distance Spindle Nose to Table	100~700 mm (3.94~27.56 in)
Table Size	1,120 x 650 mm
T-Slots	6 x 18 x 100 mm (6 x 0.71 x 3.94 in)
Max Table Load	1,000 kg (2,205 lb)
Rapid Traverse Xyz	24/24/24 m/min (945/945/945 ipm)
Cutting Feed Rate	1~20,000 mm/min (0.04~787.4 ipm)
Tool Capacity	24 tools; opt. 30 / 48 tools
Max Tool Weight	6 kg (13.2 lb)
Max Tool Size	ø76 x 300 mm (ø3 x 11.8 in); without adjacent tools ø125 x 300 mm (ø4.9 x 11.8 in)
Machine Weight	7,000 kg (15,432 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

25 kW (34 HP) spindle as standard with a 37 kW (50 HP) option
Table load of 1,000 kg (2,205 lb) for large mold blocks
Spindle cooling unit plus micro oil-air lubrication
45 mm roller guideways with large-diameter ball screws on 3 axes
Z rapid of 24 m/min (945 ipm), faster than the 16 m/min of the NSV106AM

Limitations

Rapids of 24 m/min (945 ipm) are half those of the NSV106AS
The 37 kW (50 HP) spindle and 15,000 rpm are options
Tool weight is limited to 6 kg (13.2 lb) by the BBT40 magazine
Machine weight is 7,000 kg (15,432 lb), the same as the lighter-rated models, so the higher table load does not come from added mass

Best For

Roughing and finishing steel mold blocks up to 1,000 kg (2,205 lb) in one setup Die and mold work that needs 25 kW (34 HP) or more at the spindle Long finishing runs that depend on spindle cooling

Frequently Asked Questions

01 What spindle power does the NSV106AMS offer?

The standard rating is 25 kW (34 HP) at 12,000 rpm on a BBT40 taper. The options column lists 37 kW (50 HP) and 15,000 rpm. A spindle cooling unit and micro oil-air lubrication are part of the spindle design.

02 How does the NSV106AMS compare with the NSV106AS?

Both carry 1,000 kg (2,205 lb) on the table. The NSV106AS is the fast machine, with 48/48/48 m/min rapids and 37 kW (50 HP) at 15,000 rpm as standard. The NSV106AMS is listed at 24/24/24 m/min with 25 kW (34 HP) standard.

03 What size workpiece fits?

The table is 1,120 x 650 mm and takes 1,000 kg (2,205 lb). Travels are 1,020 mm (40.16 in) in X, 600 mm (23.62 in) in Y and 600 mm (23.62 in) in Z, with 100~700 mm (3.94~27.56 in) from spindle nose to table.

04 Which magazines can be fitted?

24 tools as standard, with 30 or 48 tools as options. Tools may be ø76 x 300 mm with adjacent tools, or ø125 x 300 mm without adjacent tools, and weigh up to 6 kg (13.2 lb).
