YCM TV146B

Q: How much does the YCM TV146B cost?

The price estimate for the YCM TV146B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-tv146b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

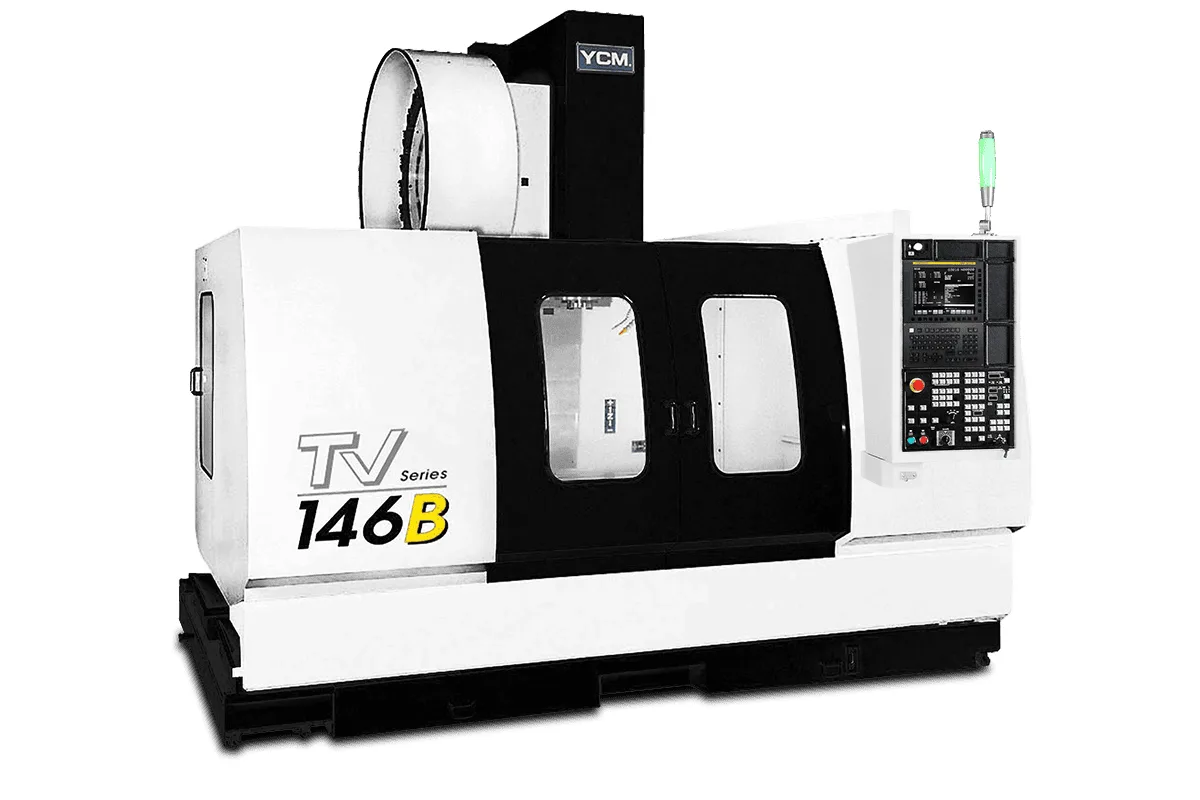

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

6,000 rpm; opt. 10,000 rpm

Spindle Taper

BT50; opt. BBT50

Tool Capacity

24 tools; opt. 32 / 40 tools

Table Size

1,500 x 600 mm (59.06 x 23.62 in)

Spindle Power

25 kW (33.5 HP); opt. 45 kW (60.4 HP)

x axis travel

1,400 mm (55.12 in)

How much does the YCM TV146B cost?

Price estimate

Uncertain

We do not have a price for the YCM TV146B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM TV146B is a 50-taper vertical machining center with 1,400 mm (55.12 in) of X travel, 620 mm (24.41 in) of Y and 630 mm (24.80 in) of Z. It is the mid-size machine among the TV models that share the 600 mm class saddle, and it carries 1,500 kg (3,307 lb) on a 1,500 x 600 mm (59.06 x 23.62 in) table.

YCM adds one line to this model's description that the TV116B does not have: the Y axis runs on 4 guideways. With a longer table hanging more mass over the saddle, the extra pair of ways spreads the load and keeps the cut stable at the ends of the X stroke. The guideways themselves are the series' square, hardened and ground type with Turcite-B, and the base is the T-shaped casting on which the table never overhangs.

Against the TV116B the weight rises from 11,200 kg (24,692 lb) to 12,300 kg (27,117 lb). The spindle is the same BT50 gearhead, 6,000 rpm with 25 kW (33.5 HP) in the table, and the same 10,000 rpm, 45 kW (60.4 HP) option. Axis speeds are also unchanged at 16 m/min (630 ipm).

Spindle nose to table is printed as 153~783 mm, followed by 403~1,033 mm in brackets. The page gives no explanation of the second range, so check with YCM before relying on it for tall workpieces. The swivel operation panel has a detachable handwheel for setup.

Full Specifications

Parameter	Value
Max Spindle Speed	6,000 rpm; opt. 10,000 rpm
Spindle Motor Power	25 kW (33.5 HP); opt. 45 kW (60.4 HP)
Spindle Taper	BT50; opt. BBT50
X Axis Travel	1,400 mm (55.12 in)
Y Axis Travel	620 mm (24.41 in)
Z Axis Travel	630 mm (24.80 in)
Distance Spindle Nose to Table	153~783 (403~1,033) mm
Table Size	1,500 x 600 mm (59.06 x 23.62 in)
T-Slots	5 x 18 x 100 mm (5 x 0.71 x 3.94 in)
Max Table Load	1,500 kg (3,307 lb)
Rapid Traverse Xyz	16/16/16 m/min (630/630/630 ipm)
Cutting Feed Rate	1~5,000 mm/min (0.04~196.9 ipm)
Tool Capacity	24 tools; opt. 32 / 40 tools
Max Tool Weight	20 kg (44 lb)
Max Tool Size	24T: ø110 x 350 (ø190 x 350) 30T/40T: ø120 x 350 (ø240 x 350) mm
Machine Weight	12,300 kg (27,117 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Table load of 1,500 kg (3,307 lb) on a 1,500 x 600 mm (59.06 x 23.62 in) table
Y axis equipped with 4 guideways
X travel of 1,400 mm (55.12 in) on the overhang-free T-base
BT50 gearhead spindle with a 45 kW (60.4 HP), 10,000 rpm option
24, 32 or 40-tool magazine for tools up to 20 kg (44 lb)

Limitations

Y travel of 620 mm (24.41 in) is short for a table 1,500 mm long
Rapid traverse is 16 m/min (630 ipm)
Cutting feed stops at 5,000 mm/min (196.9 ipm)
The bracketed spindle nose to table range is not explained on the page

Best For

Long steel parts such as rails, beams and machine slides Heavy cutting of workpieces up to 1,500 kg (3,307 lb) Shops that need 50-taper rigidity without the footprint of a double-column machine

Frequently Asked Questions

01 What are the travels of the TV146B?

X is 1,400 mm (55.12 in), Y is 620 mm (24.41 in) and Z is 630 mm (24.80 in). The table is 1,500 x 600 mm (59.06 x 23.62 in) and is rated for 1,500 kg (3,307 lb).

02 How does the TV146B compare with the TV116B?

It is longer and carries more. The TV116B has 1,100 mm (43.31 in) of X travel and weighs 11,200 kg (24,692 lb). The TV146B has 1,400 mm (55.12 in) of X, a 1,500 kg (3,307 lb) table rating, 4 guideways on Y and weighs 12,300 kg (27,117 lb).

03 What guideways does it use?

All axes have hardened, precision ground square guideways with a Turcite-B coating, finished by scraping. The Y axis has 4 guideways. The Z-axis headstock counterweight is secured by a guide bar to reduce vibration.

04 How fast is the spindle?

The standard BT50 gearhead spindle runs to 6,000 rpm, with 25 kW (33.5 HP) in the table. A 10,000 rpm spindle with 45 kW (60.4 HP) is optional, as is a BBT50 taper.
