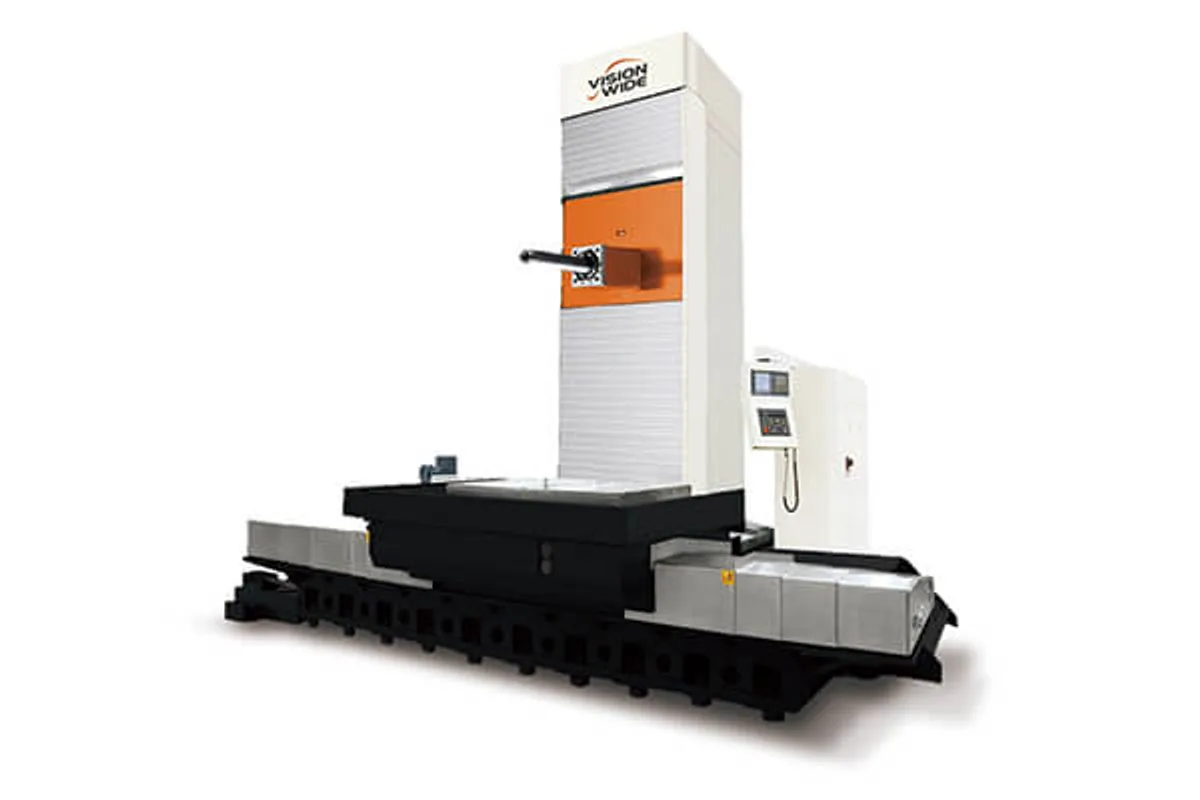

Vision Wide VBH-130-1416
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBH-130-1416 cost?
Price estimate
We do not have a price for the Vision Wide VBH-130-1416 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The 130 class starts with the Vision Wide VBH-130-1416, and the step from the 110 class is in every spindle row. Speed is 3,000 rpm, power 22 / 30 kW (29.5 / 40.2 hp), torque 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft), and the W-axis travel 700 mm (27.6 in).
Set against the VBH-110-1416, which has the same 1,400 x 1,600 mm (55.1 x 63.0 in) table, that is roughly half as much torque again in continuous duty and more quill stroke. Vision Wide's feature list has a short line for it: high torque selection.
The travels grow as well. Y is 2,000 mm with 2,500 mm optional. Z is 1,500 mm with 2,000 mm optional, where the 110 class has no Z option. X is 2,000 mm, or 2,500 mm. The table load is unchanged at 6,000 kg, or 10,000 kg (22,046 lb) with the option.
So this is a compact table under a large spindle. It suits parts that are not big but are hard work: steel valve bodies, forged housings, parts with large bores that need a rigid bar and plenty of torque. The VBT-130-1416 shares the table of figures and differs, by the maker's text, in using a Y-axis box way structure where the VBH is box in box.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Y Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Z Axis Travel | 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.) |
| W Axis Travel | 700 mm (27.6 in) |
| Table Size | 1,400 x 1,600 mm (55.1 x 63.0 in) |
| Max Table Load Central Area | 6,000 / 10,000 kg (13,228 / 22,046 lb) (Opt.) |
| Distance Spindle Nose to Table Center | -40~660~2,160 / -40~660~2,660 mm (-1.6~26.0~85.0 / -1.6~26.0~104.7 in) (Opt.) |
| Distance Spindle Center to Table Surface | 0~2,000 / 0~2,500 mm (0~78.7 / 0~98.4 in) (Opt.) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Power Cont 30 Min | 22 / 30 kW (29.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) of spindle torque
- 22 / 30 kW (29.5 / 40.2 hp) spindle power
- W-axis travel of 700 mm (27.6 in)
- Z travel of 1,500 mm with 2,000 mm optional
Limitations
- Top speed of 3,000 rpm, below the 3,500 rpm of the VBH-110-1416
- Standard table load of 6,000 kg; 10,000 kg (22,046 lb) is an option
- The page gives no spindle diameter or taper
Best For
Frequently Asked Questions
01
The VBH-110-1416 has 972 / 1,155 Nm (717 / 852 lb-ft), 3,500 rpm and a 550 mm (21.7 in) W axis. The VBH-130-1416 has 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft), 3,000 rpm and a 700 mm (27.6 in) W axis. The table is the same.
02
X 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.), Y 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.), Z 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.), W 700 mm (27.6 in).
03
A 1,400 x 1,600 mm (55.1 x 63.0 in) table with a load of 6,000 / 10,000 kg (13,228 / 22,046 lb) (Opt.) in the central area.
04
The page does not define it. In the table, the 130 models share a 3,000 rpm, 22 / 30 kW (29.5 / 40.2 hp) spindle and a 700 mm (27.6 in) W axis, and the 110 models, the VBH-110-1416 among them, share a lighter spindle and a 550 mm (21.7 in) W axis.
