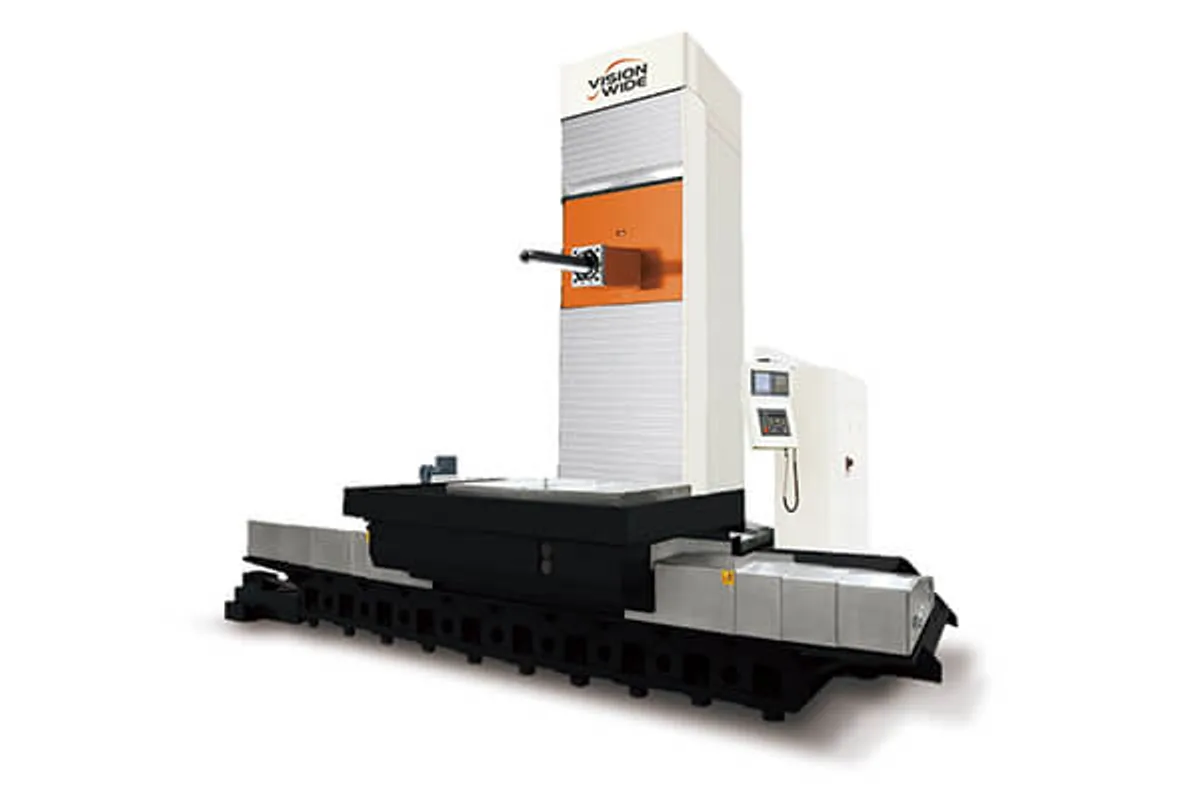

Vision Wide VBH-130-2530
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBH-130-2530 cost?
Price estimate
We do not have a price for the Vision Wide VBH-130-2530 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The largest VBH is the Vision Wide VBH-130-2530. Its table is 2,500 x 3,000 mm (98.4 x 118.1 in), the load is 40,000 kg as standard and 45,000 kg as an option, and X travel is 4,500 mm, or 5,000 mm.
This is the only model in the series with Y travel of 3,000 mm as standard and 3,500 mm as an option, so the spindle can work three metres or more above the table surface. Z is 2,000 mm, or 2,500 mm, and the W axis 700 mm (27.6 in). The row for spindle nose to table center begins at 165 mm: with everything extended the nose still stops short of the centre of the table, so bores on the centreline of a large part are reached with a bar or by turning the part.
A machine like this is bought for a known family of parts, and the published table answers only the geometric questions. It gives no feeds, no rapid traverse, no tool changer, no control, and no accuracy. All of those must come from the maker.
The spindle is the series' 130 class: 3,000 rpm, 22 / 30 kW (29.5 / 40.2 hp), 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft). The structure is box in box. The VBT-130-2530 has the same figures and a Y-axis box way design.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,500 / 5,000 mm (177.2 / 196.9 in) (Opt.) |
| Y Axis Travel | 3,000 / 3,500 mm (118.1 / 137.8 in) (Opt.) |
| Z Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| W Axis Travel | 700 mm (27.6 in) |
| Table Size | 2,500 x 3,000 mm (98.4 x 118.1 in) |
| Max Table Load Central Area | 40,000 / 45,000 kg (88,183 / 99,206 lb) (Opt.) |
| Distance Spindle Nose to Table Center | 165~865~2,865 / 165~865~3,365 mm (6.5~34.1~112.8 / 6.5~34.1~132.5 in) (Opt.) |
| Distance Spindle Center to Table Surface | 0~3,000 / 0~3,500 mm (0~118.1 / 0~137.8 in) (Opt.) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Power Cont 30 Min | 22 / 30 kW (29.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Table load of 40,000 kg, or 45,000 kg (99,206 lb) as an option
- X travel of 4,500 mm, or 5,000 mm optional
- Y travel of 3,000 mm, or 3,500 mm optional
- 2,500 x 3,000 mm (98.4 x 118.1 in) table
Limitations
- Spindle nose does not reach the table centre; the nearest position is 165 mm away
- No feeds, rapids, control or accuracy data on the page
- Spindle torque is the same 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) as on smaller 130 models
Best For
Frequently Asked Questions
01
The VBH-130-2530, with a 2,500 x 3,000 mm (98.4 x 118.1 in) table, a load of 40,000 / 45,000 kg (88,183 / 99,206 lb) (Opt.) and X travel of 4,500 / 5,000 mm (177.2 / 196.9 in) (Opt.).
02
Y is 3,000 / 3,500 mm (118.1 / 137.8 in) (Opt.) and Z is 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.). The W-axis travel is 700 mm (27.6 in).
03
The row reads 165~865~2,865 / 165~865~3,365 mm (6.5~34.1~112.8 / 6.5~34.1~132.5 in) (Opt.) for spindle nose to table center, so the nearest position is 165 mm from the centre.
04
The 130 class spindle: 3,000 rpm, 22 / 30 kW (29.5 / 40.2 hp) and 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft), with a W-axis travel of 700 mm (27.6 in).
