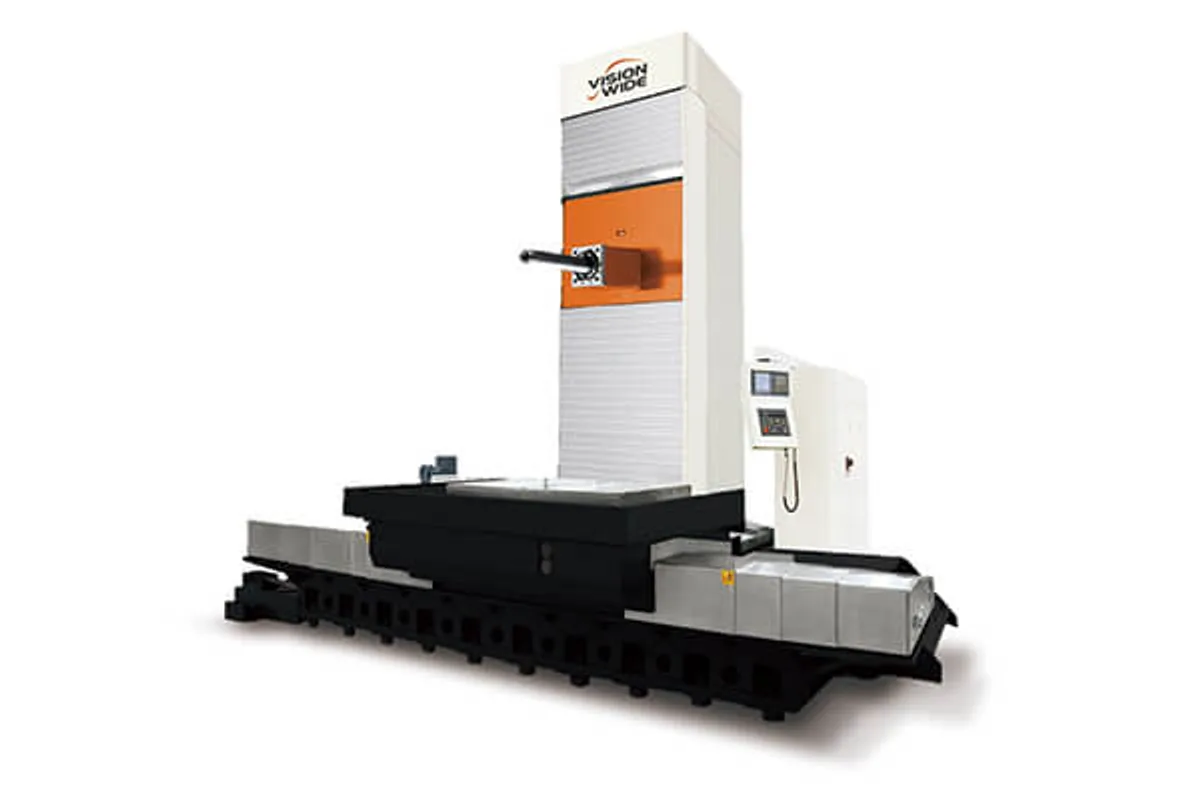

Vision Wide VBH-110-1250
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBH-110-1250 cost?
Price estimate
We do not have a price for the Vision Wide VBH-110-1250 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VBH-110-1250 is a horizontal boring and milling machine with a 1,250 x 1,250 mm (49.2 x 49.2 in) table and a W-axis boring spindle travel of 550 mm (21.7 in). It is the smallest of the VBH series, which the maker describes as a high stability, high precision box in box structure.
Box in box means the headstock is carried inside a closed frame and supported on both sides, instead of hanging on one face of a column. The cutting load then passes symmetrically into the structure, which is what a boring machine needs when a long bar is working deep in a casting.
Around the same table, the VBH has far longer strokes than the maker's VBE-110-1250. The VBE-110-1250 lists 1,600 mm (63.0 in) of X and 1,300 mm (51.2 in) of Y and Z. The VBH lists 2,000 mm of X, with 2,500 mm optional, 1,600 mm of Y with 2,000 mm optional, and 1,500 mm (59.1 in) of Z.
The spindle delivers 972 / 1,155 Nm (717 / 852 lb-ft) from 18.5 / 22 kW (24.8 / 29.5 hp) at up to 3,500 rpm. Table load is 5,000 kg (11,023 lb) in the central area. The VBT-110-1250 has an identical table of figures; the difference the maker states is a Y-axis box way structure in place of box in box.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Y Axis Travel | 1,600 / 2,000 mm (63.0 / 78.7 in) (Opt.) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| W Axis Travel | 550 mm (21.7 in) |
| Table Size | 1,250 x 1,250 mm (49.2 x 49.2 in) |
| Max Table Load Central Area | 5,000 kg (11,023 lb) |
| Distance Spindle Nose to Table Center | -125~425~1,925 mm (-4.9~16.7~75.8 in) |
| Distance Spindle Center to Table Surface | 0~1,600 / 0~2,000 mm (0~63.0 / 0~78.7 in) (Opt.) |
| Max Spindle Speed | 3,500 rpm |
| Spindle Power Cont 30 Min | 18.5 / 22 kW (24.8 / 29.5 hp) |
| Spindle Torque Cont 30 Min | 972 / 1,155 Nm (717 / 852 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Box in box structure, per the maker's description
- 972 / 1,155 Nm (717 / 852 lb-ft) of spindle torque
- X travel of 2,000 mm with 2,500 mm optional around a 1,250 x 1,250 mm (49.2 x 49.2 in) table
- W-axis travel of 550 mm (21.7 in)
Limitations
- Table load of 5,000 kg (11,023 lb) is the lowest in the series
- The page publishes no feed rates, rapids or tool magazine data
- Longer X and Y travels are options
Best For
Frequently Asked Questions
01
Their specification tables are identical in every row. The feature text differs in one line: the VBH is described as a box in box structure and the VBT as a Y-axis box way structure design.
02
X is 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.), Y is 1,600 / 2,000 mm (63.0 / 78.7 in) (Opt.), Z is 1,500 mm (59.1 in) and W is 550 mm (21.7 in). The longer X and Y figures are options.
03
972 / 1,155 Nm (717 / 852 lb-ft), continuous and short-time, with 18.5 / 22 kW (24.8 / 29.5 hp) and a top speed of 3,500 rpm.
04
Both have a 1,250 x 1,250 mm (49.2 x 49.2 in) table for 5,000 kg (11,023 lb). The VBE-110-1250 has 1,600 mm (63.0 in) of X and 1,300 mm (51.2 in) of Y and Z; the VBH-110-1250 starts at 2,000 mm of X and has 1,500 mm (59.1 in) of Z.
