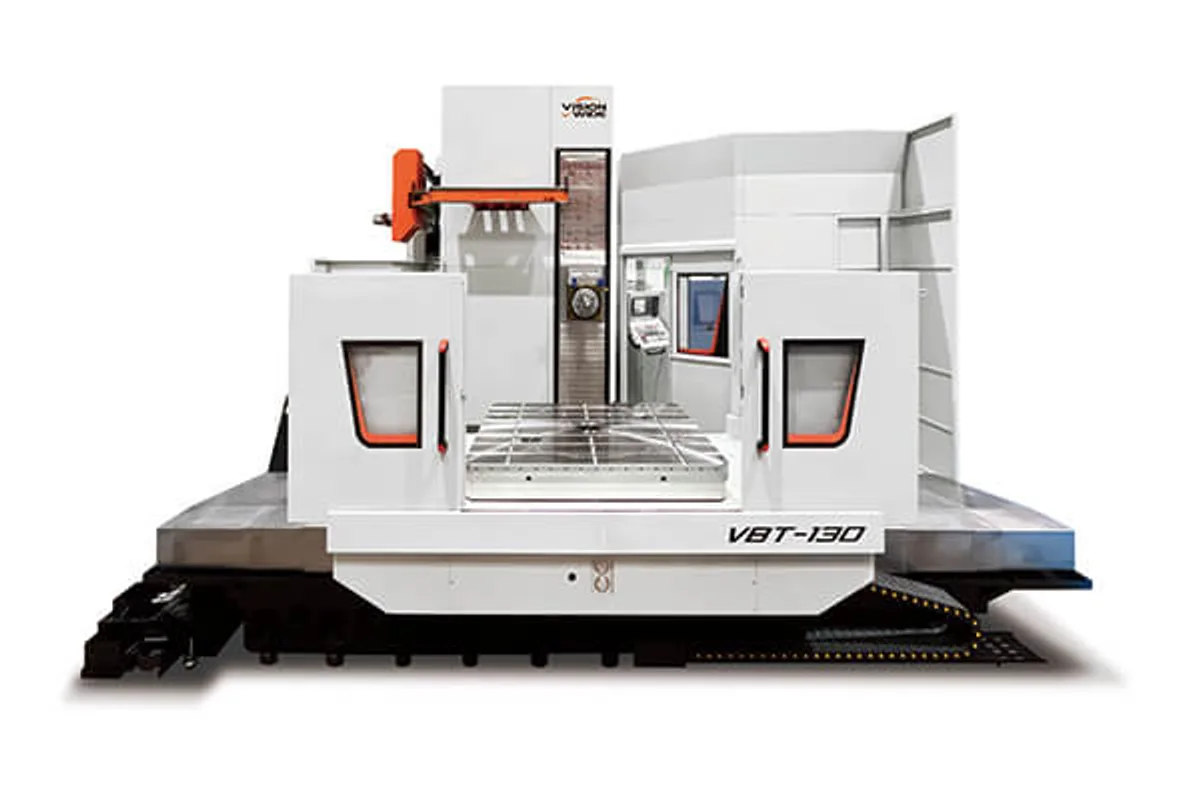

Vision Wide VBT-130-1416
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBT-130-1416 cost?
Price estimate
We do not have a price for the Vision Wide VBT-130-1416 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VBT-130-1416 puts the larger VBT spindle over the second-smallest table in the series. The table is 1,400 x 1,600 mm (55.1 x 63.0 in); the spindle is rated 22 / 30 kW (29.5 / 40.2 hp) and 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) at up to 3,000 rpm.
Who wants that much spindle on a modest table? A shop whose parts are dense and tough: forged steel bodies, hard-facing overlays, thick-walled hydraulic and valve components. Such parts fit a small table but load the spindle as heavily as much larger castings do. Vision Wide's list of features includes the phrase high torque selection, and this model is the most compact way into it.
The box way Y axis is relevant to the same work. A heavy horizontal cut pushes the headstock up or down the column, and a box way resists that with a large sliding area.
Travels are 2,000 mm in X and Y, each with 2,500 mm as an option, and 1,500 mm in Z with 2,000 mm as an option. W travel is 700 mm (27.6 in). Table load is 6,000 kg, or 10,000 kg (22,046 lb) optionally. The VBH-130-1416 lists identical figures.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Y Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Z Axis Travel | 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.) |
| W Axis Travel | 700 mm (27.6 in) |
| Table Size | 1,400 x 1,600 mm (55.1 x 63.0 in) |
| Max Table Load Central Area | 6,000 / 10,000 kg (13,228 / 22,046 lb) (Opt.) |
| Distance Spindle Nose to Table Center | -40~660~2,160 / -40~660~2,660 mm (-1.6~26.0~85.0 / -1.6~26.0~104.7 in) (Opt.) |
| Distance Spindle Center to Table Surface | 0~2,000 / 0~2,500 mm (0~78.7 / 0~98.4 in) (Opt.) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Power Cont 30 Min | 22 / 30 kW (29.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) on a compact 1,400 x 1,600 mm (55.1 x 63.0 in) table
- 22 / 30 kW (29.5 / 40.2 hp) spindle power
- Box way Y axis to resist heavy horizontal cuts
- 700 mm (27.6 in) of W travel
Limitations
- Table load of 6,000 kg unless the 10,000 kg (22,046 lb) option is taken
- Spindle speed tops out at 3,000 rpm
- No published difference in figures from the VBH-130-1416
Best For
Frequently Asked Questions
01
1,444 / 1,970 Nm (1,065 / 1,453 lb-ft), continuous and short-time. Power is 22 / 30 kW (29.5 / 40.2 hp) and top speed 3,000 rpm.
02
A 1,400 x 1,600 mm (55.1 x 63.0 in) table with 6,000 / 10,000 kg (13,228 / 22,046 lb) (Opt.) in the central area.
03
X and Y are each 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.). Z is 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.). W is 700 mm (27.6 in).
04
The VBT-110-1416 has the same table with a 3,500 rpm, 972 / 1,155 Nm (717 / 852 lb-ft) spindle and a 550 mm (21.7 in) W axis. The VBT-130-1416 has more torque, a longer W axis and optional longer Y and Z.
