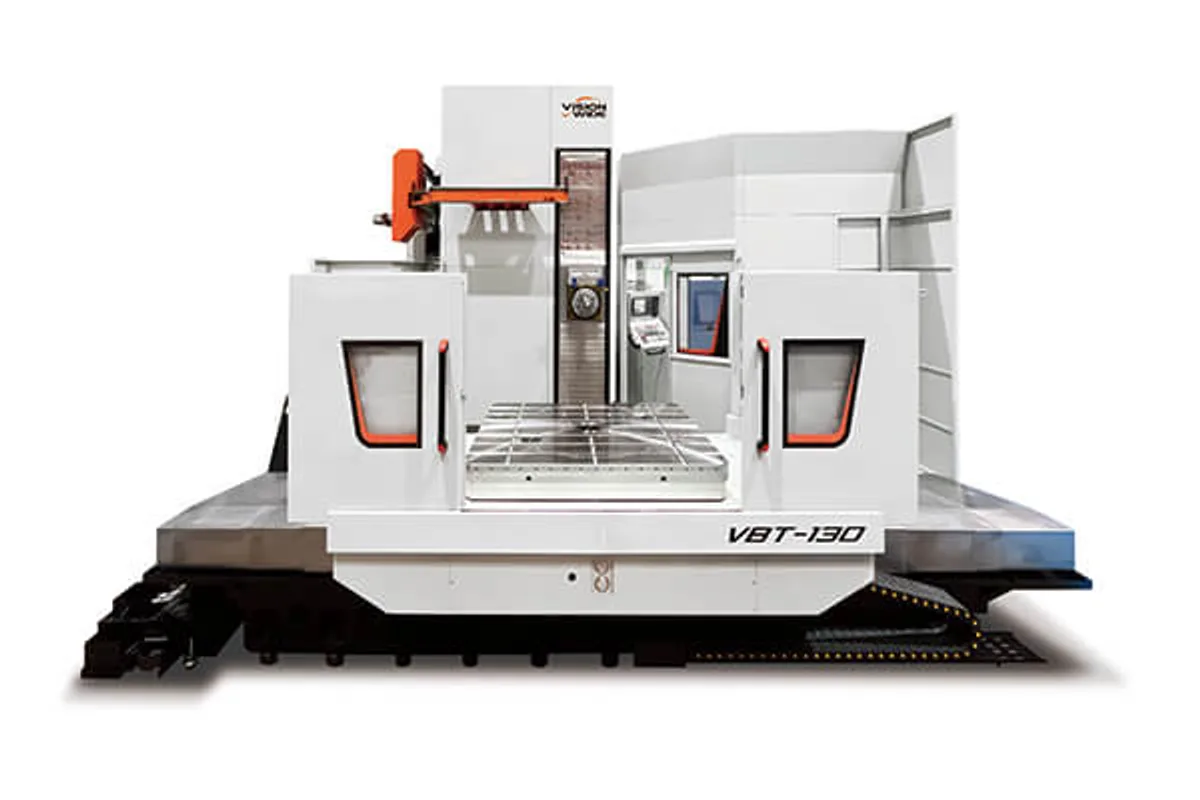

Vision Wide VBT-130-2525
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBT-130-2525 cost?
Price estimate
We do not have a price for the Vision Wide VBT-130-2525 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Thirty-five tonnes as standard and forty as an option: the Vision Wide VBT-130-2525 lists a table load of 35,000 / 40,000 kg (77,160 / 88,183 lb) (Opt.) on a 2,500 x 2,500 mm (98.4 x 98.4 in) table.
The maker qualifies the figure with the words central area. On a table this size that matters. A load placed at the middle bears evenly on the table's support; the same load at one edge does not, and the rating does not cover it. Heavy parts with an offset centre of mass, such as a frame with a thick flange on one side, should be discussed with the maker with a drawing in hand.
The working space matches the table. X travel is 3,500 mm, or 4,000 mm as an option. Y is 2,500 mm, or 3,000 mm. Z is 2,000 mm, or 2,500 mm, the longest Z offered in the series, shared with the VBT-130-2530. The spindle nose can be set from 165 mm to as much as 3,365 mm from the table centre with the long Z.
The spindle is the 130 class at 3,000 rpm, 22 / 30 kW (29.5 / 40.2 hp) and 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft), with a 700 mm (27.6 in) W axis. A VBH-130-2525 is listed with the same figures.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,500 / 4,000 mm (137.8 / 157.5 in) (Opt.) |
| Y Axis Travel | 2,500 / 3,000 mm (98.4 / 118.1 in) (Opt.) |
| Z Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| W Axis Travel | 700 mm (27.6 in) |
| Table Size | 2,500 x 2,500 mm (98.4 x 98.4 in) |
| Max Table Load Central Area | 35,000 / 40,000 kg (77,160 / 88,183 lb) (Opt.) |
| Distance Spindle Nose to Table Center | 165~865~2,865 / 165~865~3,365 mm (6.5~34.1~112.8 / 6.5~34.1~132.5 in) (Opt.) |
| Distance Spindle Center to Table Surface | 0~2,500 / 0~3,000 mm (0~98.4 / 0~118.1 in) (Opt.) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Power Cont 30 Min | 22 / 30 kW (29.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Table load of 35,000 kg, or 40,000 kg (88,183 lb) as an option
- 2,500 x 2,500 mm (98.4 x 98.4 in) table
- Z travel of 2,000 mm, or 2,500 mm optional
- X travel up to 4,000 mm with the option
Limitations
- Load rating applies to the central area of the table
- The spindle nose stops 165 mm short of the table centre
- Power is unchanged from smaller 130 models at 22 / 30 kW (29.5 / 40.2 hp)
Best For
Frequently Asked Questions
01
The maker's row is headed max. table load (central area) and gives 35,000 / 40,000 kg (77,160 / 88,183 lb) (Opt.). The rating is for a load placed at the middle of the table; no figure is given for off-centre loads.
02
X 3,500 / 4,000 mm (137.8 / 157.5 in) (Opt.), Y 2,500 / 3,000 mm (98.4 / 118.1 in) (Opt.), Z 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) and W 700 mm (27.6 in).
03
The row reads 165~865~2,865 / 165~865~3,365 mm (6.5~34.1~112.8 / 6.5~34.1~132.5 in) (Opt.). The nearest position is 165 mm from the centre.
04
The VBH-130-2525 has the same specification table and is described by Vision Wide as a box in box structure, where the VBT has a Y-axis box way structure design.
