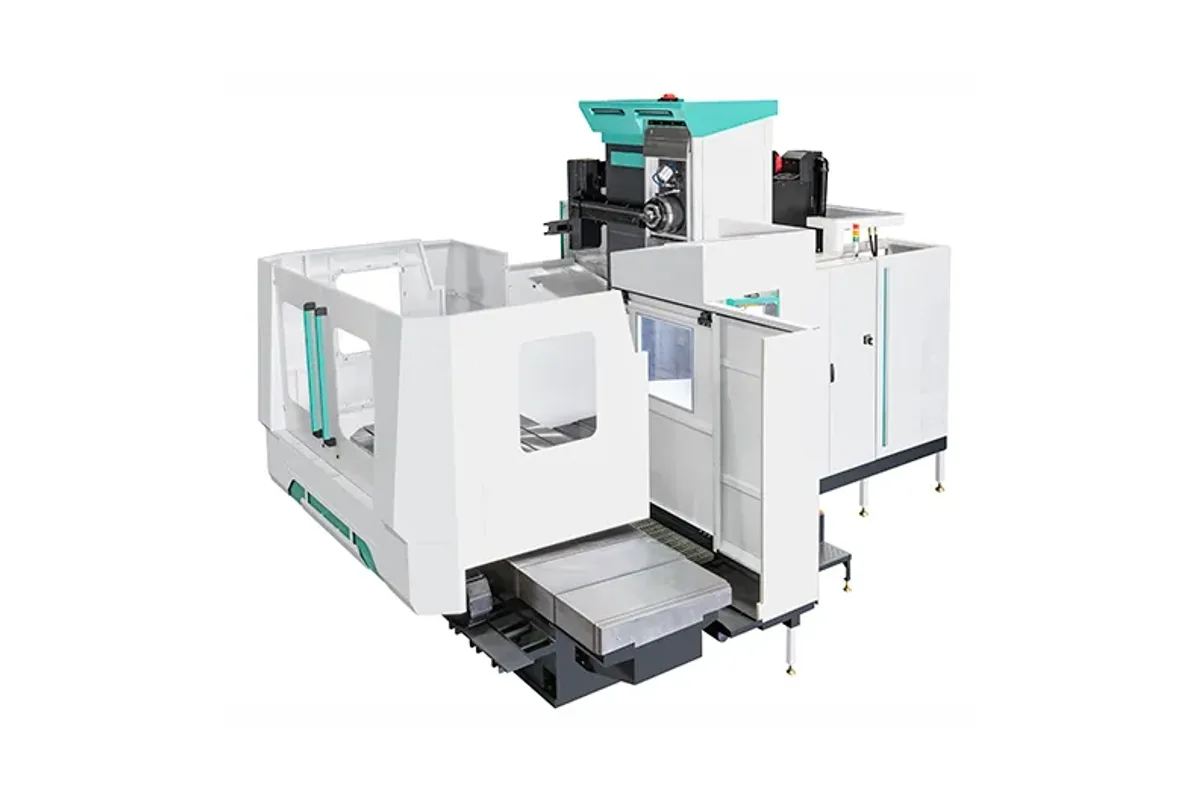

Feeler SHB-130XXRL
Image: feeler.com, Feeler
Key Specifications
Max Spindle
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Feeler SHB-130XXRL cost?
Price estimate
We do not have a price for the Feeler SHB-130XXRL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 20 ton table load makes the Feeler SHB-130XXRL the heaviest machine on Feeler's SHB page. Its table is 3,200 x 1,800 mm (126.0 x 70.9 in), long and comparatively narrow, where the other SHB tables are close to square.
That shape points to long workpieces: machine beds, crane and excavator structures, long gearbox housings, turbine and generator frames. Such parts are usually set lengthwise and machined on their long sides and ends, and a rectangular table supports them along their full length without the overhang a square table would leave.
The spindle is the 130 mm (5.1 in) boring spindle, at 2,000 rpm or 2,700 rpm optional, with W-axis travel of 700 mm (27.6 in), or 900 mm. X travel is 3,000-4,000 mm, Y is 1,800 mm with options up to 2,500 mm in brackets, and Z is 1,500 mm, or 1,700 mm. These are the same ranges as on the SHB-130XXRM. A table 3,200 mm long is nearly as long as the minimum X travel, so check with the maker how much of the table the spindle covers at each X option and whether the table can rotate fully with a long part on it.
Feeler describes the SHB series as a modular design with optical scale feedback on all three axes and the rotary table, hand-scraped table joint surfaces and a dual-lead worm and gear table drive that holds angular precision under heavy load. Rapids are 10/12/12/5 m/min and the magazine holds 40 tools, or 60 as the option. No power, torque, taper or foundation data is published.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 3,200 x 1,800 mm (126.0 x 70.9 in) |
| Max Table Load | 20 ton |
| X Axis Travel | 3,000-4,000 mm (118.1-157.5 in) |
| Y Axis Travel | 1,800 (2,000/2,300/2,500) mm (70.9 (78.7/90.6/98.4) in) |
| Z Axis Travel | 1,500 (1,700) mm (59.1 (66.9) in) |
| W Axis Travel | 700 (900) mm (27.6 (35.4) in) |
| Boring Spindle Diameter | 130 mm (5.1 in) |
| Max Spindle Speed | 2,000 (2,700) rpm |
| Rapid Traverse Xyzw | 10/12/12/5 m/min (394/472/472/197 ipm) |
| Tool Capacity | 40 (60) |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 20 ton table load, the highest in the SHB series
- 3,200 x 1,800 mm (126.0 x 70.9 in) table for long workpieces
- 130 mm boring spindle with 700 mm of W travel, or 900 mm
- Dual-lead worm and gear table drive for angular precision under heavy load
- Y travel options up to 2,500 mm
Limitations
- X travel range of 3,000-4,000 mm is close to the 3,200 mm table length
- Spindle speed of 2,000 rpm, or 2,700 rpm optional
- Travels are no larger than on the SHB-130XXRM
- No spindle power, torque, taper or foundation requirements are published
Best For
Frequently Asked Questions
01
20 ton, on a 3,200 x 1,800 mm (126.0 x 70.9 in) table. Feeler's table gives the unit as ton without saying metric or short; for a Taiwanese maker metric is likely, but confirm it.
02
A W-axis boring spindle of 130 mm diameter. Speed is listed as 2,000 (2,700) rpm under the heading Spindle Speed (Optional). W travel is 700 (900) mm at a rapid rate of 5 m/min.
03
X is 3,000-4,000 mm. Y is 1,800 mm, with 2,000/2,300/2,500 mm in brackets. Z is 1,500 mm, with 1,700 mm in brackets. The XX in the model code appears to stand for the X travel chosen.
04
Feeler states that all three axes and the rotary table are equipped with optical scale feedback systems, ensuring reliable axial accuracy and long-term machining stability.
