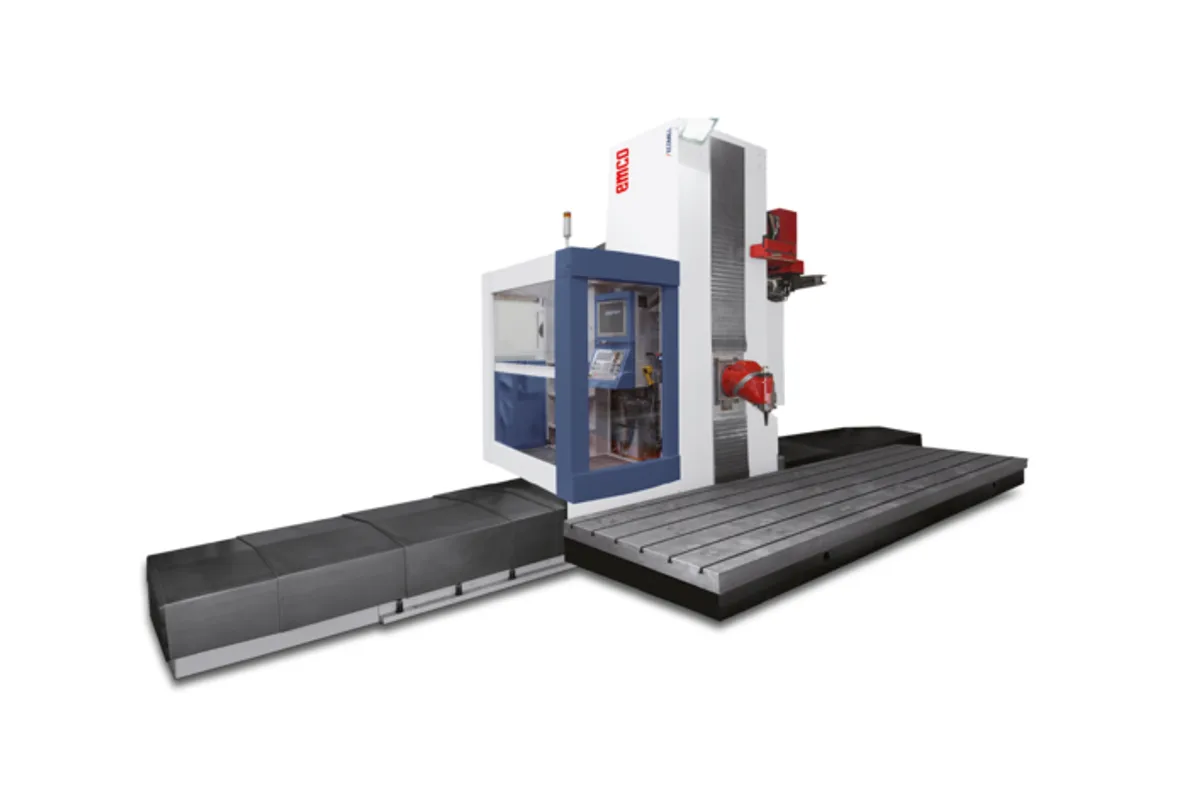

Emco Ecomill
Image: emco-world.com, Emco
Key Specifications
Tool Capacity
x axis travel
y axis travel
z axis travel
feed rate
spindle motor
How much does the Emco Ecomill cost?
Price estimate
We do not have a price for the Emco Ecomill that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
In the middle of Emco's travelling-column line sits the Ecomill, a 3+2 axis machine with a horizontal ram. Its column travels 4000 - 14000 mm along the bed, the ram extends 1,300 mm (51.2 in) and the vertical axis comes in two heights, 2000 / 2500 mm.
Emco builds the column as a symmetric structure for stiffness and guides the ram box-in-box. The basic machine includes a chip conveyor. A single spindle motor is listed, 60 kW, 600 Nm, and it drives a universal milling head rated 38 / 48 kW (S1/S6) and 600 / 750 Nm (S1/S6) over 15 ÷ 8000 rpm. Automatic millesimal positioning means the head indexes in very fine steps to any angle and is then clamped for the cut, which is how a 3+2 machine reaches inclined faces.
Finishing gets a different answer here than on the Ecomill Plus. Instead of a separate high-speed head, the Ecomill takes a high-speed spindle in a special support on the universal head: 40.5 / 53 kW, 35.4 / 46 Nm (S1 / S6), 18000 rpm, HSK-A63. It is a light spindle, suitable for small cutters in mould cavities, and it leaves the mechanical head in place for everything else.
The tool magazine is listed with 40 / 60 / 80 pockets, and the product page mentions a tower changer of up to 203 pockets as the larger alternative. Feed is 30 m/min (1,181 ipm). Through-spindle coolant is 20 l/min, 20/40/60 bar. The control is a Heidenhain or a Siemens.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4000 - 14000 mm |
| Y Axis Travel | 1,300 mm (51.2 in) |
| Z Axis Travel | 2000 / 2500 mm |
| Feed Rate | 30 m/min (1,181 ipm) |
| Spindle Motor | 60 kW, 600 Nm |
| Coolant Low Pressure | 28 l/min, 6 bar |
| Coolant Through Spindle | 20 l/min, 20/40/60 bar |
| Universal Head Option Speed | 6000 ÷ 8000 rpm |
| Offset Spindle Head Speed | 3,000 rpm |
| Orthogonal Head Speed | 6,000 rpm |
| High Speed Spindle in Special Support | 18,000 rpm |
| Tool Capacity | 40 / 60 / 80 pockets |
| Universal Head Power | 38 / 48 kW (S1/S6) |
| Universal Head Torque | 600 / 750 Nm (S1/S6) |
| Universal Head Speed | 15 ÷ 8000 rpm |
| Universal Head Tool Taper | ISO 50 DIN 69871 (options: BIG PLUS, HSK-A100 DIN 69893) |
| High Speed Spindle 40 5 53 Kw | 40.5 / 53 kW, 35.4 / 46 Nm (S1 / S6), 18000 rpm, HSK-A63 |
Specifications sourced from emco-world.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Bed lengths from 4000 to 14000 mm of longitudinal travel
- Universal head with 600 / 750 Nm (S1/S6) over 15 ÷ 8000 rpm
- High-speed spindle in special support: 18,000 rpm
- Symmetric column and box-in-box ram
- Chip conveyor included in the basic machine
Limitations
- Cross travel of 1,300 mm (51.2 in)
- No automatic head magazine is listed, unlike the Ecomill Plus
- Only the 60 kW, 600 Nm spindle motor appears in the brochure table
- The high-speed spindle has 40.5 / 53 kW, 35.4 / 46 Nm (S1 / S6), 18000 rpm, HSK-A63, which restricts it to light finishing
Best For
Frequently Asked Questions
01
The longitudinal axis travels 4000 - 14000 mm, the cross axis 1,300 mm (51.2 in) and the vertical axis 2000 / 2500 mm. All move at a feed rate of 30 m/min (1,181 ipm).
02
A universal milling head with automatic millesimal positioning, rated 38 / 48 kW (S1/S6) and 600 / 750 Nm (S1/S6) at 15 ÷ 8000 rpm. The standard taper is listed as ISO 50 DIN 69871 (options: BIG PLUS, HSK-A100 DIN 69893).
03
Yes, through a high-speed spindle in a special support for the universal milling head. The brochure lists it as 40.5 / 53 kW, 35.4 / 46 Nm (S1 / S6), 18000 rpm, HSK-A63.
04
The Ecomill S is listed with a vertical travel of 2,000 mm (78.7 in), a tool magazine of 40 / 60 pockets and a head speed of 15 ÷ 6000 rpm. The Ecomill offers 2000 / 2500 mm vertically, 40 / 60 / 80 pockets and 15 ÷ 8000 rpm.
