Vision Wide VBE-110-1250

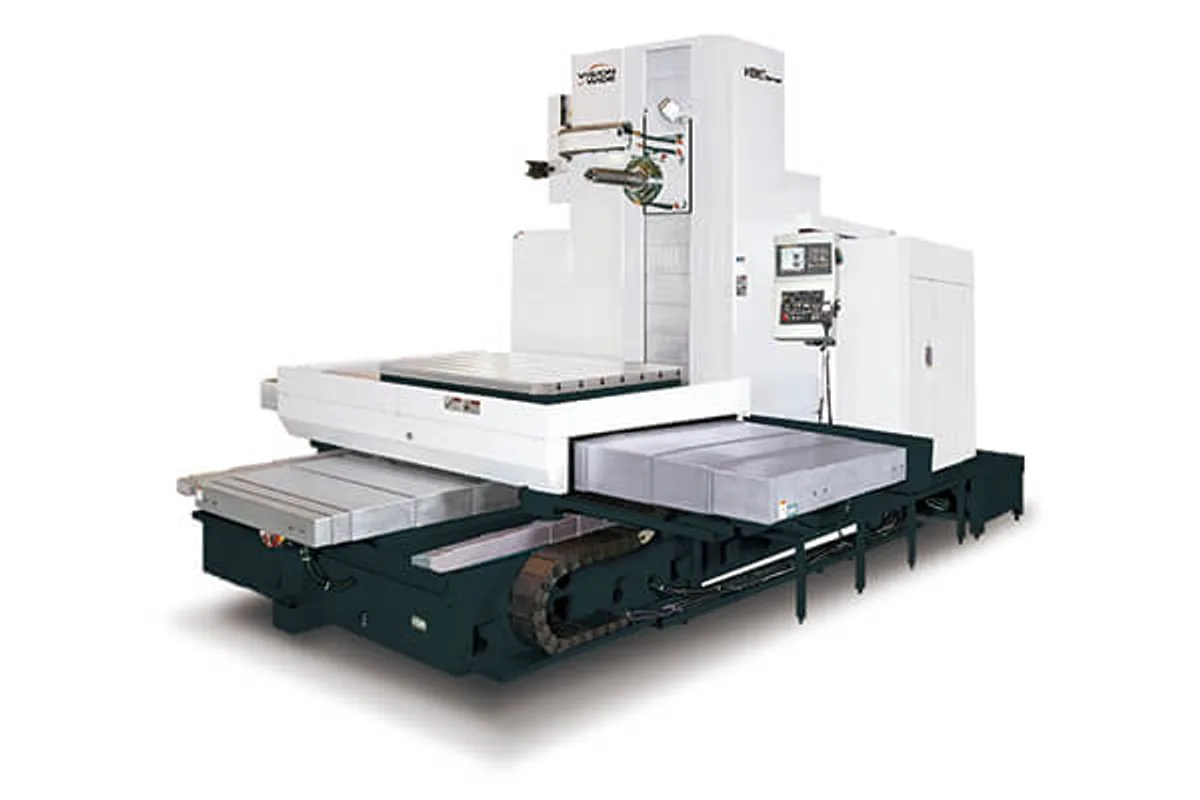

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBE-110-1250 cost?
Price estimate
We do not have a price for the Vision Wide VBE-110-1250 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VBE-110-1250 is a horizontal boring and milling machine with a 1,250 x 1,250 mm (49.2 x 49.2 in) table, a fixed column and a W axis of 550 mm (21.7 in). Travels are 1,600 mm (63.0 in) in X and 1,300 mm (51.2 in) in both Y and Z.
Vision Wide describes the VBE as a cross slider design in which the X axis rides on four guide ways, two box ways and two linear guides, and says the X, Y and Z guides are box way. The column does not move. For a boring mill that layout puts the table mass on a wide support and leaves the spindle side stiff, which is what long boring bars need.
The spindle is slow and strong: 3,500 rpm, 18.5 / 22 kW (24.8 / 29.5 hp) and 972 / 1,155 Nm (717 / 852 lb-ft) of torque, continuous and short-time. Torque is published for this series, which the VHM and VHT tables do not do. The maker points the W axis at deep hole and groove work in parts such as gear boxes and mold bases.
Reach is given by two rows. The distance from spindle nose to table center is -125~425~1,725 mm (-4.9~16.7~67.9 in), and from spindle center to table surface 0~1,300 mm (0~51.2 in). The table carries 5,000 kg (11,023 lb) in its central area. The published table has no tool magazine, feed or rapid traverse rows for the VBE, so those are questions for the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 1,300 mm (51.2 in) |
| Z Axis Travel | 1,300 mm (51.2 in) |
| W Axis Travel | 550 mm (21.7 in) |
| Table Size | 1,250 x 1,250 mm (49.2 x 49.2 in) |
| Max Table Load Central Area | 5,000 kg (11,023 lb) |
| Distance Spindle Nose to Table Center | -125~425~1,725 mm (-4.9~16.7~67.9 in) |
| Distance Spindle Center to Table Surface | 0~1,300 mm (0~51.2 in) |
| Max Spindle Speed | 3,500 rpm |
| Spindle Power Cont 30 Min | 18.5 / 22 kW (24.8 / 29.5 hp) |
| Spindle Torque Cont 30 Min | 972 / 1,155 Nm (717 / 852 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 972 / 1,155 Nm (717 / 852 lb-ft) of spindle torque at up to 3,500 rpm
- 550 mm (21.7 in) W axis for deep hole and groove work
- Fixed column with box way guides on X, Y and Z
- X axis on four guide ways, two box ways and two linear guides
- 5,000 kg (11,023 lb) central-area load on a 1,250 x 1,250 mm (49.2 x 49.2 in) table
Limitations
- Spindle speed is limited to 3,500 rpm
- No rapid traverse, cutting feed or tool magazine figures are published for the series
- X travel of 1,600 mm (63.0 in) is the shortest of Vision Wide's boring mills
- Spindle power is 18.5 / 22 kW (24.8 / 29.5 hp)
Best For
Frequently Asked Questions
01
X is 1,600 mm (63.0 in), Y is 1,300 mm (51.2 in), Z is 1,300 mm (51.2 in) and the W axis travels 550 mm (21.7 in). The table is 1,250 x 1,250 mm (49.2 x 49.2 in).
02
The table lists 972 / 1,155 Nm (717 / 852 lb-ft), continuous and short-time, with 18.5 / 22 kW (24.8 / 29.5 hp) of power and a spindle speed of 3,500 rpm.
03
It gives 550 mm (21.7 in) of additional travel along the spindle axis. Vision Wide says the W axis gives better performance in deep hole processing and groove processing, and names gear boxes and mold bases as examples.
04
The VBE-110-1416 has 2,000 mm (78.7 in) of X, 1,600 mm (63.0 in) of Y, a 1,400 x 1,600 mm (55.1 x 63.0 in) table and 8,000 kg (17,637 lb) of load. The VBE-110-1250 has 1,600 mm (63.0 in), 1,300 mm (51.2 in), a 1,250 x 1,250 mm (49.2 x 49.2 in) table and 5,000 kg (11,023 lb). Z, W and the spindle are the same.
