Vision Wide VBH-110-1618

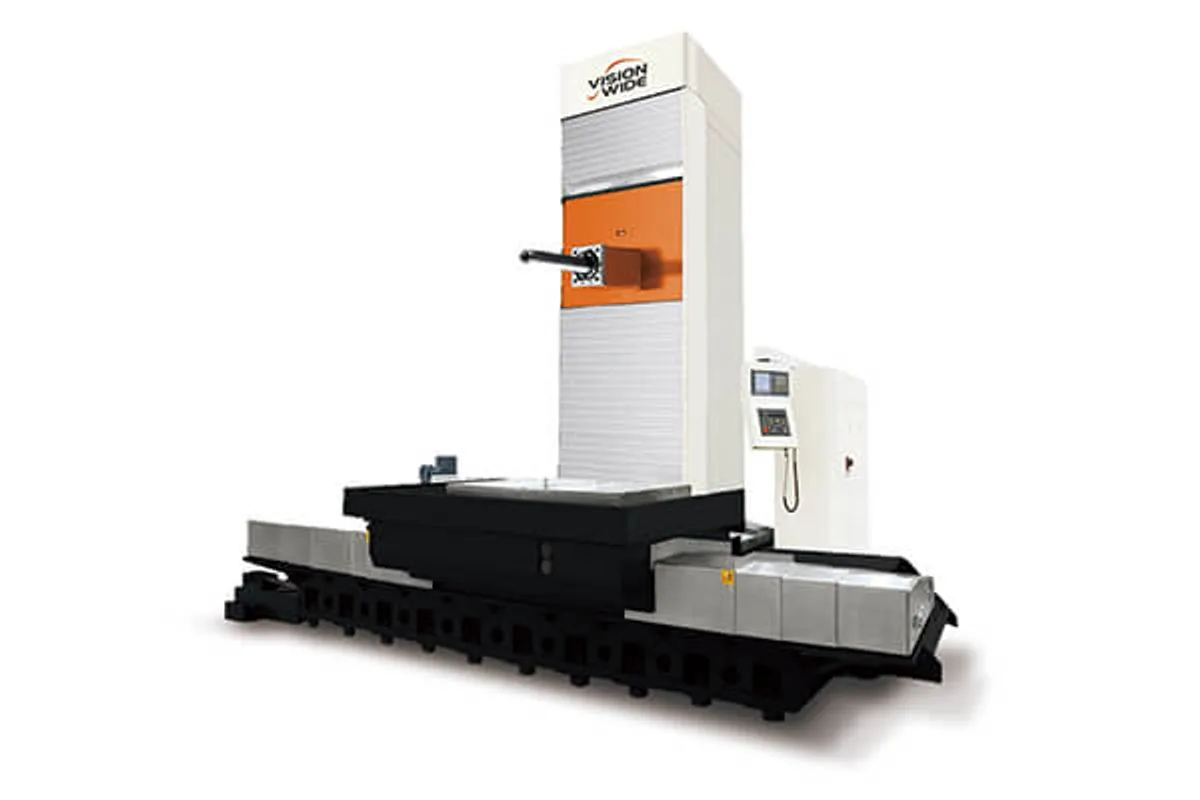

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBH-110-1618 cost?
Price estimate
We do not have a price for the Vision Wide VBH-110-1618 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VBH-110-1618 carries the heaviest loads of the 110 class: 15,000 kg as standard and 20,000 kg as an option, on a 1,600 x 1,800 mm (63.0 x 70.9 in) table. The row reads 15,000 / 20,000 kg (33,069 / 44,092 lb) (Opt.), central area.
One row is simpler here than on the smaller 110 models. Y travel is 2,000 mm (78.7 in), with no shorter standard and longer option; the VBH-110-1416 lists 1,600 mm with 2,000 mm optional. X is 2,000 mm, or 2,500 mm, and Z is 1,500 mm (59.1 in).
The pairing of a heavy table with the lighter spindle is the thing to weigh. Torque is 972 / 1,155 Nm (717 / 852 lb-ft) on 18.5 / 22 kW (24.8 / 29.5 hp). That is ample for boring and for moderate face milling, and it reaches 3,500 rpm, the higher top speed in the series. A part of fifteen or twenty tonnes that needs large-diameter face mills and heavy roughing would be better matched by the VBH-130-1618, which has the same table and load under a 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) spindle.
The W axis travels 550 mm (21.7 in). The VBT-110-1618 lists the same figures with a Y-axis box way structure.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| W Axis Travel | 550 mm (21.7 in) |
| Table Size | 1,600 x 1,800 mm (63.0 x 70.9 in) |
| Max Table Load Central Area | 15,000 / 20,000 kg (33,069 / 44,092 lb) (Opt.) |
| Distance Spindle Nose to Table Center | -25~525~2,025 mm (-1.0~20.7~79.7 in) |
| Distance Spindle Center to Table Surface | 0~2,000 mm (0~78.7 in) |
| Max Spindle Speed | 3,500 rpm |
| Spindle Power Cont 30 Min | 18.5 / 22 kW (24.8 / 29.5 hp) |
| Spindle Torque Cont 30 Min | 972 / 1,155 Nm (717 / 852 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Table load of 15,000 kg, or 20,000 kg (44,092 lb) with the option
- 1,600 x 1,800 mm (63.0 x 70.9 in) table
- Y travel of 2,000 mm (78.7 in) as standard
- 3,500 rpm top speed, the higher of the two spindle classes
Limitations
- Torque of 972 / 1,155 Nm (717 / 852 lb-ft) is light for a 20,000 kg table
- Z travel is fixed at 1,500 mm (59.1 in) with no option
- W-axis travel of 550 mm (21.7 in), against 700 mm (27.6 in) on the VBH-130-1618
Best For
Frequently Asked Questions
01
15,000 / 20,000 kg (33,069 / 44,092 lb) (Opt.) in the central area. The standard rating is 15,000 kg and the optional one 20,000 kg.
02
Table and load are the same. The VBH-110-1618 has 972 / 1,155 Nm (717 / 852 lb-ft) at up to 3,500 rpm. The VBH-130-1618 has 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) at up to 3,000 rpm and a 700 mm (27.6 in) W axis.
03
X is 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.), Y is 2,000 mm (78.7 in), Z is 1,500 mm (59.1 in) and W is 550 mm (21.7 in).
04
Vision Wide describes the VBH series as a high stability and high precision box in box structure. The VBT-110-1618, with identical table figures, is described with a Y-axis box way structure design.
