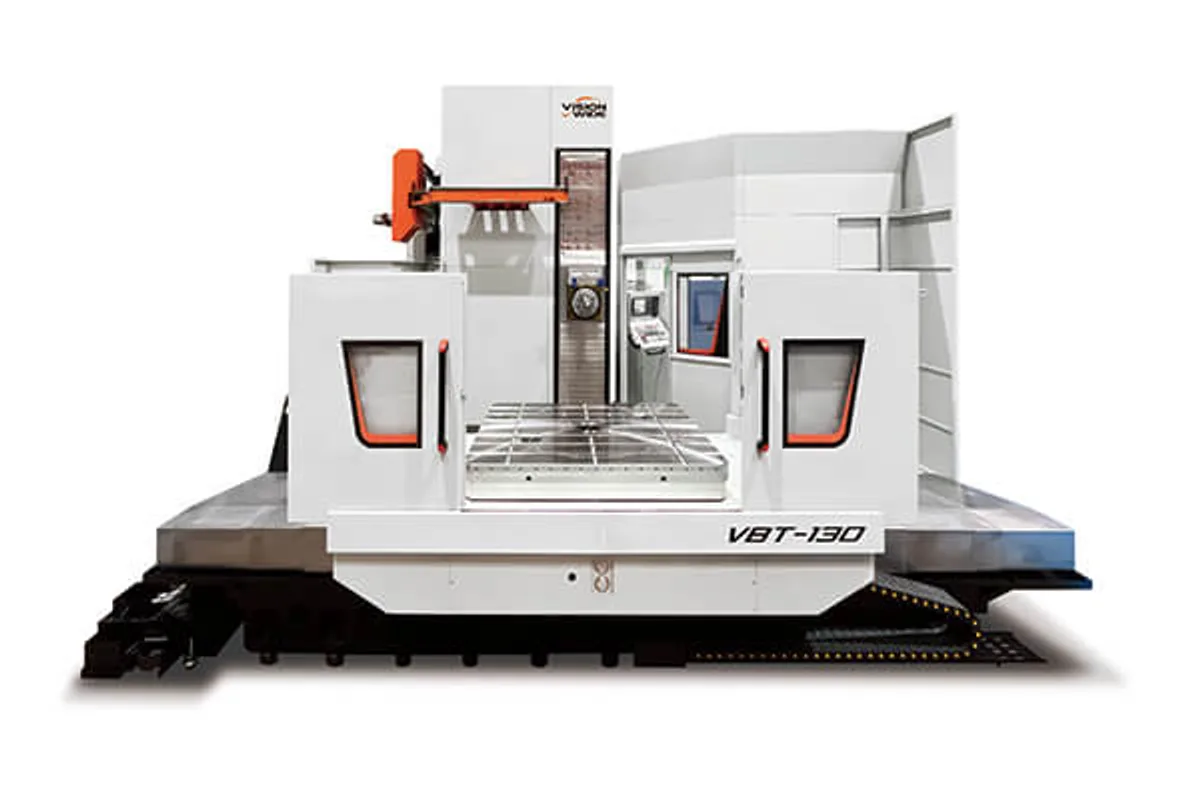

Vision Wide VBT-130-2025
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
How much does the Vision Wide VBT-130-2025 cost?
Price estimate
We do not have a price for the Vision Wide VBT-130-2025 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The headstock of the Vision Wide VBT-130-2025 climbs a tall column: Y travel is 2,500 mm, with 3,000 mm as an option. The way that axis is guided is the one design point the maker singles out for the VBT, calling it a high stability and high precision Y-axis box way structure design.
On a horizontal boring mill the Y axis has the hardest job. It carries the whole headstock against gravity, and every cut pushes the spindle up, down or sideways against it. At the top of a 3,000 mm stroke the column is at its most flexible, and a wide box way with sliding contact holds the headstock firmly there and damps the cut. For face milling high on a tall part, that is where the benefit shows.
The table is 2,000 x 2,500 mm (78.7 x 98.4 in). It carries 20,000 kg, or 30,000 kg as an option, in the central area. X travel is 3,000 mm, or 3,500 mm, Z is 1,500 mm, or 2,000 mm, and the W axis 700 mm (27.6 in).
Spindle torque is 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) at up to 3,000 rpm. The sister VBH-130-2025 lists identical figures and is described as box in box, a different answer to the same problem.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 / 3,500 mm (118.1 / 137.8 in) (Opt.) |
| Y Axis Travel | 2,500 / 3,000 mm (98.4 / 118.1 in) (Opt.) |
| Z Axis Travel | 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.) |
| W Axis Travel | 700 mm (27.6 in) |
| Table Size | 2,000 x 2,500 mm (78.7 x 98.4 in) |
| Max Table Load Central Area | 20,000 / 30,000 kg (44,092 / 66,138 lb) (Opt.) |
| Distance Spindle Nose to Table Center | 60~760~2,260 / 60~760~2,760 mm (2.4~29.9~89.0 / 2.4~29.9~108.7 in) (Opt.) |
| Distance Spindle Center to Table Surface | 0~2,500 / 0~3,000 mm (0~98.4 / 0~118.1 in) (Opt.) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Power Cont 30 Min | 22 / 30 kW (29.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Y-axis box way design for a tall 2,500 mm, or 3,000 mm, stroke
- Table load of 20,000 kg, or 30,000 kg (66,138 lb) optional
- 2,000 x 2,500 mm (78.7 x 98.4 in) table
- 22 / 30 kW (29.5 / 40.2 hp) and 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft)
Limitations
- No stiffness or accuracy figures support the structural claim
- The 30,000 kg load and the longer travels are options
- Spindle speed of 3,000 rpm
Best For
Frequently Asked Questions
01
It is how Vision Wide describes the VBT series: a high stability and high precision Y-axis box way structure design. The page gives no further detail or figures for it.
02
X 3,000 / 3,500 mm (118.1 / 137.8 in) (Opt.), Y 2,500 / 3,000 mm (98.4 / 118.1 in) (Opt.), Z 1,500 / 2,000 mm (59.1 / 78.7 in) (Opt.), W 700 mm (27.6 in).
03
20,000 / 30,000 kg (44,092 / 66,138 lb) (Opt.) in the central area, on a 2,000 x 2,500 mm (78.7 x 98.4 in) table.
04
The published figures do not separate them. The VBT has a Y-axis box way structure and the VBH a box in box structure, by the maker's description. Ask Vision Wide for the stiffness and accuracy data of each.
