Vision Wide VBH-130-2525

Q: How much does the Vision Wide VBH-130-2525 cost?

The price estimate for the Vision Wide VBH-130-2525 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-vbh-130-2525#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

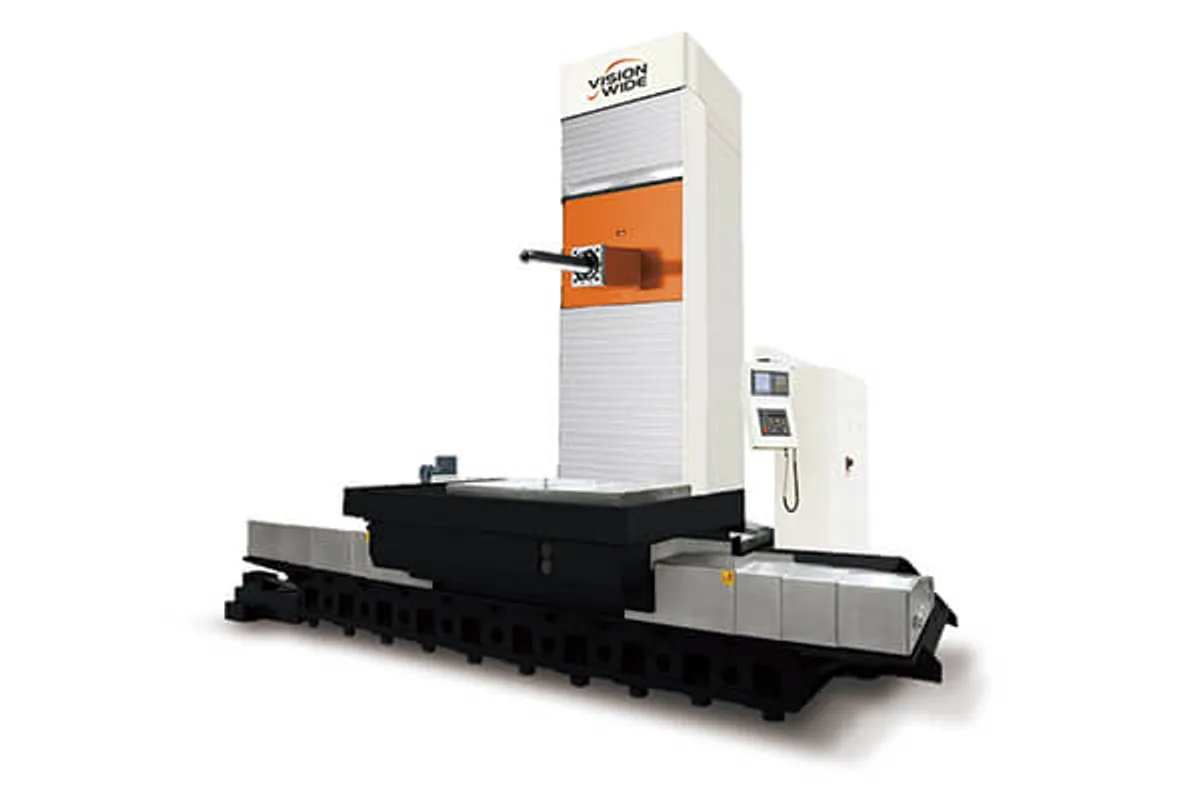

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

3,000 rpm

Table Size

2,500 x 2,500 mm (98.4 x 98.4 in)

x axis travel

3,500 / 4,000 mm (137.8 / 157.5 in) (Opt.)

y axis travel

2,500 / 3,000 mm (98.4 / 118.1 in) (Opt.)

z axis travel

2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.)

w axis travel

700 mm (27.6 in)

How much does the Vision Wide VBH-130-2525 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide VBH-130-2525 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A square 2,500 x 2,500 mm (98.4 x 98.4 in) table rated for 35,000 kg, or 40,000 kg as an option, makes the Vision Wide VBH-130-2525 the first of the very heavy VBH models. The load row reads 35,000 / 40,000 kg (77,160 / 88,183 lb) (Opt.), central area.

Everything around the table is scaled up to suit. X travel is 3,500 mm with 4,000 mm optional. Z travel is 2,000 mm with 2,500 mm optional, half a metre more than on the VBH-130-2025 in each case. Y is 2,500 mm, or 3,000 mm.

The spindle is not scaled up. It remains the 130 class unit: 22 / 30 kW (29.5 / 40.2 hp), 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft), 3,000 rpm, with a 700 mm (27.6 in) W axis. On its heaviest part the machine therefore works at the same metal removal rate as the smallest 130 model does on a light one. That is normal for boring mills, where capacity is about holding and reaching the part, but it should be understood when estimating cycle times.

For work of this weight the maker's claim of a high stability box in box structure carries its full meaning. The VBT-130-2525 lists the same figures with a Y-axis box way structure design.

Full Specifications

Parameter	Value
X Axis Travel	3,500 / 4,000 mm (137.8 / 157.5 in) (Opt.)
Y Axis Travel	2,500 / 3,000 mm (98.4 / 118.1 in) (Opt.)
Z Axis Travel	2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.)
W Axis Travel	700 mm (27.6 in)
Table Size	2,500 x 2,500 mm (98.4 x 98.4 in)
Max Table Load Central Area	35,000 / 40,000 kg (77,160 / 88,183 lb) (Opt.)
Distance Spindle Nose to Table Center	165~865~2,865 / 165~865~3,365 mm (6.5~34.1~112.8 / 6.5~34.1~132.5 in) (Opt.)
Distance Spindle Center to Table Surface	0~2,500 / 0~3,000 mm (0~98.4 / 0~118.1 in) (Opt.)
Max Spindle Speed	3,000 rpm
Spindle Power Cont 30 Min	22 / 30 kW (29.5 / 40.2 hp)
Spindle Torque Cont 30 Min	1,444 / 1,970 Nm (1,065 / 1,453 lb-ft)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Table load of 35,000 kg, or 40,000 kg (88,183 lb) as an option
Square 2,500 x 2,500 mm (98.4 x 98.4 in) table
Z travel of 2,000 mm, or 2,500 mm optional
X travel of 3,500 mm, or 4,000 mm optional

Limitations

Spindle power of 22 / 30 kW (29.5 / 40.2 hp) is the same as on the smallest 130 model
Y travel is no longer than on the VBH-130-2025
The page gives no table drive, indexing or rotation data

Best For

Very heavy castings and fabrications up to 40,000 kg (88,183 lb) Large square or round parts on a 2,500 mm table Deep parts needing up to 2,500 mm of Z

Frequently Asked Questions

01 How much weight can the Vision Wide VBH-130-2525 carry?

35,000 / 40,000 kg (77,160 / 88,183 lb) (Opt.) in the central area: 35,000 kg standard, 40,000 kg optional. The table is 2,500 x 2,500 mm (98.4 x 98.4 in).

02 What are the VBH-130-2525 travels?

X 3,500 / 4,000 mm (137.8 / 157.5 in) (Opt.), Y 2,500 / 3,000 mm (98.4 / 118.1 in) (Opt.), Z 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) and W 700 mm (27.6 in).

03 Does the VBH-130-2525 have a more powerful spindle than smaller models?

No. All 130 class models list 22 / 30 kW (29.5 / 40.2 hp), 1,444 / 1,970 Nm (1,065 / 1,453 lb-ft) and 3,000 rpm, including the VBH-130-1416.

04 Does the VBH-130-2525 table rotate?

The specification table does not say. It lists table size and load but no B axis, indexing increment or table speed. Ask Vision Wide what table drive is supplied.
