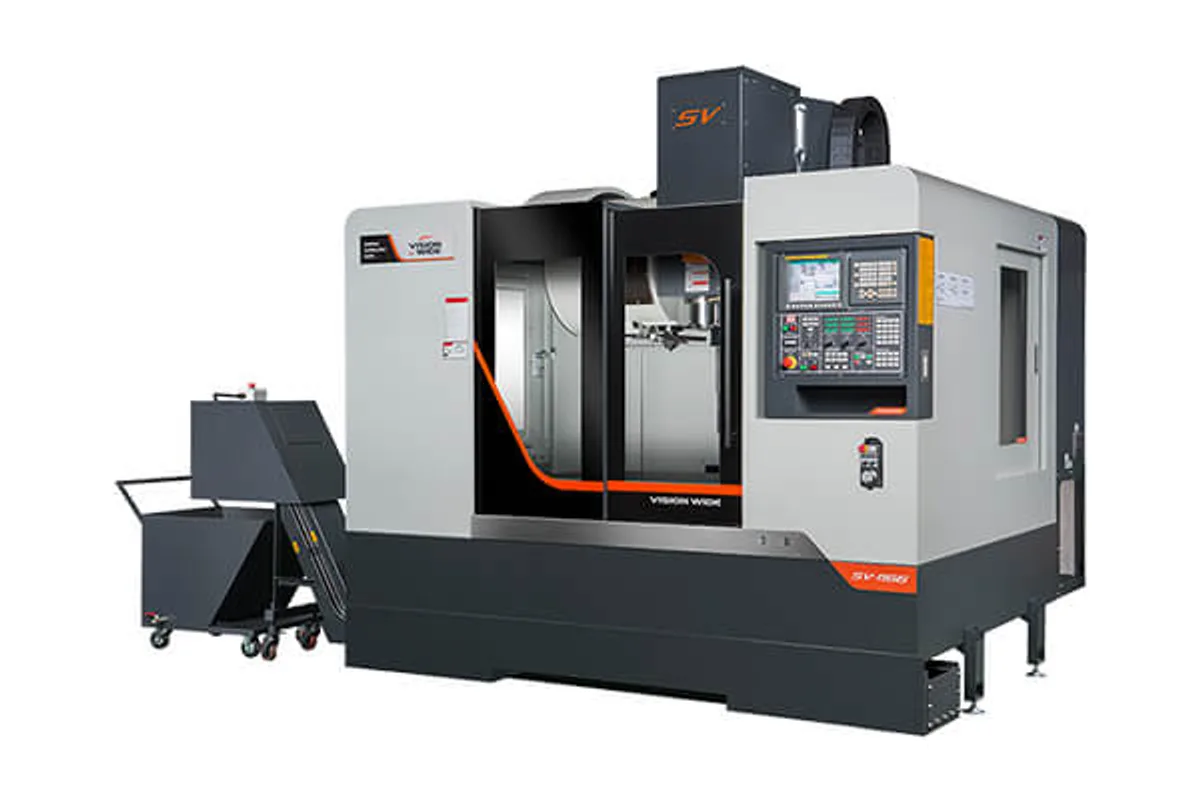

Vision Wide SV-1266
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide SV-1266 cost?
Price estimate
We do not have a price for the Vision Wide SV-1266 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Among the mid-size SV models the Vision Wide SV-1266 is the fast one. It pairs 1,200 mm (47.2 in) of X travel and 600 mm (23.6 in) of Y and Z with rapids of 36 / 36 / 30 m/min, the higher of the two rapid ratings in the series.
The table is long for the travel: 1,400×610 mm (55.1×24.0 in), longer than the X stroke, and it is rated for 800 kg (1,764 lb). That overhang gives room for clamps and for a tailstock when a rotary table is fitted, though the spindle cannot reach the full length of it.
Two neighbours bracket it. The SV-1166 has the same Y, Z and spindle but 1,100 mm (43.3 in) of X, a 700 kg (1,543 lb) table and 30 / 30 / 24 m/min rapids. The SV-1270 keeps the 1,200 mm (47.2 in) X and the fast rapids, with 700 mm (27.6 in) of Y, 650 mm (25.6 in) of Z and a 1,200 kg (2,646 lb) table. If the parts are plates and light fixtures, the SV-1266 covers them without paying in floor space for the deeper saddle.
Spindle figures are the series baseline, 7.5 / 11 kW (10.1 / 14.8 hp) with 10,000 rpm standard. For finishing with small cutters, 12,000 / 15,000 rpm spindles are optional, and so is XYZ axis linear scale feedback; absolute pulse coder feedback on the three axes is what the standard machine uses.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Table Size | 1,400×610 mm (55.1×24.0 in) |
| Max Table Load | 800 kg (1,764 lb) |
| Max Spindle Speed | 10,000 rpm (STD); 12,000 / 15,000 rpm |
| Spindle Power Cont 30 Min | 7.5 / 11 kW (10.1 / 14.8 hp) |
| Cutting Feed Rate | 1-10 m/min |
| Rapid Traverse Xyz | 36 / 36 / 30 m/min |
| Tool Capacity | 24 / 32 pcs |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 36 / 36 / 30 m/min rapids on a 1,200 mm (47.2 in) X travel machine
- 1,400×610 mm (55.1×24.0 in) table, longer than the 1,200 mm (47.2 in) X travel
- 800 kg (1,764 lb) table load, above the 700 kg (1,543 lb) of the SV-1166
- XYZ-axis absolute pulse coder feedback as standard, linear scales as an option
Limitations
- Y travel is 600 mm (23.6 in); the SV-1270 offers 700 mm (27.6 in) on the same X
- The table is longer than the travel, so its ends are outside the spindle's reach
- Table load of 800 kg (1,764 lb) is well short of the 1,200 kg (2,646 lb) of the SV-1270
- Base spindle power is 7.5 / 11 kW (10.1 / 14.8 hp)
Best For
Frequently Asked Questions
01
X is 1,200 mm (47.2 in), Y is 600 mm (23.6 in) and Z is 600 mm (23.6 in). Rapid traverse is 36 / 36 / 30 m/min on X, Y and Z, and the cutting feed range is 1-10 m/min.
02
Both have 1,200 mm (47.2 in) of X and 36 / 36 / 30 m/min rapids. The SV-1270 has 700 mm (27.6 in) of Y, 650 mm (25.6 in) of Z and a 1,200 kg (2,646 lb) table. The SV-1266 has 600 mm (23.6 in) on Y and Z and an 800 kg (1,764 lb) table, so it suits lighter work.
03
The maximum table load is 800 kg (1,764 lb) on a 1,400×610 mm (55.1×24.0 in) table. Count the vises, any rotary table and the workpiece together against that figure.
04
Not as standard. The standard accessory list gives XYZ-axis absolute pulse coder feedback. XYZ axis linear scale feedback is on the optional list, along with auto tool length measurement.
