Vision Wide SF-5126
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way
z axis travel linear way
max table load
How much does the Vision Wide SF-5126 cost?
Price estimate
We do not have a price for the Vision Wide SF-5126 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
No SF with a vertical type tool change covers more area than the Vision Wide SF-5126. X travel is 5,100 mm (200.8 in), Y travel is 2,600 mm (102.4 in), and the 5,300×2,100 mm (208.7×82.7 in) table is rated for 18,000 kg (39,683 lb).
A machine this size is usually justified by one family of parts: large stamping dies, wind or press components, long welded frames. It helps to check each of them against three figures. First the weight, with fixtures, against the 18,000 kg limit. Second the height: standard Z travel is 800 mm, and the 1,020 mm and 1,000 mm strokes are options that depend on the head. Third the length, because the table is longer than the X stroke and the last part of each end is clamping room, not cutting room.
The cutting figures are the SF standard. Feed runs 1-10,000 mm/min and rapids are 20 m/min in X and Y with 15 m/min in Z. The spindle is 18.5/22 kW (24.8/29.5 hp), or 22/26 kW (29.5/34.9 hp) as an option.
The SF-5133 lists the same Y travel and table with a floor-standing tool changer in place of the vertical type.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,100 mm (200.8 in) |
| Y Axis Travel | 2,600 mm (102.4 in) |
| Z Axis Travel Box Way | 800 / 1,020 mm (31.5 / 40.2 in) (Opt.) |
| Z Axis Travel Linear Way | 800 / 1,000 mm (31.5 / 39.4 in) (Opt.) |
| Table Size | 5,300×2,100 mm (208.7×82.7 in) |
| Max Table Load | 18,000 kg (39,683 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 6,000/4,000 rpm(Opt.) |
| Spindle Speed Linear Way Direct Driven | 10,000 rpm(Opt.)/ 12,000 rpm(Opt.) |
| Spindle Speed Linear Way Built in | 10,000 rpm(Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | XY：20 m/min / Z：15 m/min |
| Tool Capacity Vertical Tool Change | 32/40 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 5,100 mm (200.8 in) by 2,600 mm (102.4 in) of X and Y travel
- 18,000 kg (39,683 lb) table load
- 22/26 kW (29.5/34.9 hp) spindle motor option
- Table ends beyond the X stroke give clamping room
Limitations
- Standard Z travel is 800 mm
- Tool capacity of 32/40 pcs(Opt.) is small for long unattended cycles
- Rapids of 20 m/min over 5,100 mm (200.8 in) of X
Best For
Frequently Asked Questions
01
5,100 mm (200.8 in) in X and 2,600 mm (102.4 in) in Y. Z is listed as 800 / 1,020 mm (31.5 / 40.2 in) (Opt.) for the box way head and 800 / 1,000 mm (31.5 / 39.4 in) (Opt.) for the linear way head.
02
Travels, table and load match in Vision Wide's tables. The SF-5126 lists a vertical type tool change with 32/40 pcs(Opt.), while the SF-5133 lists floor-standing tool changers, including a vertical-horizontal type with up to 60 pcs(Opt.).
03
The maximum table load is 18,000 kg (39,683 lb) on a 5,300×2,100 mm (208.7×82.7 in) table. Fixture weight counts toward that figure.
04
With options, yes. The standard spindle is a 6,000 rpm gear type. Direct-driven spindles at 10,000 rpm and 12,000 rpm and a 10,000 rpm built-in spindle are listed for the linear way head, and cutting feed reaches 10,000 mm/min.
More from Vision Wide
Other Vertical Machining Centers (VMC)
Pinnacle QV179
Tsugami VA4-II

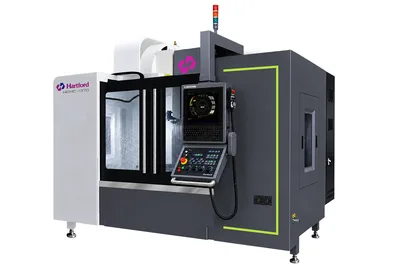

Hartford HCMC-1370
