YCM NMV106A

Q: How much does the YCM NMV106A cost?

The price estimate for the YCM NMV106A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-nmv106a#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

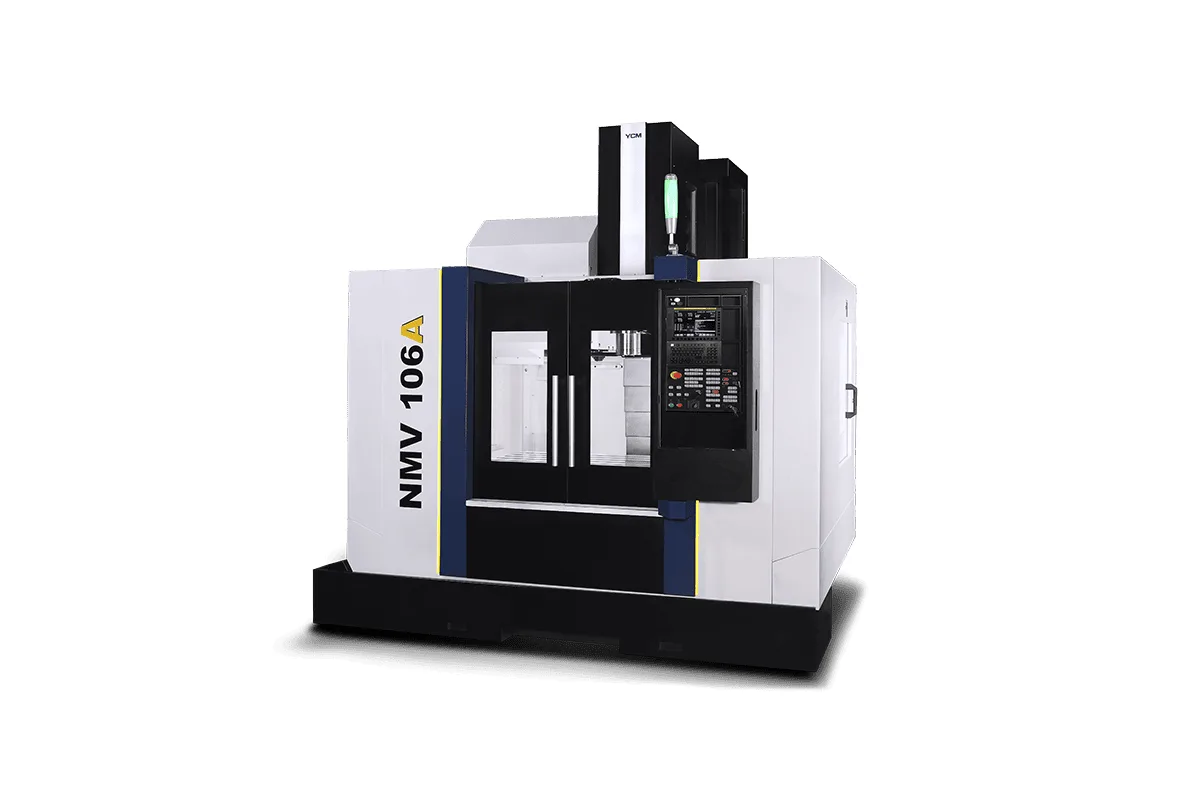

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

12,000 (8,000/10,000 GEAR BOX) rpm

Spindle Taper

BBT40

Tool Capacity

24 tools; opt. 30 / 40 tools

Table Size

1,120 x 600 mm (44.09 x 23.62 in)

Spindle Power

18.5 kW (25 HP); opt. 18.5/18.5 kW (25/25 HP)

x axis travel

1,020 mm (40.16 in)

How much does the YCM NMV106A cost?

Price estimate

Uncertain

We do not have a price for the YCM NMV106A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM NMV106A is the larger of YCM's two boxway vertical machining centers: 1,020 mm (40.16 in) of X travel with 600 mm (23.62 in) in both Y and Z, a BBT40 spindle, and sliding box guideways under every axis.

Compared with the NMV76A the saddle is wider, with an 800 mm Y-axis span, and the table grows to 1,120 x 600 mm (44.09 x 23.62 in) with an 800 kg (1,764 lb) rating. Weight goes up to 6,500 kg (14,330 lb). The rapids do not drop with the size: 36 m/min in X and Y and 24 m/min in Z, quick for a machine on sliding ways.

Shops usually buy a boxway machine for steel, and the spindle options reflect that. Beside the standard 12,000 rpm direct-drive spindle there is an 8,000 rpm spindle with gear transmission rated at 45.04 kgf-m, which YCM recommends for casting and titanium machining, and a 10,000 rpm geared spindle. Each is listed at 18.5 kW (25 HP). A symmetrical headstock spreads thermal expansion evenly, and a cushion takes the tool unclamping force off the spindle bearings.

The magazine starts at 24 tools and expands to 30 or 40. A tool can be ø90 x 300 mm with neighbours or ø140 x 300 mm without, and weigh 6 kg. For spindle nose to table the page prints 80~680 mm and a bracketed 330~930 mm, without saying which configuration the second range describes.

Full Specifications

Parameter	Value
Max Spindle Speed	12,000 (8,000/10,000 GEAR BOX) rpm
Spindle Motor Power	18.5 kW (25 HP); opt. 18.5/18.5 kW (25/25 HP)
Spindle Taper	BBT40
X Axis Travel	1,020 mm (40.16 in)
Y Axis Travel	600 mm (23.62 in)
Z Axis Travel	600 mm (23.62 in)
Distance Spindle Nose to Table	80~680 (330~930) mm
Table Size	1,120 x 600 mm (44.09 x 23.62 in)
T-Slots	5 x 18 x 100 mm
Max Table Load	800 kg (1,764 lb)
Rapid Traverse Xyz	36/36/24 m/min
Cutting Feed Rate	1~20,000 mm/min (0.04~787 ipm)
Tool Capacity	24 tools; opt. 30 / 40 tools
Max Tool Weight	6 kg (13.2 lb)
Max Tool Size	ø90 x 300 mm (ø3.54 x 11.81 in); without adjacent tools ø140 x 300 mm (ø5.51 x 11.81 in)
Machine Weight	6,500 kg (14,330 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Box guideways on three axes with an 800 mm Y-axis span under the saddle
Table load of 800 kg (1,764 lb) on a 1,120 x 600 mm (44.09 x 23.62 in) table
Optional 8,000 rpm gear spindle with 45.04 kgf-m of torque
Magazine expandable from 24 to 30 or 40 tools
Symmetrical headstock design to even out thermal expansion

Limitations

Spindle power is 18.5 kW (25 HP) on every listed spindle
Tool weight limit is 6 kg, a BBT40 magazine figure that restricts large cutters
Sliding ways rapid at 36 m/min, below the 48 m/min of the NSV106A on the same travel
The bracketed spindle nose to table range is not explained

Best For

Heavy milling of steel and cast iron parts up to 800 kg (1,764 lb) Titanium and casting work with the 8,000 rpm gear spindle Mold bases and plates within 1,020 x 600 mm

Frequently Asked Questions

01 Why choose the NMV106A over a linear-guide machine of the same size?

For the guideways. The NMV106A has box guideways on three axes, which YCM describes as having high shock absorption and wear resistance and as best for heavy cutting. The NSV106A, on linear guideways, is the faster machine, with 48/48/32 m/min rapids.

02 What torque does the gear spindle deliver?

YCM states that the optional 8,000 rpm spindle with gear transmission reaches 45.04 kgf-m and calls it perfect for casting and titanium machining. The standard 12,000 rpm spindle is direct drive. Both are listed at 18.5 kW (25 HP).

03 What are the travels and table load?

X travel is 1,020 mm (40.16 in), Y is 600 mm (23.62 in) and Z is 600 mm (23.62 in). The table measures 1,120 x 600 mm (44.09 x 23.62 in) and is rated for 800 kg (1,764 lb). The machine weighs 6,500 kg (14,330 lb).

04 How many tools can it hold?

The standard magazine holds 24 tools and can be expanded to 30 or 40. Tool selection is bi-directional and takes the shortest path, and YCM gives the tool change time as 1.8 sec.
