Chevalier Machinery Vertical Machining Centers (VMC)

Chevalier EM1620L

Q: How much does the Chevalier EM1620L cost?

The price estimate for the Chevalier EM1620L is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chevalier-em1620l#price; the request is passed to Chevalier Machinery or an authorised dealer.

Specs verified 2026-10-05 · chevalierusa.com Updated 2026-10-05

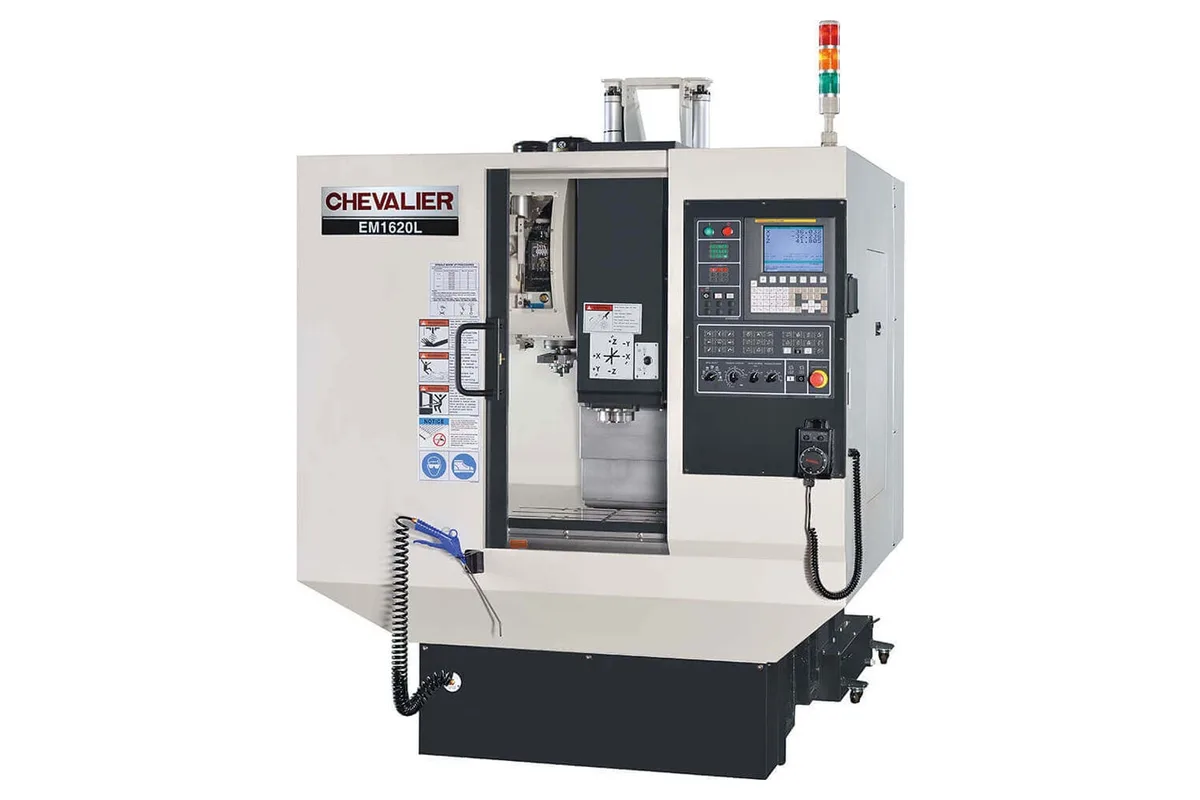

Chevalier EM1620L vertical machining center

Image: chevalierusa.com, Chevalier Machinery

Key Specifications

Spindle Taper

#40 Big Plus

Tool Capacity

24+1 arm type

Table Size

27.6 in x 12.6 in (700 x 320 mm)

control

Fanuc 0i-M

max table load

550 lb (250 kg)

x axis travel

20.5 in (520 mm)

How much does the Chevalier EM1620L cost?

Price estimate

Uncertain

We do not have a price for the Chevalier EM1620L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Chevalier EM1620L is the smallest of the EM vertical machining centers, with travels of 20.5 in (520 mm) in X, 14.5 in (368 mm) in Y and 15.0 in (380 mm) in Z. Chevalier positions the EM series as its cost-saving line for precision and high speed machining, and this model is the one sized for small parts and tight floor space.

It is also the quickest of the three EM machines. Rapid traverse is 1,889/1,889/1,417 ipm (48/48/36 m/min) on linear ways, where the larger EM2033L runs at 1,417 / 1,417 / 944 ipm. Short travels and fast rapids suit work with many small features and frequent tool changes, such as drilled and tapped plates, small housings and electrode blanks.

The spindle takes #40 Big Plus tooling and runs at 10,000 rpm; the table lists that speed for both a belt drive and a direct drive version. The changer is a 24+1 arm type with a 3 sec tool-to-tool time. Tool length is the figure to watch on this size: 7.9 in (200 mm), against 11.8 in (300 mm) on the EM2033L, so long drills and boring bars may not fit the magazine.

The 27.6 in x 12.6 in (700 x 320 mm) table carries 550 lb (250 kg). The machine weighs 5,070 lb (2,300 kg) and stands on 66.9 in x 103.5 in of floor. Chips are flushed to the centre automatically and carried by conveyor to a collector at the rear of the base, so leave access behind the machine. The control is a Fanuc 0i-M.

Full Specifications

Parameter	Value
CNC Control	Fanuc 0i-M
Table Size	27.6 in x 12.6 in (700 x 320 mm)
Max Table Load	550 lb (250 kg)
X Axis Travel	20.5 in (520 mm)
Y Axis Travel	14.5 in (368 mm)
Z Axis Travel	15.0 in (380 mm)
Distance Spindle Nose to Table	5.9 in to 20.9 in (150 to 530 mm)
Distance Spindle Center to Column	14.5 in (368 mm)
Spindle Taper	#40 Big Plus
Spindle Speed	Belt drive: 10,000 rpm / Direct drive: 10,000 rpm
Spindle Diameter	2.4 in (60 mm)
Rapid Traverse Xyz	1,889/1,889/1,417 ipm (48/48/36 m/min)
Cutting Feed Rate	39.3 to 393 ipm (1 to 10 m/min)
Tool Capacity	24+1 arm type
Tool Shank	BT40 (Opt. CT40 / DIN40)
Tool Change Time	3 sec
Pull Stud	P40T-1
Max Tool Diameter (full magazine)	3.1 in (Ø80 mm)
Max Tool Length	7.9 in (200 mm)
Max Tool Weight	15.4 lb (7 kg)
Machine Dimensions	66.9 in x 103.5 in x 91.1 in (1,700 x 2,630 x 2,315 mm)
Machine Weight	5,070 lb (2,300 kg)

Specifications sourced from chevalierusa.com — verified 2026-10-05

Strengths & Limitations

Strengths

Rapid traverse of 1,889/1,889/1,417 ipm (48/48/36 m/min), the fastest in the EM series
24+1 arm type tool changer with a 3 sec tool-to-tool time
10,000 rpm spindle with #40 Big Plus taper, listed in belt drive and direct drive versions
Small footprint of 66.9 in x 103.5 in and a weight of 5,070 lb (2,300 kg)
Automatic chip flushing with a chip conveyor to the rear

Limitations

Maximum tool length is 7.9 in (200 mm)
Table load is 550 lb (250 kg)
Y travel of 14.5 in (368 mm) and a 12.6 in (320 mm) deep table limit fixture size
No spindle power or torque figure is given in the maker's table

Best For

Small prismatic parts with many drilled and tapped features Second-operation work beside larger machines Shops with limited floor space Light aluminium and steel work within 550 lb (250 kg)

Frequently Asked Questions

01 What are the travels and table size of the EM1620L?

Travels are 20.5 in (520 mm) in X, 14.5 in (368 mm) in Y and 15.0 in (380 mm) in Z. The table is 27.6 in x 12.6 in (700 x 320 mm) and carries 550 lb (250 kg). Spindle nose to table distance is 5.9 in to 20.9 in (150 to 530 mm).

02 How does the EM1620L differ from the QP1620-L?

Both have the same travels, table and weight. The EM1620L has a 24+1 tool changer at 3 sec tool-to-tool and a 10,000 rpm spindle. The QP1620-L has a 20+1 changer at 1 sec, a direct drive option of 150 to 15,000 rpm, and can be had with a #30 spindle.

03 What spindle does the EM1620L use?

The spindle taper is #40 Big Plus and the spindle diameter is 2.4 in (60 mm). The speed row lists 10,000 rpm for the belt drive and 10,000 rpm for the direct drive. Tool shank is BT40, with CT40 or DIN40 as options.

04 How are chips removed?

According to Chevalier, an automatic chip flushing system moves cutting chips to the center and the chip conveyor delivers them to the chip collector, which is located at the rear of the machine base. Allow room behind the machine to empty it.
