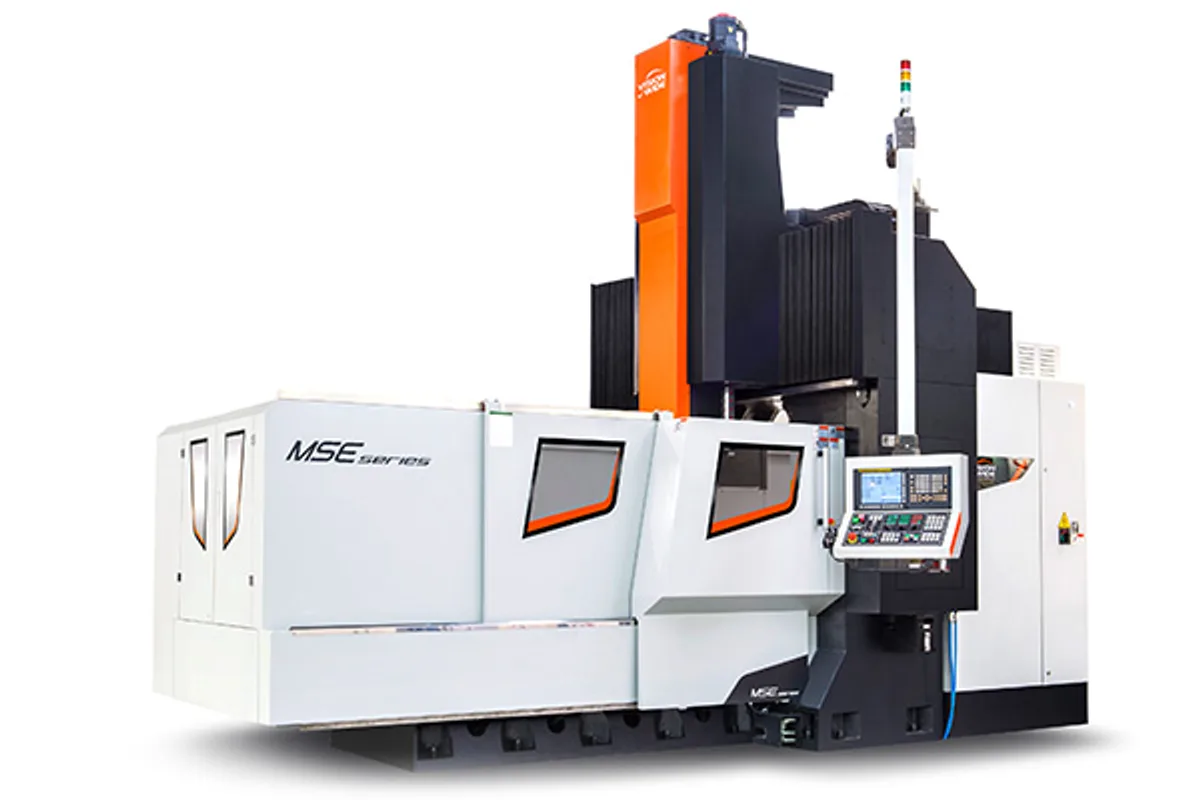

Vision Wide MSE-2112
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide MSE-2112 cost?
Price estimate
We do not have a price for the Vision Wide MSE-2112 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two accuracy figures head the feature list of the Vision Wide MSE-2112: positioning accuracy P 0.007mm and repeatability Ps 0.003 mm. For a milling machine with 2,100 mm (82.7 in) of X travel those are finishing-grade numbers, and the standard equipment supports them with linear scale feedback on X, Y and Z.
The two figures answer different questions. Positioning accuracy says how close the axis comes to a commanded point anywhere in its travel. Repeatability says how closely it returns to the same point each time. On a mold, positioning error shows as a cavity slightly out of place; poor repeatability shows as a visible line where one tool path meets the next. The smaller figure is the one that governs surface match.
The page gives no test standard or measuring length for either, and they are stated for the series, not per model.
The machine has 1,200 mm (47.2 in) of Y travel and a 2,300x1,100 mm (90.6x43.3 in) table for 10,000 kg (22,046 lb). Z travel is 800 mm, or 1,000 mm. The spindle runs 15,000 rpm with 15/ 18.5 kW (20.1/ 24.8 hp), and cutting feed reaches 24,000 mm/min. No tool magazine is listed for the MSE.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,100 mm (82.7 in) |
| Y Axis Travel | 1,200 mm (47.2 in) |
| Z Axis Travel | 800/1,000 mm (31.5/39.4 in) (Opt.) |
| Table Size | 2,300x1,100 mm (90.6x43.3 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| Spindle Power Cont 30 Min | 15/ 18.5 kW (20.1/ 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24/30 m/min (Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Stated positioning accuracy P 0.007mm and repeatability Ps 0.003 mm
- Linear scale feedback on X, Y and Z as standard
- 2,300x1,100 mm (90.6x43.3 in) table for 10,000 kg (22,046 lb)
- 15,000 rpm with cutting feed to 24,000 mm/min
Limitations
- No test standard is given for the accuracy figures
- Y travel of 1,200 mm (47.2 in)
- No tool magazine is listed
Best For
Frequently Asked Questions
01
The MSE feature list gives positioning accuracy P 0.007mm and repeatability Ps 0.003 mm. XYZ axis linear scale feedback is a standard accessory. No test standard is named on the page.
02
A 2,300x1,100 mm (90.6x43.3 in) table with a 10,000 kg (22,046 lb) load. X travel is 2,100 mm (82.7 in) and Y travel 1,200 mm (47.2 in).
03
They share travels, table, the 10,000 kg (22,046 lb) load and the 15,000 rpm spindle. The SE-2112 is a machining center with a tool magazine row in its table; the MSE-2112 is listed as a milling machine without one.
04
Yes. The MSE-2118 has the same 2,100 mm (82.7 in) of X with 1,800 mm (70.9 in) of Y and a 2,300x1,600 mm (90.6x63.0 in) table.
