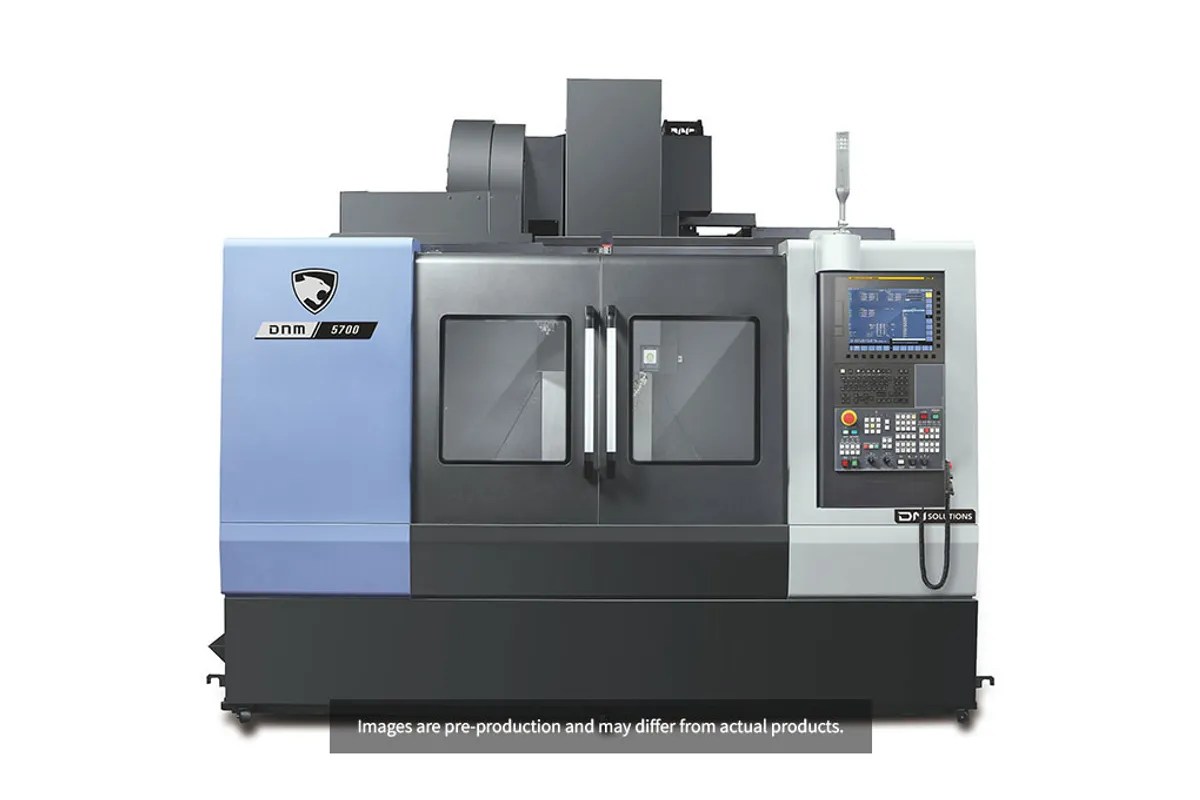

DN Solutions DNM 5700 L

$90,000 - $135,000 Updated 2026-03-19

Key Specifications

X Travel

1,300 mm (51 in)

Y Travel

570 mm (22 in)

Z Travel

510 mm (20 in)

Max Spindle

8,000 RPM

Spindle Taper

ISO 40 (BT40)

Table Size

1,500 x 570 mm (59 x 22 in)

Overview

The DN Solutions DNM 5700 L extends the already generous DNM 5700 platform with a 1,300 mm (51 in) X-axis stroke and a 1,500 x 570 mm table. That extra 250 mm of X-travel over the standard DNM 5700 opens up longer mold bases, larger structural components, and multi-part fixture setups that the standard model can't accommodate. For shops consistently working parts in the 1,000-1,200 mm range, the DNM 5700 L means you don't have to step up to the significantly larger and more expensive DNM 6700.

The spindle specs are identical to the standard DNM 5700: 8,000 RPM, 18.5 kW (25 hp), 117.8 Nm torque through an ISO 40 taper. Box-way construction carries over, providing the same rigidity foundation that makes the entire DNM series effective for heavy steel and cast iron work. Y and Z travels remain at 570 mm and 510 mm, so the extension is purely along the table length where longer parts need it.

At 7,000 kg, the DNM 5700 L carries 500 kg more mass than the standard model, which adds to vibration damping and thermal stability during extended cutting cycles. The 1,500 x 570 mm table with 1,000 kg load capacity handles heavy long parts and multi-part fixtures without concern. The FANUC 0i-Plus control is consistent across the DNM family. For shops that regularly bump up against 1,050 mm X-travel on their standard DNM 5700, the L variant provides the breathing room without a major jump in cost or footprint.

Full Specifications

Parameter	Value
X-Axis Travel	1,300 mm (51 in)
Y-Axis Travel	570 mm (22 in)
Z-Axis Travel	510 mm (20 in)
Max Spindle Speed	8,000 RPM
Spindle Motor Power	18.5 kW (25 hp)
Spindle Torque	117.8 Nm (87 ft-lb)
Spindle Taper	ISO 40 (BT40)
Table Size	1,500 x 570 mm (59 x 22 in)
Table Load Capacity	1,000 kg (2,205 lb)
Machine Weight	7,000 kg (15,432 lb)
CNC Control	FANUC 0i-Plus with iHMI
X Axis Travel Distance	1300 mm
Y Axis Travel Distance	570 mm
Metric	IMPERIAL
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle TorqueTool Taper
Table	Table LengthTable WidthMaximum Workpiece weight
Dimensions	LengthHeightWidthWeight
Favorites	DNM 750/50 II

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

1,300 mm X-travel handles longer parts and multi-part fixtures that the standard DNM 5700 can't reach
1,500 x 570 mm table provides generous fixturing space for production work and long mold bases
Box-way construction maintains the rigidity that defines the DNM series across the extended travel
7,000 kg mass provides excellent vibration damping and thermal stability for extended cutting cycles
1,000 kg table load capacity handles heavy long parts and multi-part tombstone setups
Same proven spindle and control platform as the standard DNM 5700 — no surprises

Limitations

8,000 RPM spindle speed limits high-speed aluminum work — 12K and 15K RPM options available
510 mm Z-travel is unchanged from the standard model, which may still limit deep-cavity work
Larger footprint than the standard DNM 5700 requires more floor space
7,000 kg weight needs slightly more robust floor preparation than lighter VMCs

Best For

Job shops consistently working parts in the 1,000-1,200 mm range that exceed standard DNM 5700 X-travel Mold shops machining longer mold bases and structural mold components Production shops running multi-part fixtures with parts arranged along the table length Shops looking for extended X-travel without the cost and size jump to a DNM 6700 or larger platform Facilities machining longer structural components for aerospace, energy, and heavy industry

Frequently Asked Questions

01 What does a DN Solutions DNM 5700 L cost?

New DNM 5700 L machines run $90,000-$135,000. The base machine with 8K RPM spindle starts around $90,000-$105,000. Adding a higher-speed spindle, through-spindle coolant, probing, and accessories pushes pricing to $120,000-$135,000. The premium over a standard DNM 5700 is typically $8,000-$12,000 for the extended bed.

02 Should I get the DNM 5700 L or the DNM 6700?

The DNM 6700 offers 1,300mm X-travel (same as the 5700 L) but increases Y to 670mm (vs 570mm) and Z to 625mm (vs 510mm). If your parts fit within 570mm Y-travel, the 5700 L saves money. If you need more Y and Z clearance, the 6700 is worth the upgrade. The 6700 also offers an XL variant with 2,100mm X-travel if you need even more reach.

03 Is a DNM 5700 L 4TH model available?

DN Solutions doesn't list a dedicated DNM 5700 L 4TH model in the current catalog. You can install an aftermarket rotary table on the DNM 5700 L using the generous table space. Alternatively, the DNM 5700 4TH (standard length) offers factory-integrated fourth-axis capability if 1,050mm X-travel is sufficient for your 4-axis work.

04 How does the DNM 5700 L compare to the Haas VF-3?

The DNM 5700 L has more X-travel (1,300 vs 1,016mm) and box-way construction versus the Haas VF-3's linear guides. The Haas offers more Z-travel (635 vs 510mm) and a lower base price. For long parts in steel and cast iron, the DNM 5700 L's combination of extended X-travel and box-way rigidity is the stronger choice.
