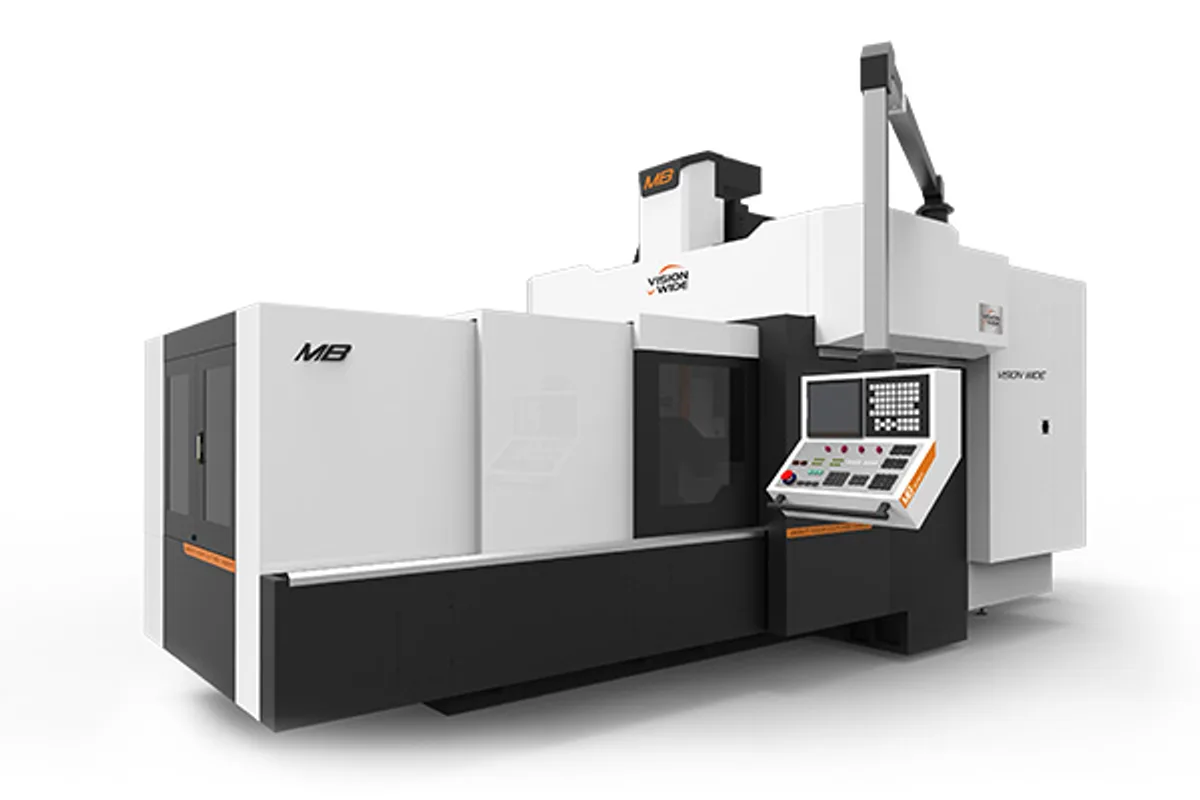

Vision Wide MB-3016
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide MB-3016 cost?
Price estimate
We do not have a price for the Vision Wide MB-3016 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Box ways live or die by their lubrication, and the Vision Wide MB-3016 has a specific answer. Vision Wide says oil is delivered directly to the gibs on the three axes' box ways, ensuring 100% lubrication certainness.
A gib is the adjustable strip that takes up clearance between a slide and its way. It is the closest-fitting surface on the axis and the first to suffer if oil does not reach it, scoring the way and making the axis stick. Feeding each gib by its own line, instead of relying on oil to creep across from the main way, is how a builder makes sure it is never dry. The maker also describes the square guideways as coated and precision scraped, for stiffness with low friction.
Those points matter most on a long axis. This model has 3,100 mm (122.0 in) of X travel under a 3,100×1,300 mm (122.0×51.2 in) table that carries 10,000 kg (22,046 lb).
Rapid traverse is 12 m/min in X and Y and 15 m/min in Z, and cutting feed is 1-7,000 mm/min. Y travel is 1,600 mm (63.0 in). The spindle is a 4,000 rpm two-step gear type with 18.5/22 kW (24.8/29.5 hp).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 1,600 mm (63.0 in) |
| Z Axis Travel | 800/1,020 mm (31.5/40.2 in)(OPT.) |
| Table Size | 3,100×1,300 mm (122.0×51.2 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) OPT.)(30/37 kW (40.2/49.6 hp) OPT.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(OPT.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X Y:12 m/min Z:15 m/min |
| Tool Capacity | 32/40 pcs(OPT.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Direct lubrication to the gibs on all three box way axes
- Coated, precision-scraped square guideways
- 3,100×1,300 mm (122.0×51.2 in) table for 10,000 kg (22,046 lb)
- Z rapid of 15 m/min on a box way axis
Limitations
- X and Y rapids of 12 m/min
- Narrow 1,300 mm (51.2 in) table width
- Box ways need their lubrication system kept in order
Best For
Frequently Asked Questions
01
Vision Wide says direct lubrication is offered to the gibs on the 3 axes box ways, ensuring 100% lubrication certainness. The square guideways are described as coated with precision scraping.
02
12 m/min in X and Y and 15 m/min in Z. The shorter MB-2516 lists 15 m/min on all three axes. Cutting feed is 1-7,000 mm/min.
03
The table is 3,100×1,300 mm (122.0×51.2 in) and X travel is 3,100 mm (122.0 in). Y travel is 1,600 mm (63.0 in) and the table load 10,000 kg (22,046 lb).
04
Yes. The MB-3020 has 2,000 mm (78.7 in) of Y travel and a 3,100×1,700 mm (122.0×66.9 in) table rated for 11,000 kg (24,250 lb).
