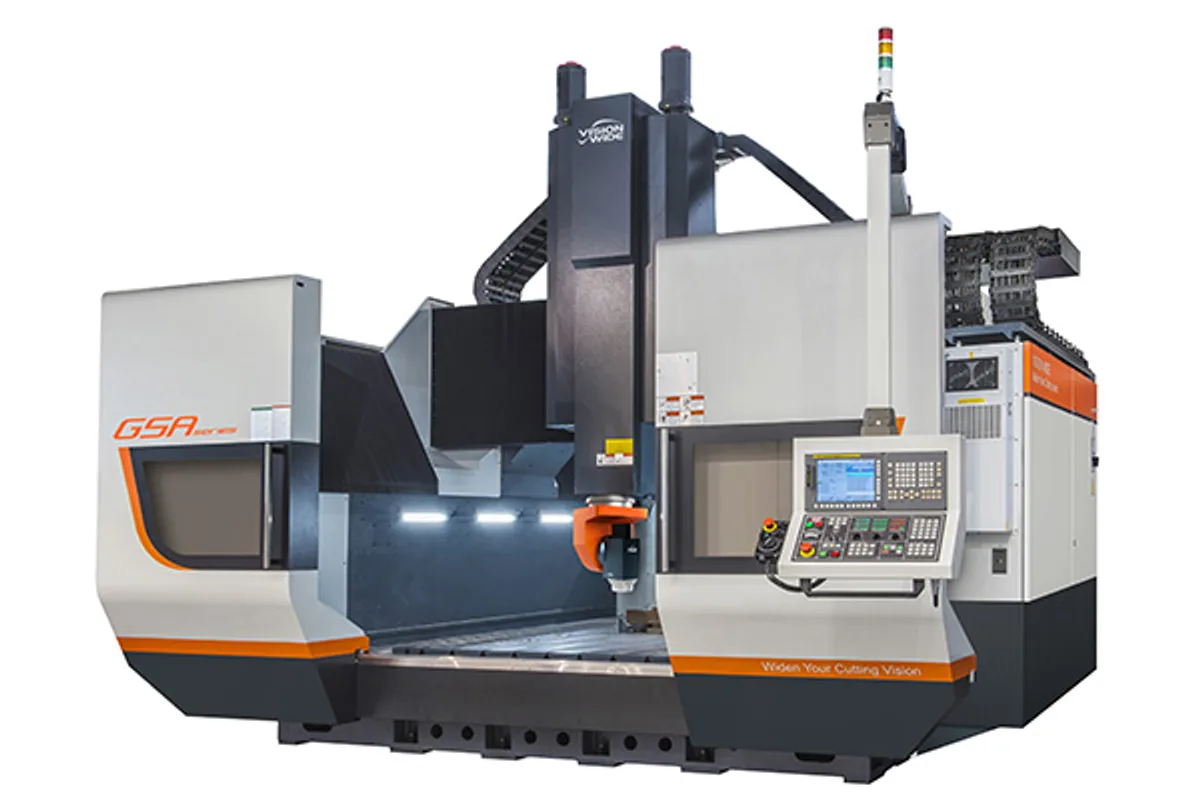

Vision Wide GSA-5032
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
spindle power cont 30 min
How much does the Vision Wide GSA-5032 cost?
Price estimate
We do not have a price for the Vision Wide GSA-5032 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide GSA-5032 is a five-metre gantry with a wide bridge: 5,000 mm (196.9 in) of X travel, 3,200 mm (126.0 in) of Y, and a 5,000×3,200 mm (196.9×126.0 in) fixed table.
It is specified from the start as a measured, controlled machine. The standard list includes a HEIDENHAIN TNC640 controller, dual linear scales on X, a linear scale on each of Y and Z, and correction of the head's rotation errors. Many large machines offer those as extras. Here they are the base, which fits the maker's description of the GSA as providing high accuracy performance in mold cutting and highly precise contour finishing.
What is left to choose is mostly process equipment. Coolant through spindle system 20 / 70 bar and an oil mist cooling device (MQL) are options. So is auto workpiece measurement, which on a table this large saves the time of aligning a mold by hand. A dual belt type chip conveyor can replace the standard caterpillar type.
The head is the indexing IAC type with a 15,000 rpm, 50/65 kW (67.1/87.2 hp) spindle. Cutting feed is 1~20,000 mm/min and rapid traverse 32/32/20 m/min. Z travel is 1,000 mm, or 1,200 mm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,000 mm (196.9 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in)(Opt.) |
| Table Size | 5,000×3,200 mm (196.9×126.0 in) |
| Spindle Power Cont 30 Min | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1~20,000 mm/min |
| Rapid Traverse Xyz | 32/32/20 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- HEIDENHAIN TNC640 controller and linear scales on all axes as standard
- 5,000×3,200 mm (196.9×126.0 in) fixed table
- Head rotation error correction included
- Cutting feed up to 20,000 mm/min
Limitations
- Auto workpiece measurement is an option
- No alternative control is listed for the GSA series
- Through-spindle coolant and MQL are options
Best For
Frequently Asked Questions
01
The standard list includes a HEIDENHAIN TNC640 controller, the IAC-15,000rpm/HSK-A100 head with its protection system, X axis dual linear scale and Y/Z-axis linear scale, a 20T magazine with arm type ATC, and screw and caterpillar chip conveyors.
02
Options include the IAC-12,000 rpm / HSK-A100 and IAC-24,000 rpm / HSK-A63 heads, automatic correction software of rotary axis error, a 32T magazine, coolant through spindle system 20 / 70 bar, an oil mist cooling device (MQL), a dual belt type chip conveyor and auto workpiece measurement.
03
5,000 mm (196.9 in) in X, 3,200 mm (126.0 in) in Y, and 1,000 mm in Z or 1,200 mm with the option. The table is 5,000×3,200 mm (196.9×126.0 in).
04
The GSA-5027 has 2,700 mm (106.3 in) of Y travel and a 5,000×2,700 mm (196.9×106.3 in) table. The GSA-5032 has 3,200 mm (126.0 in) of Y and a 5,000×3,200 mm (196.9×126.0 in) table. Other rows are the same.
