Vision Wide SV-1166

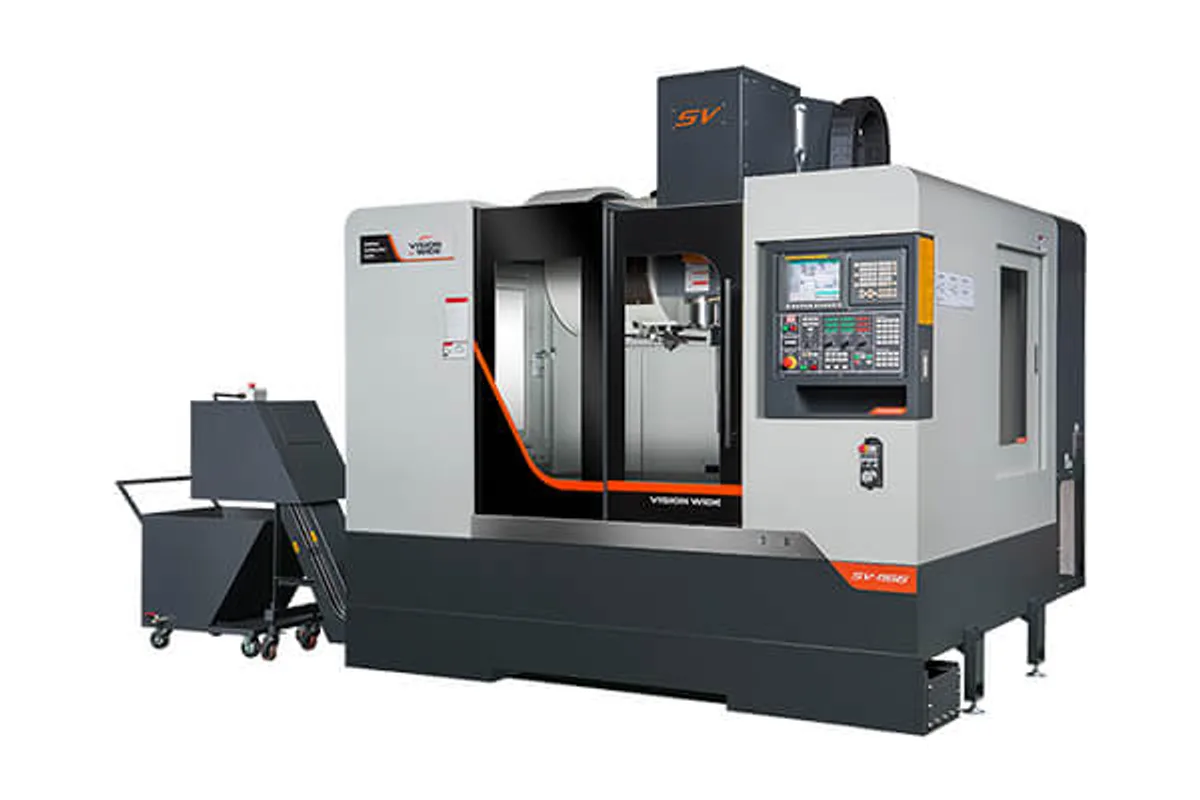

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide SV-1166 cost?
Price estimate
We do not have a price for the Vision Wide SV-1166 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide SV-1166 moves the SV series past the one-metre mark: 1,100 mm (43.3 in) of X travel with 600 mm (23.6 in) on Y and on Z. The table is 1,200×610 mm (47.2×24.0 in) and takes 700 kg (1,543 lb).
This is the size where two vises and a fourth axis fit side by side. The SV-855 below it has 850 mm (33.5 in) of X, 550 mm (21.7 in) on the other two axes and a 500 kg (1,102 lb) table. On the SV-1166 all of those grow, while the rapids stay at 30 / 30 / 24 m/min and the cutting feed range at 1-10 m/min. Nothing in the spindle changes either: 7.5 / 11 kW (10.1 / 14.8 hp), 10,000 rpm standard, 12,000 / 15,000 rpm listed as the faster versions.
Its closest sibling is the SV-1266. The SV-1266 has the same Y and Z, 1,200 mm (47.2 in) of X, a 1,400×610 mm (55.1×24.0 in) table rated for 800 kg (1,764 lb) and 36 / 36 / 30 m/min rapids. So the SV-1166 is the pick when floor space or the shorter table matters more than traverse speed.
Vision Wide builds the series on roller type linear guideways and claims loading and rigidity 30% higher than C-type machines with ball bearing guideways. An interface reserved for a fourth axis and a rotary table are both on the optional list, as is a chip flushing system.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,100 mm (43.3 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Table Size | 1,200×610 mm (47.2×24.0 in) |
| Max Table Load | 700 kg (1,543 lb) |
| Max Spindle Speed | 10,000 rpm (STD); 12,000 / 15,000 rpm |
| Spindle Power Cont 30 Min | 7.5 / 11 kW (10.1 / 14.8 hp) |
| Cutting Feed Rate | 1-10 m/min |
| Rapid Traverse Xyz | 30 / 30 / 24 m/min |
| Tool Capacity | 24 / 32 pcs |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,100 mm (43.3 in) of X with 600 mm (23.6 in) of Y and Z
- 1,200×610 mm (47.2×24.0 in) table rated for 700 kg (1,543 lb)
- Roller type linear guideways, which the maker rates 30% higher in loading and rigidity than ball bearing types on C-type machines
- Rotary table and an interface reserved for a fourth axis are available options
- Spindle cooling system is standard
Limitations
- Rapids are 30 / 30 / 24 m/min; the SV-1266 lists 36 / 36 / 30 m/min
- 700 kg (1,543 lb) table load, below the 800 kg (1,764 lb) of the SV-1266
- Spindle power of 7.5 / 11 kW (10.1 / 14.8 hp) is the same as on the much smaller SV-800
- The table lists no larger motor alternative for this size
Best For
Frequently Asked Questions
01
It has 1,100 mm (43.3 in) of X travel, 600 mm (23.6 in) of Y and 600 mm (23.6 in) of Z. The table is 1,200×610 mm (47.2×24.0 in) and carries up to 700 kg (1,543 lb).
02
Y and Z travel are the same at 600 mm (23.6 in). The SV-1266 has 1,200 mm (47.2 in) of X, a 1,400×610 mm (55.1×24.0 in) table, an 800 kg (1,764 lb) load rating and 36 / 36 / 30 m/min rapids, against 30 / 30 / 24 m/min on the SV-1166.
03
Yes, as an option. The optional accessory list for the SV series includes a rotary table and an interface reserved for fourth axis. Neither is part of the standard machine, so both need to be on the order.
04
10,000 rpm is the standard speed. The table also lists 12,000 / 15,000 rpm, which the accessory lists show as optional #40 direct driven spindles. Power is 7.5 / 11 kW (10.1 / 14.8 hp), continuous and short-time.
