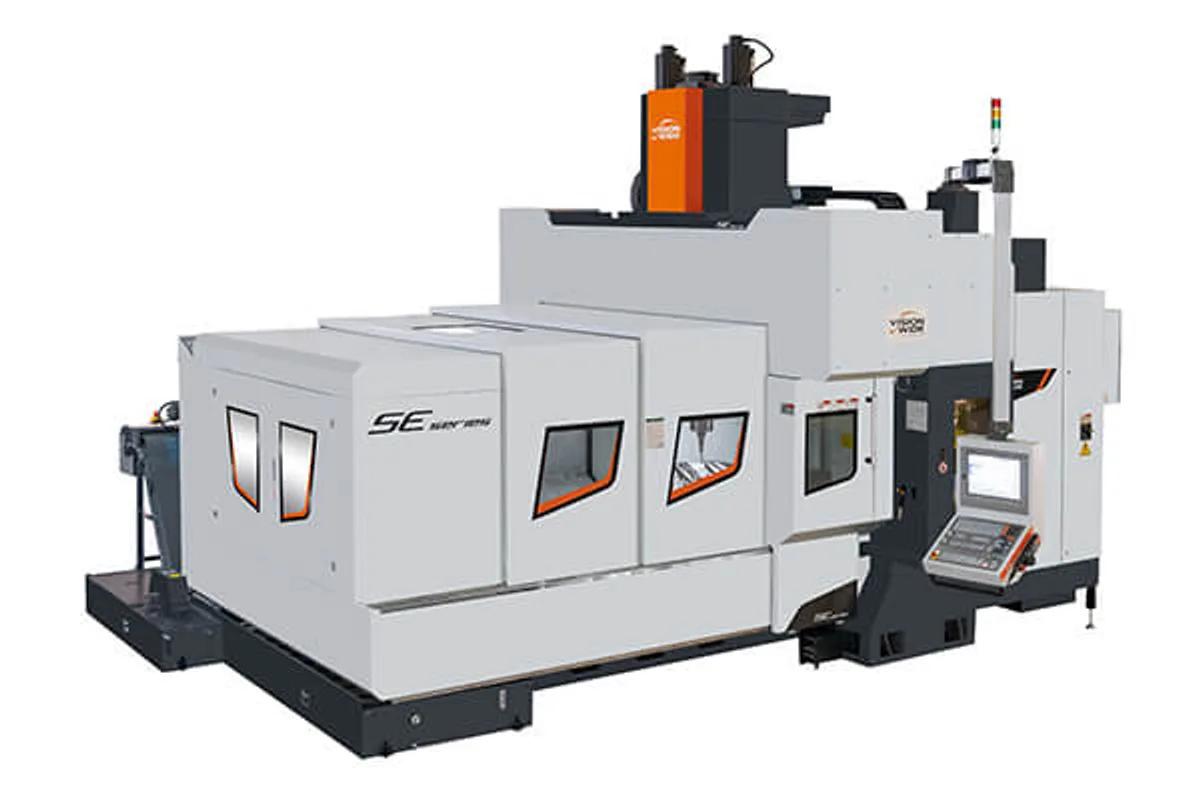

Vision Wide SE-2118
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide SE-2118 cost?
Price estimate
We do not have a price for the Vision Wide SE-2118 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide SE-2118 sits in the middle of the wide SE models, with 2,100 mm (82.7 in) of X, 1,800 mm (70.9 in) of Y and a 2,300x1,600 mm (90.6x63.0 in) table that carries 10,000 kg (22,046 lb).
Which spindle should go on it? The answer depends on tool diameter more than on the machine. The standard 15,000 rpm direct driven BBT-40 spindle covers general mold finishing. Shops running long-reach ball mills and insert cutters above the size a 40-taper holds well can choose a #50 / HSK-A100 spindle: direct driven at 10,000 / 12,000rpm, or built-in at 12,000 rpm with the FANUC control. Those finishing with very small tools can go the other way, to built-in spindles of 20,000 / 24,000 / 28,000 rpm on #40 / HSK-A63.
One detail in the option list matters for coolant. The spindle ring cutting coolant device is marked as excluded for built-in spindles, so a machine with a built-in spindle relies on through-spindle coolant, at 20 / 70 bar as an option, or on oil mist.
Rapid traverse is 24 m/min and the cutting feed range is 1-24,000 mm/min. The 30 m/min rapid is optional.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,100 mm (82.7 in) |
| Y Axis Travel | 1,800 mm (70.9 in) |
| Z Axis Travel | 800/1,000 mm (31.5/39.4 in) (Opt.) |
| Table Size | 2,300x1,600 mm (90.6x63.0 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| Spindle Power Cont 30 Min | 15/ 18.5 kW (20.1/ 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24/30 m/min (Opt.) |
| Tool Capacity | 24 pcs (20/32/40 pcs Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Spindle range from 10,000 rpm #50 units to 28,000 rpm #40 built-in units
- 2,300x1,600 mm (90.6x63.0 in) table for 10,000 kg (22,046 lb)
- Coolant through spindle system 20 / 70 bar available
- 1,800 mm (70.9 in) of Y travel
Limitations
- Spindle ring cutting coolant device is not available with built-in spindles
- All spindles other than the 15,000 rpm BBT-40 unit are options
- Standard Z travel is 800 mm
Best For
Frequently Asked Questions
01
Standard is a direct driven spindle 15,000 rpm (BBT-40). Options include direct driven 10,000 / 12,000rpm (#50 / HSK-A100) and built-in 20,000 / 24,000 / 28,000 rpm (#40 / HSK-A63) spindles for FANUC, with a slightly different list for HEIDENHAIN.
02
A cutting fluid cooling system is standard. Options are a spindle ring cutting coolant device (built-in spindle excluded), a coolant through spindle system 20 / 70 bar, a reserved interface for it, and an oil mist cooling device.
03
2,100 mm (82.7 in) in X and 1,800 mm (70.9 in) in Y. Z travel is 800 mm standard and 1,000 mm as an option, as printed in the row 800/1,000 mm (31.5/39.4 in) (Opt.).
