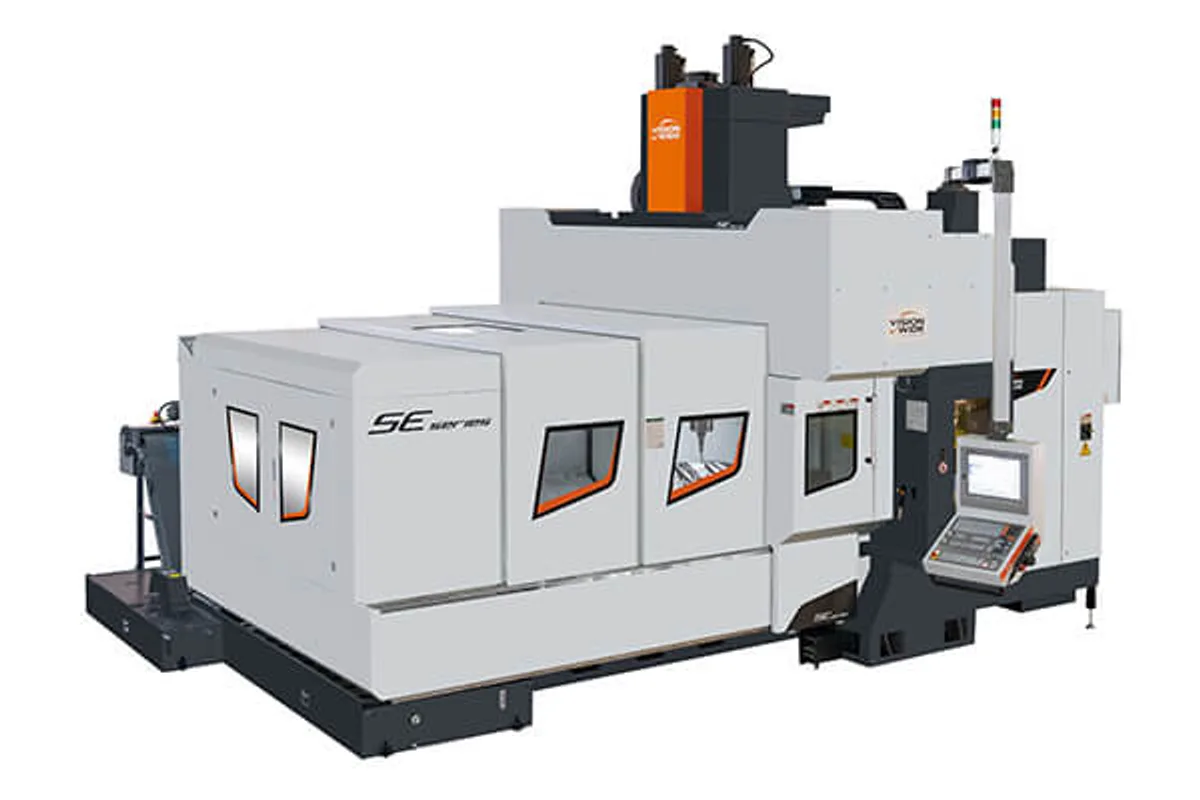

Vision Wide SE-1618
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide SE-1618 cost?
Price estimate
We do not have a price for the Vision Wide SE-1618 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide SE-1618 is wider than it is long in travel: 1,800 mm (70.9 in) of Y against 1,600 mm (63.0 in) of X. The table is 1,800x1,600 mm (70.9x63.0 in), close to square, and rated for 8,000 kg (17,637 lb).
That shape fits the molds many shops actually run. Door panel, wheel and appliance molds are roughly as wide as they are long, and on the narrower SE-1612 they would overhang a 1,800x1,100 mm (70.9x43.3 in) table.
Control choice is tied to spindle choice on this series, and it is worth sorting out early. The standard build is a Fanuc 0iMF PLUS controller with the 15,000 rpm direct driven spindle. With the HEIDENHAIN TNC 620/640 option, the direct driven choices are 12,000 / 15,000rpm on #40 / HSK-A63 or 10,000 / 12,000rpm on #50 / HSK-A100. With FANUC, the #40 direct driven spindle is listed at 15,000rpm only. The built-in spindle lists differ by control as well.
Power is 15/ 18.5 kW (20.1/ 24.8 hp) on the standard spindle. Rapid traverse is 24 m/min, or 30 m/min as an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 1,800 mm (70.9 in) |
| Z Axis Travel | 800/1,000 mm (31.5/39.4 in) (Opt.) |
| Table Size | 1,800x1,600 mm (70.9x63.0 in) |
| Max Table Load | 8,000 kg (17,637 lb) |
| Spindle Power Cont 30 Min | 15/ 18.5 kW (20.1/ 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24/30 m/min (Opt.) |
| Tool Capacity | 24 pcs (20/32/40 pcs Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Near-square 1,800x1,600 mm (70.9x63.0 in) table
- 1,800 mm (70.9 in) of Y travel on the shortest SE bed
- Choice of Fanuc 0iMF PLUS, FANUC 31iB or HEIDENHAIN TNC 620/640 control
- #50 / HSK-A100 spindle options for larger tools
Limitations
- X travel of 1,600 mm (63.0 in) is shorter than the Y travel
- Spindle options depend on which control is ordered
- 8,000 kg (17,637 lb) load is the lowest SE rating
Best For
Frequently Asked Questions
01
Yes. The option list names the HEIDENHAIN TNC 620/640 Controller alongside the FANUC 31iB. The standard control is the Fanuc 0iMF PLUS. Spindle options are listed separately for FANUC and HEIDENHAIN.
02
A 1,800x1,600 mm (70.9x63.0 in) table with a maximum load of 8,000 kg (17,637 lb). Y travel of 1,800 mm (70.9 in) is longer than the table is wide; X travel is 1,600 mm (63.0 in).
03
As options. Direct driven spindles of 10,000 / 12,000rpm are listed with #50 / HSK-A100 for both controls, and built-in #50 spindles at 12,000 rpm for FANUC or 15,000 rpm for HEIDENHAIN.
04
The SE-1612 has 1,200 mm (47.2 in) of Y and a 1,800x1,100 mm (70.9x43.3 in) table. The SE-1618 has 1,800 mm (70.9 in) of Y and a 1,800x1,600 mm (70.9x63.0 in) table. Load, spindle and feeds are the same.
