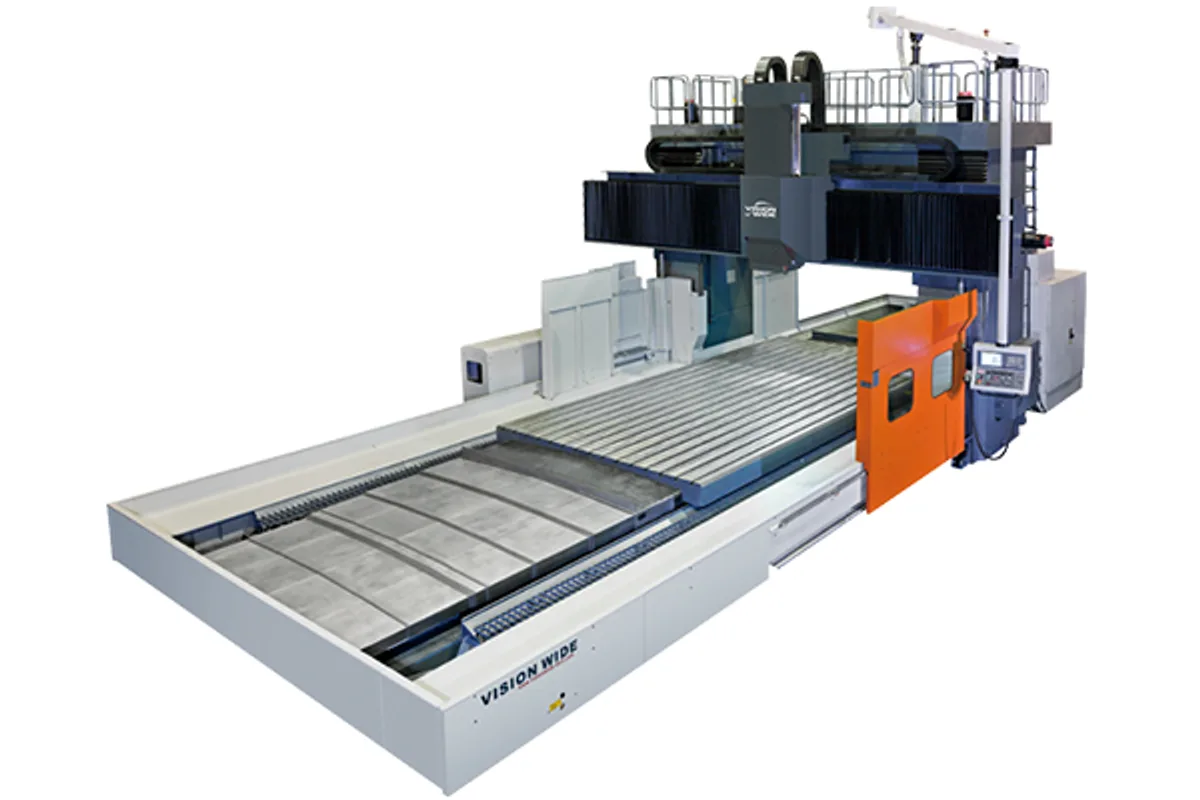

Vision Wide BM-5030 / 5037
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
max table load
How much does the Vision Wide BM-5030 / 5037 cost?
Price estimate
We do not have a price for the Vision Wide BM-5030 / 5037 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
On the Vision Wide BM-5030 / 5037 the cross rail is a cutting axis, not just a height adjustment. Vision Wide says the W-axis feed cuts in synchronism with the other axes, and that the rail can carry precision feeding and heavy cutting. The W cutting feed is listed as 1,000 mm/min, against 1-7,000 mm/min for X, Y and Z.
That widens what the machine can do with a tall part. With the ram kept short and the rail feeding downward, a deep bore or a tall side wall can be machined with the head close to the beam instead of at the end of a long extension. A short ram is a stiff one.
Holding a moving beam level is the hard part of this design. The rail is driven by dual synchronized servo motors, one each side, and dual linear scales for the W axis are standard, so each end is measured and the two are kept in step.
The machine has 5,100 mm (200.8 in) of X travel and a 5,000×2,450 mm (196.9×96.5 in) table for 20,000 kg (44,092 lb). Y is 3,000 mm, or 3,700 mm on the second model of the pair. Rapids are 10 / 10 / 12 / 2 m/min. Power is 22/26 kW (29.5/34.9 hp), with 30/37 kW (40.2/49.6 hp) as an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,100 mm (200.8 in) |
| Y Axis Travel | 3,000/ 3,700 mm (118.1/ 145.7 in) |
| Z Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,400 mm (55.1 in)(Opt.) |
| W Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,500 mm (59.1 in)(Opt.) |
| Table Size | 5,000×2,450 mm (196.9×96.5 in) |
| Max Table Load | 20,000 kg (44,092 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Direct Driven | 8,000 rpm(Opt.)/ 10,000 rpm(Opt.) |
| Cutting Feed Rate | XYZ:1-7,000 mm/min W:1,000 mm/min |
| Rapid Traverse Xyzw | 10 / 10 / 12 / 2 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 40/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Fixed | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Random | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- W axis feeds while cutting, synchronised with the other axes
- Dual linear scales for the W axis are standard
- 5,000×2,450 mm (196.9×96.5 in) table for 20,000 kg (44,092 lb)
- 30/37 kW (40.2/49.6 hp) motor available
Limitations
- W cutting feed of 1,000 mm/min and W rapid of 2 m/min
- X/Y/Z linear scales are optional; only W has them as standard
- X and Y rapids of 10 m/min
Best For
Frequently Asked Questions
01
Yes, according to the maker: the BM series is described as unique for its movable cross rail and W-axis feed cutting in synchronism with the other axial feeds. W cutting feed is listed as 1,000 mm/min.
02
It is positioned by a dual synchronized servo motor driving system, with dual linear scales for the W axis as standard. A hydraulic system controls the parallelism of the rail's travel, per the maker's description.
03
X is 5,100 mm (200.8 in). Y is 3,000/ 3,700 mm (118.1/ 145.7 in). Z and W each start at 1,000 mm, with Z options of 1,200 mm and 1,400 mm and W options of 1,200 mm and 1,500 mm.
04
20,000 kg (44,092 lb) on a 5,000×2,450 mm (196.9×96.5 in) table. The BM-4030 carries 16,000 kg (35,273 lb) and the BM-6030 carries 22,000 kg (48,501 lb).
More from Vision Wide
Other Vertical Machining Centers (VMC)
Feeler FDM-4232
Huron Tachyon 7 R
Leadwell V-40i

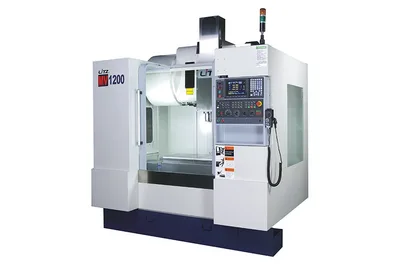

Litz MV-1200B
