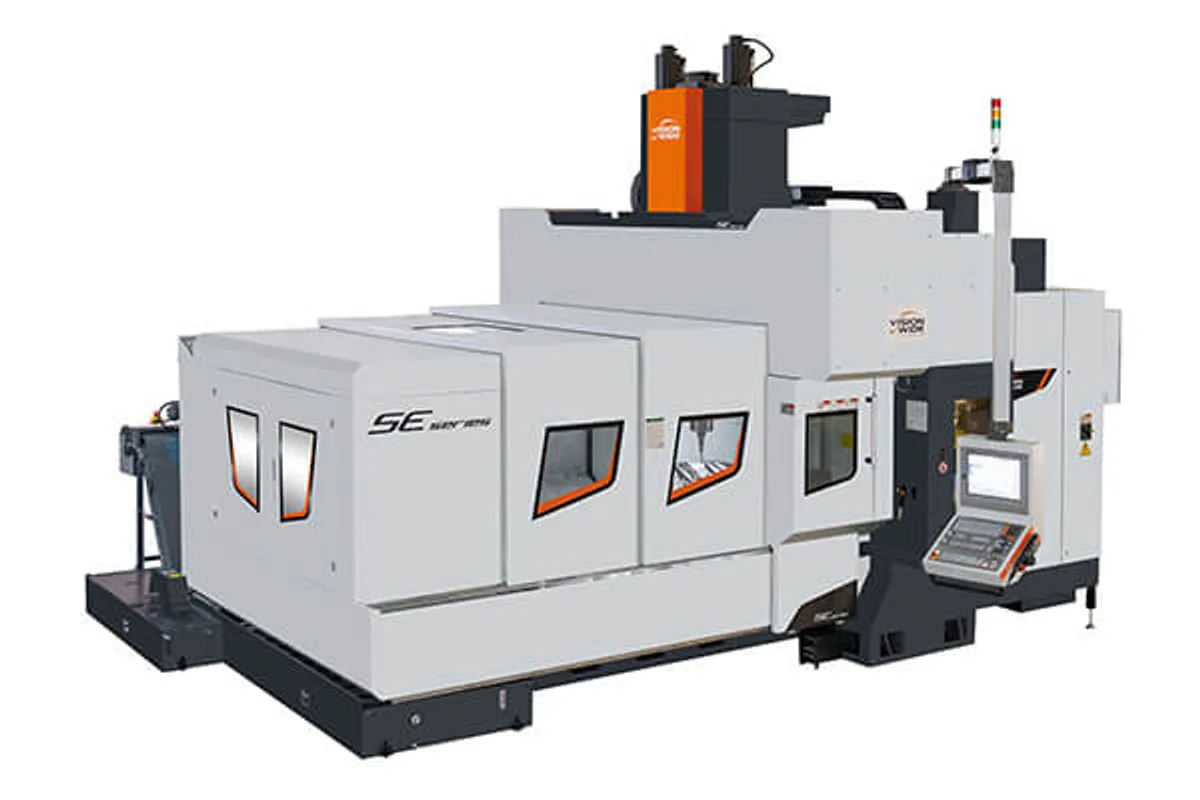

Vision Wide SE-2618
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide SE-2618 cost?
Price estimate
We do not have a price for the Vision Wide SE-2618 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Feed rate is the figure to notice on the Vision Wide SE-2618. Cutting feed is listed as 1-24,000 mm/min, the same as the standard 24 m/min rapid traverse, across 2,600 mm (102.4 in) of X and 1,800 mm (70.9 in) of Y.
In mold finishing that matters more than rapid speed does. A large cavity is finished in hours of continuous contouring with few rapid moves, and total time follows the feed the machine can hold through the curves. Vision Wide claims a 50% improvement in productivity for the SE and attributes it to the mechanism and structure; the page does not say what the comparison is against, so treat the figure as the maker's own.
The table is 2,800x1,600 mm (110.2x63.0 in) and rated for 12,000 kg (26,455 lb), enough for bumper and dashboard molds. If positioning moves between parts are a large share of the cycle, the optional 30 m/min rapid is available.
Standard tooling is a 24 Tools magazine with arm type ATC. Spindle power is 15/ 18.5 kW (20.1/ 24.8 hp) at 15,000 rpm. Auto tool length measurement and auto workpiece coordinate measurement are both on the option list, and on long unattended finishing runs they are worth having.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 mm (102.4 in) |
| Y Axis Travel | 1,800 mm (70.9 in) |
| Z Axis Travel | 800/1,000 mm (31.5/39.4 in) (Opt.) |
| Table Size | 2,800x1,600 mm (110.2x63.0 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Spindle Power Cont 30 Min | 15/ 18.5 kW (20.1/ 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24/30 m/min (Opt.) |
| Tool Capacity | 24 pcs (20/32/40 pcs Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Cutting feed up to 24,000 mm/min
- 2,800x1,600 mm (110.2x63.0 in) table for 12,000 kg (26,455 lb)
- Optional rapid traverse of 30 m/min
- Auto tool length measurement and auto workpiece coordinate measurement are available
Limitations
- Tool and workpiece measurement are options
- The stated 50% productivity improvement has no baseline on the maker's page
- 24 pcs in the standard magazine is small for long finishing programs
Best For
Frequently Asked Questions
01
The table lists 1-24,000 mm/min. Rapid traverse is 24/30 m/min (Opt.), so the standard rapid equals the top cutting feed and a 30 m/min rapid can be ordered.
02
The table measures 2,800x1,600 mm (110.2x63.0 in) and carries 12,000 kg (26,455 lb). Travels are 2,600 mm (102.4 in) in X, 1,800 mm (70.9 in) in Y and 800 mm in Z, with 1,000 mm of Z optional.
03
Not as standard. Auto tool length measurement and auto workpiece coordinate measurement are both listed under optional accessories for the SE series.
04
The maker states that the SE high-speed machining center had a 50% improvement in productivity, crediting its mechanism and structural performance. No reference machine or test is named.
