Vision Wide SV-800

Q: How much does the Vision Wide SV-800 cost?

The price estimate for the Vision Wide SV-800 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-sv-800#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

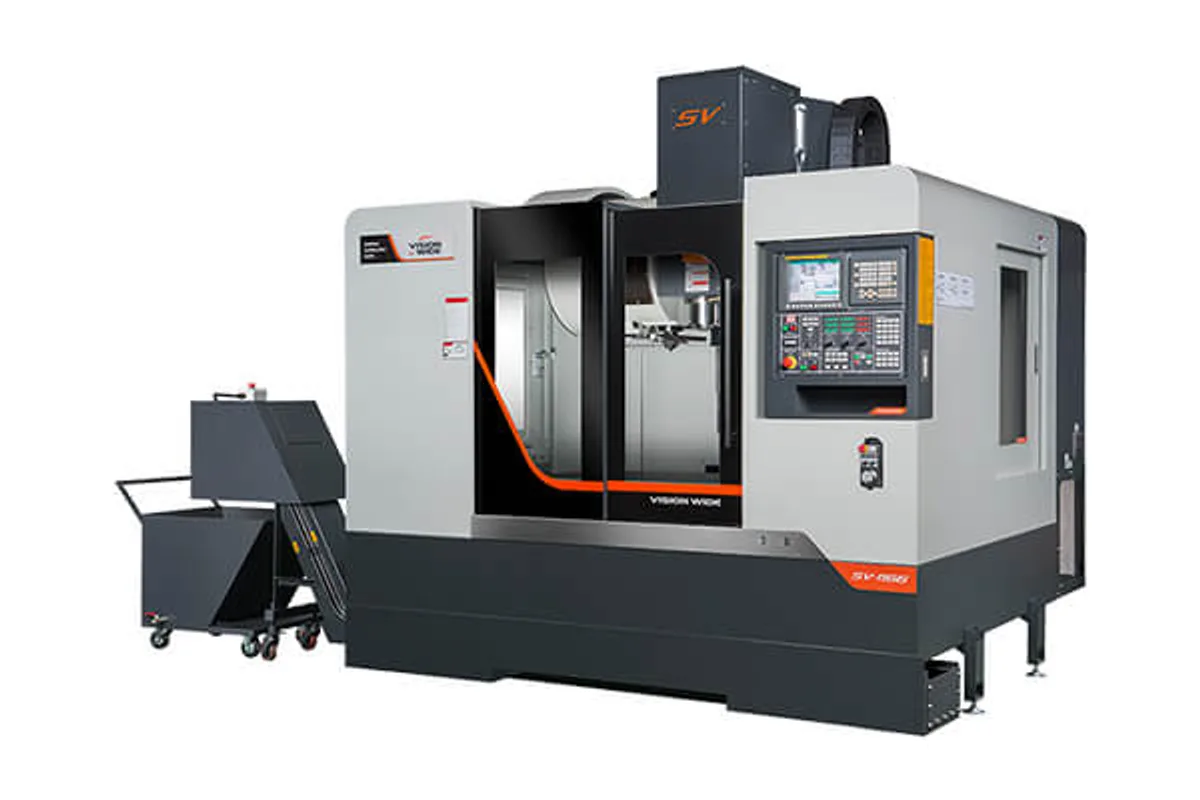

Vision Wide SV series (series photo on the maker's page for SV-800)

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

10,000 rpm (STD); 12,000 / 15,000 rpm

Tool Capacity

24 / 32 pcs

Table Size

900×450 mm (35.4×17.7 in)

x axis travel

800 mm (31.5 in)

y axis travel

500 mm (19.7 in)

z axis travel

510 mm (20.1 in)

How much does the Vision Wide SV-800 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide SV-800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vision Wide SV-800 is the smallest machine in the SV line of vertical machining centers: 800 mm (31.5 in) of X travel, 500 mm (19.7 in) of Y and 510 mm (20.1 in) of Z over a 900×450 mm (35.4×17.7 in) table. It is the entry point to a series that runs up to the SV-1680 with 1,600 mm (63.0 in) of X.

Speed is what sets this size apart. Rapids are 36 / 36 / 30 m/min, quicker than the 30 / 30 / 24 m/min of the next model up, the SV-855, and the cutting feed range is 1-11 m/min where every other SV stops at 1-10 m/min. Vision Wide drives X, Y and Z with motors coupled directly to the ball-screws and runs the Z axis without a counterbalance, which it says is for high acceleration.

The table carries 500 kg (1,102 lb). That is enough for a vise row or a small mold insert, but it is the lowest rating in the family, so weigh the fixture before planning a heavy block on it. The spindle is listed at 7.5/11 kW (10.1/14.8 hp), the continuous and short-time ratings, with 10,000 rpm as the standard speed and 12,000 / 15,000 rpm listed after it. In the accessory lists the 10,000 rpm #40 direct driven spindle is standard and the 12,000/15,000rpm versions are optional.

Tooling follows the same pattern: a 24 tools magazine with arm type ATC is standard and a 32 tools magazine is the option. Linear scale feedback on X, Y and Z, coolant through the spindle at 20/50bar and a rotary table are all on the optional list, so a quotation should name each one that the work needs.

Full Specifications

Parameter	Value
X Axis Travel	800 mm (31.5 in)
Y Axis Travel	500 mm (19.7 in)
Z Axis Travel	510 mm (20.1 in)
Table Size	900×450 mm (35.4×17.7 in)
Max Table Load	500 kg (1,102 lb)
Max Spindle Speed	10,000 rpm (STD); 12,000 / 15,000 rpm
Spindle Power Cont 30 Min	7.5/11 kW (10.1/14.8 hp)
Cutting Feed Rate	1-11 m/min
Rapid Traverse Xyz	36 / 36 / 30 m/min
Tool Capacity	24 / 32 pcs

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Rapids of 36 / 36 / 30 m/min, faster than the 30 / 30 / 24 m/min of the SV-855 and SV-1166
Cutting feed range of 1-11 m/min, the widest listed in the SV series
Standard spindle speed of 10,000 rpm with 12,000 / 15,000 rpm versions available as options
Roller type linear guideways on all three axes, with direct-driven ball-screws
24 tools arm type ATC as standard, 32 tools optional

Limitations

Table load is 500 kg (1,102 lb), the lowest in the SV series
Y travel of 500 mm (19.7 in) and a 450 mm (17.7 in) deep table limit fixtures to a single row of vises
Spindle power is 7.5/11 kW (10.1/14.8 hp); the SV-1480 and SV-1680 are listed at 11 / 15 kW (14.8 / 20.1 hp)
Linear scales, coolant through spindle and the 32 tools magazine are optional, not part of the base machine

Best For

Small mold inserts and electrodes within 800 mm (31.5 in) of X travel Short-cycle parts where 36 / 36 / 30 m/min rapids cut idle time Fixtures and parts up to 500 kg (1,102 lb) Small-tool finishing with the optional 12,000 / 15,000 rpm spindle

Frequently Asked Questions

01 What are the travels and table size of the Vision Wide SV-800?

X travel is 800 mm (31.5 in), Y is 500 mm (19.7 in) and Z is 510 mm (20.1 in). The table measures 900×450 mm (35.4×17.7 in) and is rated for 500 kg (1,102 lb).

02 How fast is the SV-800 compared with the SV-855?

The SV-800 lists rapids of 36 / 36 / 30 m/min on X, Y and Z and a cutting feed range of 1-11 m/min. The SV-855 lists 30 / 30 / 24 m/min and 1-10 m/min, in exchange for 850 mm (33.5 in) of X and 550 mm (21.7 in) of Y travel.

03 Which spindle does the SV-800 come with?

The standard accessory list names a 10,000 rpm #40 direct driven spindle, and the table gives 7.5/11 kW (10.1/14.8 hp) as the continuous and short-time power. 12,000/15,000rpm #40 direct driven spindles are listed as options.

04 How many tools does the SV-800 hold?

The table lists 24 / 32 pcs. The accessory lists make the split clear: a 24 tools magazine with arm type ATC is standard and a 32 tools magazine with arm type ATC is optional.
