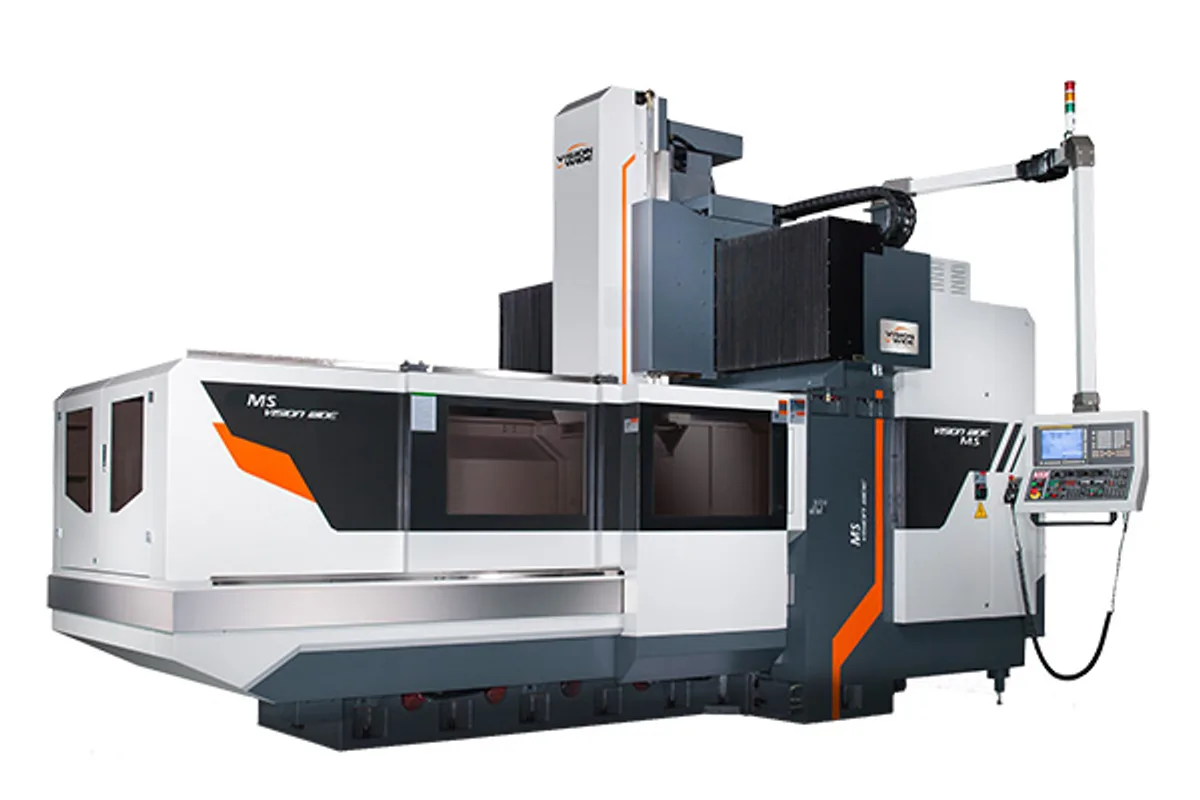

Vision Wide MS-4123
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way
max table load
spindle power cont 30 min
How much does the Vision Wide MS-4123 cost?
Price estimate
We do not have a price for the Vision Wide MS-4123 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide MS-4123 is a four-metre portal mill with long cross travel: 4,100 mm (161.4 in) of X, 2,300 mm (90.6 in) of Y, and a 4,000x1,500 mm (157.5x59.1 in) table for 12,000 kg (26,455 lb).
Coolant is worth planning on a machine that will spend its life in long milling cuts. A cutting fluid cooling system and a spindle cooling system are standard. Beyond that the list is all options: a spindle ring cutting coolant device, for use with no head attachment; a coolant through spindle system at 20/70 bar, for the vertical spindle; a coolant through tool holder interface with a 5/20 bar cutting fluid interface; and an oil mist cooling device. For face milling steel with carbide, many shops would choose mist or run dry and spend the money elsewhere. For drilling, the through-spindle system is the one that counts.
Both horizontal rapids are at their lowest on this model. The row reads X/Y/Z：18/20/15 m/min.
The spindle is the box way 2-step gear type, 6,000 rpm or optionally 4,000 rpm, on 18.5/22 kW (24.8/29.5 hp). Z travel is 800 mm, or 1,020 mm. A FANUC 0iMF PLUS controls the machine.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,100 mm (161.4 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel Box Way | 800/1,020 mm (31.5/40.2 in)(Opt.) |
| Table Size | 4,000x1,500 mm (157.5x59.1 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 6,000/4,000 rpm(Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z：18/20/15 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 32/40 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Tool Change | 32 pcs(Opt.)/40 pcs(Opt.)/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,000x1,500 mm (157.5x59.1 in) table for 12,000 kg (26,455 lb)
- Cutting fluid cooling and spindle cooling systems are standard
- Coolant through spindle system 20/70 bar and oil mist available
- 2,300 mm (90.6 in) of Y travel
Limitations
- Rapids of 18 m/min in X and 20 m/min in Y
- All through-tool and mist coolant items are options
- Tool magazine is not on the standard list
Best For
Frequently Asked Questions
01
Optional: spindle ring cutting coolant device (for no head attachment), coolant through spindle system 20/70 bar (vertical spindle), coolant through tool holder interface, a 5/20 bar tool holder cutting fluid interface and an oil mist cooling device.
02
Rapid traverse is X/Y/Z：18/20/15 m/min. The MS-3123 lists X/Y/Z : 24/20/15 m/min, so the longer table slows the X axis only.
03
The table is 4,000x1,500 mm (157.5x59.1 in). X travel is 4,100 mm (161.4 in), Y travel 2,300 mm (90.6 in), and Z travel 800 mm or optionally 1,020 mm.
04
12,000 kg (26,455 lb). That is the highest table load in the MS series, shared with the other models of 4,100 mm (161.4 in) X travel.
