Haas Automation Vertical Machining Centers

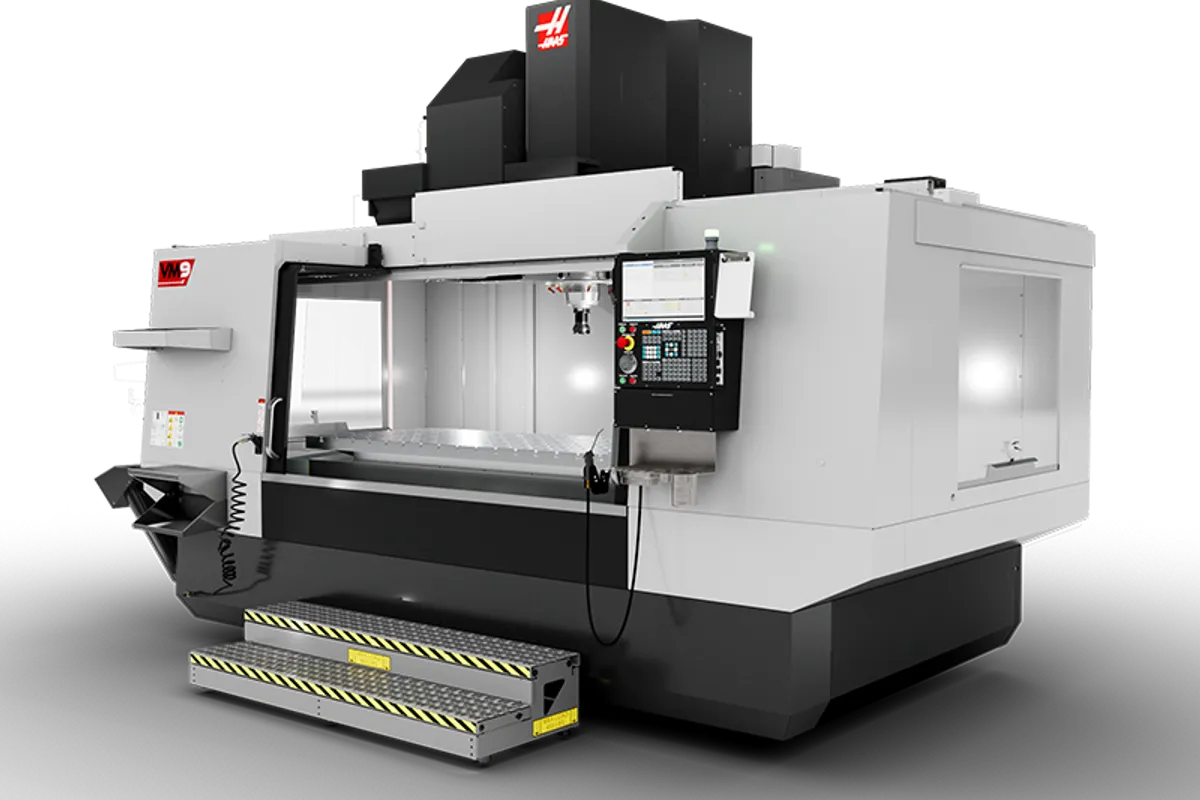

Haas VM-9-50

$300,000 - $370,000 Updated 2026-03-19

Key Specifications

X Travel

2,540 mm (100 in)

Y Travel

813 mm (32 in)

Z Travel

762 mm (30 in)

Max Spindle

10000 rpm

Spindle Taper

CT or BT 50

Tool Capacity

30+1 SMTC

Overview

The Haas VM-9-50 is the ultimate Haas mold machine: 2,540 x 813 x 762 mm (100 x 32 x 30 in) of travel with a CT/BT 50 spindle. One hundred inches of X-travel and 50-taper torque make this machine a dedicated heavy-roughing powerhouse for the longest molds and dies, providing capability that typically requires gantry mills costing three to five times as much.

The 50-taper inline direct-drive spindle runs at 7,500 RPM with 22.4 kW (30 hp) and delivers maximum torque for the heaviest roughing operations. Large shell mills, heavy face mills, and aggressive ramping strategies in P20, H13, and S7 tool steels are within the VM-9-50's comfort zone. The 50-taper tool holding eliminates any tool pull-out concerns on the heaviest interrupted cuts.

The table measures 2,540 x 711 mm (100 x 28 in) and holds 2,722 kg (6,000 lb). Spindle nose to table clearance goes from 102 mm to 864 mm (4 to 34 in). The 30+1 SMTC handles 50-taper tooling with 4.5-second tool-to-tool and 5.5-second chip-to-chip averages. Rapids run at 10.2 m/min (400 ipm) on all axes.

The machine weighs approximately 18,597 kg (41,000 lb), making it the heaviest machine in the Haas lineup. That mass translates to exceptional rigidity and vibration damping, critical for maintaining cut stability across 100 inches of travel during aggressive roughing.

At approximately $300,000-$370,000 configured, the VM-9-50 is in a class by itself for value. No other manufacturer offers 100 inches of travel with a 50-taper spindle at anything close to this price. For mold shops with the facility to handle a 41,000 lb machine, the VM-9-50 opens up in-house roughing on the very largest tooling.

Full Specifications

Parameter	Value
X-Axis Travel	2,540 mm (100 in)
Y-Axis Travel	813 mm (32 in)
Z-Axis Travel	762 mm (30 in)
Spindle Nose To Table Max	864 mm (34 in)
Spindle Nose To Table Min	102 mm (4 in)
Max Spindle Speed	10000 rpm
Spindle Taper	CT or BT 50
Spindle Motor Power	60.0 hp
Spindle Torque Max	339 Nm (250 ft-lbf) @ 500 RPM
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Tool Capacity	30+1 SMTC
Tool To Tool	4.20 s
Chip To Chip	6.30 s
Max Tool Diameter	4.0 in
Max Tool Weight	30.0 lb
Max Tool Length	16.00 in
Table Size	2,540 x 711 mm (100 x 28 in)
Table Load Max	2,722 kg (6,000 lb)
Max Cutting Feedrate	12.7 m/min (500 ipm)
Rapid Traverse X	10.2 m/min (400 ipm)
Rapid Traverse Y	10.2 m/min (400 ipm)
Rapid Traverse Z	10.2 m/min (400 ipm)
Max Thrust X	3400 lbf
Max Thrust Y	4100 lbf
Max Thrust Z	5600 lbf
Machine Weight	18,597 kg (41,000 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 100 A
Electrical High	440 VAC 3-phase, 50 A
Travels	S.A.E
X Axis	84.00 in
Y Axis	40.00 in
Z Axis	30.00 in
Spindle Nose To Table	5.0 in
Spindle	S.A.E
Max Rating	60.0 hp
Max Speed	10000 rpm
Max Torque	350.0 ft-lbf @ 700 rpm
Drive System	2-Speed Gearbox
Taper	CT or BT 50
Bearing Lubrication	Air / Oil Injection
Cooling	Coolant Jacket
Table	S.A.E
Length	84.0 in
Width	36.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.92 in
Number Of Std T Slots	7 in X and 17 in Y
Max Weight On Table	4000 lb
Feedrates	S.A.E
Max Cutting	500 ipm
Rapids On X	600 ipm
Rapids On Y	600 ipm
Rapids On Z	600 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	8.0 in
Max Tool Diameter Extra Large	10.0 in
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	105 A
Input Ac Voltage High	440 VAC
Full Load Amps High	53 A
Dimensions Shipping	S.A.E
Domestic Pallet	214.0 in x 120.0 in x 131.5 in
Export Crate	214.0 in x 123.0 in x 133.5 in
Machine Weight	28900 lb
Domestic Pallet W Ec Option	214 in x 120 in x 140 in
Export Crate W Ec Option	214 in x 123 in x 142 in
Weight W Ec Option	28900 lb
Haas Rotary	HAAS MACHINE
Ha2ts	VM-9/50
Ha5c	VM-9/50
Ha5c T	VM-9/50
Ha5c2	VM-9/50
Ha5c2 T	VM-9/50
Ha5c3	VM-9/50
Ha5c3 T	VM-9/50
Ha5c4	VM-9/50
Ha5c4 T	VM-9/50
Ha5cs	VM-9/50
Hqda5	VM-9/50
Hrc160	VM-9/50
Hrc210	VM-9/50
Hrt100	VM-9/50
Hrt160	VM-9/50
Hrt160 2	VM-9/50
Hrt160sp	VM-9/50
Hrt160ss	VM-9/50
Hrt200hs	VM-9/50
Hrt210	VM-9/50
Hrt210 2	VM-9/50
Hrt210ht	VM-9/50
Hrt210m	VM-9/50
Hrt210sp	VM-9/50
Hrt210ss	VM-9/50
Hrt210vm	VM-9/50
Hrt310	VM-9/50
Hrt310sp	VM-9/50
Hrt310ss	VM-9/50
Hrt450	VM-9/50
Hrt630	VM-9/50
Hrta5	VM-9/50
Hrta6	VM-9/50
Lt260	VM-9/50
Lt350	VM-9/50
T5c	VM-9/50
T5c2	VM-9/50
T5c3	VM-9/50
T5c4	VM-9/50
Th240	VM-9/50
Th450	VM-9/50
Tr160	VM-9/50
Tr160 2	VM-9/50
Tr200y	VM-9/50
Tr210	VM-9/50
Tr310	VM-9/50
Tr500ss	VM-9/50
Trt100	VM-9/50
Trt160	VM-9/50
Trt210	VM-9/50
Trt310	VM-9/50
Trt70	VM-9/50

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

100-inch X-travel with 50-taper is the ultimate roughing machine in the Haas VMC lineup
18,597 kg machine mass provides the most rigid platform Haas offers for chatter-free heavy cutting
50-taper eliminates tool pull-out on the most aggressive roughing strategies in hardened tool steel
6,000 lb table load handles the longest and heaviest mold bases and die assemblies
Base price around $300K replaces gantry mills costing $800K+ for many roughing applications
Liquid-cooled spindle maintains thermal stability during extended heavy cutting operations

Limitations

7,500 RPM ceiling severely limits finishing capability on smaller-diameter tools
400 ipm rapids across 100 inches means a full-length rapid takes over 6 seconds each way
41,000 lb weight demands reinforced foundations, overhead crane access, and professional heavy rigging
30 hp spindle power is unchanged from the smallest VM; the machine deserves more power
Finishing work almost certainly requires a separate high-speed machine

Best For

Dedicated heavy roughing on the longest automotive molds, door panels, and fascia tooling The largest industrial stamping dies and forming tools that exceed 80 inches of X-travel Mold shops bringing gantry-mill-class roughing in-house at a fraction of the capital cost Large die casting die roughing on tools for full-size automotive and appliance components Shops needing maximum 50-taper rigidity across the widest possible travel envelope

Frequently Asked Questions

01 What does a Haas VM-9-50 cost?

Base price is approximately $300,000. With through-spindle coolant, probing, and options, expect $340,000-$370,000 configured.

02 What is the difference between the VM-9-50 and the VM-9?

Same travel, same table. The VM-9-50 uses a 50-taper spindle at 7,500 RPM with higher torque for heavy roughing, while the VM-9 uses a 40-taper at 12,000 RPM for combined roughing and finishing. The -50 weighs about 3,000 lb more.

03 Can the VM-9-50 do finishing work?

Technically yes, but the 7,500 RPM ceiling limits surface speed on finishing tools under 2 inches in diameter. Virtually all VM-9-50 buyers pair it with a high-speed finishing machine.

04 What facility requirements does the VM-9-50 have?

At 41,000 lb, you need a reinforced foundation pad, overhead crane access rated for the machine weight, and adequate floor space for the 100-inch table plus service clearance. Consult a structural engineer before committing.
