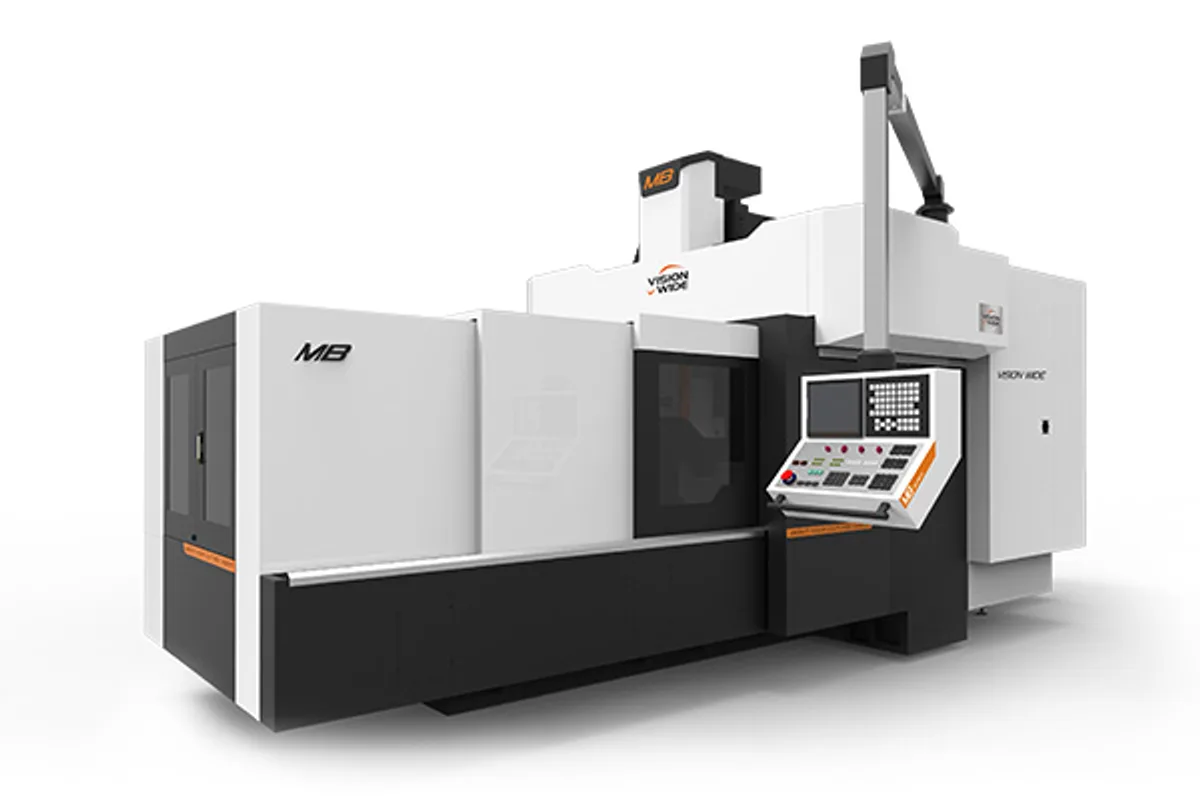

Vision Wide MB-2016
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide MB-2016 cost?
Price estimate
We do not have a price for the Vision Wide MB-2016 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide MB-2016 is the smallest of the MB bridge-type milling machines, a line the maker describes as designed with box ways with hand scraping, cutting vibration adapting and precise power transmission. Its figures are those of the VB-2016 machining center: 2,000 mm (78.7 in) of X, 1,600 mm (63.0 in) of Y and a 2,000×1,300 mm (78.7×51.2 in) table for 8,000 kg (17,637 lb).
The phrase about vibration is the one to hold on to. A box way slides on an oil film over a wide contact area, and that film soaks up the chatter an interrupted cut sends back through the tool. On a machine that will spend its days roughing steel and iron with large cutters, damping is worth more than speed, and the MB accepts the slower traverse that comes with it. Rapid traverse is 15 m/min on X, Y and Z; cutting feed is 1-7,000 mm/min.
The spindle is geared. A 4,000 rpm two-step gear spindle is standard and 6,000 rpm optional, on 18.5/22 kW (24.8/29.5 hp), with 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp) motors listed as options.
Z travel is 800 mm, or 1,020 mm as an option. The control is a Fanuc 0iMF PLUS.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 mm (78.7 in) |
| Y Axis Travel | 1,600 mm (63.0 in) |
| Z Axis Travel | 800/1,020 mm (31.5/40.2 in)(OPT.) |
| Table Size | 2,000×1,300 mm (78.7×51.2 in) |
| Max Table Load | 8,000 kg (17,637 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) OPT.)(30/37 kW (40.2/49.6 hp) OPT.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(OPT.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z：15 m/min |
| Tool Capacity | 32/40 pcs(OPT.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Hand-scraped box ways for damping in heavy cuts
- Geared spindle with motor options up to 30/37 kW (40.2/49.6 hp)
- 8,000 kg (17,637 lb) on a 2,000×1,300 mm (78.7×51.2 in) table
- 15 m/min rapids on all three axes
Limitations
- Cutting feed limited to 7,000 mm/min
- 6,000 rpm is the highest spindle speed, and it is optional
- Narrowest table of the series at 1,300 mm (51.2 in)
Best For
Frequently Asked Questions
01
A bridge-type milling machine with box ways on all axes. Vision Wide describes the MB series as designed with box ways with hand scraping, cutting vibration adapting and precise power transmission.
02
The specification tables are the same: 2,000 mm (78.7 in) by 1,600 mm (63.0 in) travels and a 2,000×1,300 mm (78.7×51.2 in) table for 8,000 kg (17,637 lb). The MB-2016 is listed among the maker's double column milling machines.
03
A 4,000 rpm two-step gear spindle as standard, 6,000 rpm as an option. Power is 18.5/22 kW (24.8/29.5 hp), with 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp) optional.
04
Rapid traverse is 15 m/min on X, Y and Z. Cutting feed is 1-7,000 mm/min. Z travel is 800 mm, or 1,020 mm with the option.
