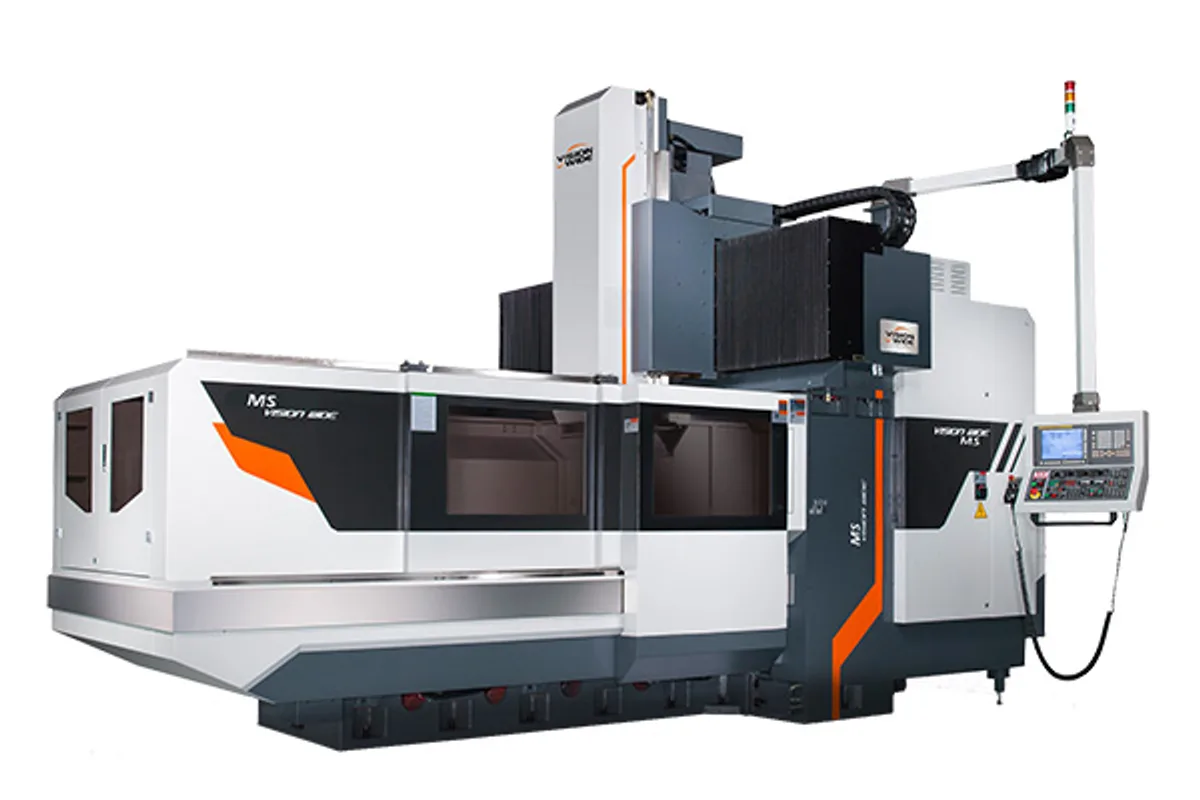

Vision Wide MS-3123
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way
max table load
spindle power cont 30 min
How much does the Vision Wide MS-3123 cost?
Price estimate
We do not have a price for the Vision Wide MS-3123 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The table and the option list say different things about spindles for the Vision Wide MS-3123, and a buyer should read both. The specification table has one spindle row for this model: the box way 2-step gear type at 6,000/4,000 rpm(Opt.). The rows for linear way direct-driven and built-in spindles, present for the narrower MS models, are empty here.
The series option list, which is common to all MS machines, still offers 8,000/ 10,000rpm belt-driven spindles and 10,000(BT-50)/ 12,000(BT-40)rpm direct-driven spindles. Taken together, the likeliest reading is that the wide-Y models are built with the box way head only, but the page does not say so outright. If a faster spindle matters, get the answer in writing for this model.
As listed, then, this is a geared heavy-milling machine. It has 3,100 mm (122.0 in) of X travel, 2,300 mm (90.6 in) of Y, and a 3,000x1,500 mm (118.1x59.1 in) table for 10,000 kg (22,046 lb). Spindle power is 18.5/22 kW (24.8/29.5 hp).
Rapids are X/Y/Z : 24/20/15 m/min, on roller ways in X and Y. Z travel is 800 mm, with 1,020 mm as an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel Box Way | 800/1,020 mm (31.5/40.2 in)(Opt.) |
| Table Size | 3,000x1,500 mm (118.1x59.1 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 6,000/4,000 rpm(Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z : 24/20/15 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 32/40 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Tool Change | 32 pcs(Opt.)/40 pcs(Opt.)/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,000x1,500 mm (118.1x59.1 in) table for 10,000 kg (22,046 lb)
- 2,300 mm (90.6 in) of Y travel for access beside the part
- 2-step gear spindle at 6,000 rpm, or 4,000 rpm optional
- X rapid of 24 m/min with roller ways
Limitations
- Faster spindles are in the series option list but not in this model's table
- Table width stays at 1,500 mm (59.1 in)
- Tool magazine is an option
Best For
Frequently Asked Questions
01
Its table lists only the box way 2-step gear spindle at 6,000/4,000 rpm(Opt.). The MS option list also names belt-driven and direct-driven spindles, without saying which models they fit. Confirm with Vision Wide.
02
X 3,100 mm (122.0 in), Y 2,300 mm (90.6 in), Z 800 mm with 1,020 mm optional. The table is 3,000x1,500 mm (118.1x59.1 in).
03
04
X/Y/Z : 24/20/15 m/min. Cutting feed is 1-10,000 mm/min. X and Y run on heavy duty roller ways and Z on a box way.
