AWEA HTP-6025

Q: How much does the AWEA HTP-6025 cost?

The price estimate for the AWEA HTP-6025 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-htp-6025#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

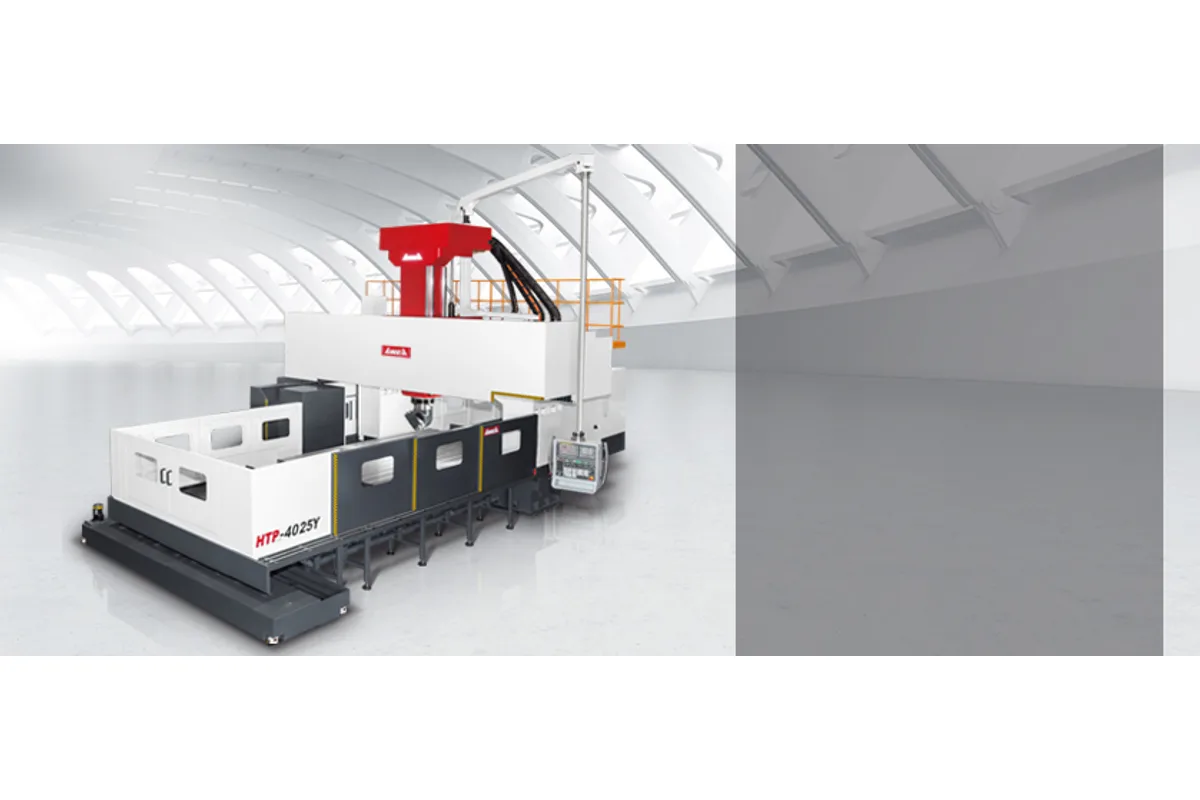

AWEA HTP series bridge type machining center (HTP-4025 shown)

Image: awea.com, AWEA

Key Specifications

Max Spindle

Gear Spindle 4,000 rpm

Spindle Taper

BBT50 (ISO 50)

Tool Capacity

32 T (Opt. 40 / 60 / 90 / 120)

Table Size

6,020 x 2,400 mm (237.0 x 94.5 in)

Spindle Power

22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)

x axis travel

6,000 mm (236.2 in)

How much does the AWEA HTP-6025 cost?

Price estimate

Uncertain

We do not have a price for the AWEA HTP-6025 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AWEA HTP-6025 is as long as the 2,700 mm (106.3 in) column spacing goes in the HTP series. X travel is 6,000 mm (236.2 in), Y is 2,500 mm (98.4 in), Z is 1,000 mm (39.4 in), and the 6,020 x 2,400 mm (237.0 x 94.5 in) table takes 20,000 kg (44,092 lb), the highest table rating AWEA prints for any HTP.

Length has a cost in three rows of the table. Cutting feed is 1 ~ 5 m/min (39 ~ 197 ipm), half the upper limit of the HTP-5025. VDI positioning accuracy is P ≤ 0.050 mm over full travel and repeatability is Ps ≤ 0.035 mm, the widest pair in the series. X rapid is 10 m/min (394 ipm).

So this is a machine for slow, heavy passes on long parts. The spindle suits that: a gear unit with 4,000 rpm, BBT50 (ISO 50) and 22 / 26 kW (29.5 / 34.9 hp). According to AWEA, the contact surfaces of column, base, cross beam and all sliding members are hand scraped, and the Y-axis runs on a stepped offset three guideways design meant to limit distortion from the weight of the headstock.

Nothing longer is built at this width: a 7,000 mm (275.6 in) X stroke exists only on the wider frames, starting with the HTP-7033. The HTP-6025 weighs 49,000 kg (108,025 lb) and carries a 900 liter coolant tank.

Full Specifications

Parameter	Value
X Axis Travel	6,000 mm (236.2 in)
Y Axis Travel	2,500 mm (98.4 in) (Opt. 3,200)
Z Axis Travel	1,000 mm (39.4 in) (Opt. 1,200 / 1,400)
Table Size	6,020 x 2,400 mm (237.0 x 94.5 in)
Max Table Load	20,000 kg (44,092 lb)
Distance Between Columns	2,700 mm (106.3 in)
Distance Spindle Nose to Table	200 ~ 1,200 mm (7.9 ~ 47.2 in) (Opt. 200 ~ 1,400 / 200 ~ 1,600)
Spindle Taper	BBT50 (ISO 50)
Spindle Motor Power	22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)
Max Spindle Speed	Gear Spindle 4,000 rpm
Rapid Traverse X	10 m/min (394 ipm)
Rapid Traverse Yz	12 m/min (472 ipm)
Cutting Feed Rate	1 ~ 5 m/min (39 ~ 197 ipm)
Tool Capacity	32 T (Opt. 40 / 60 / 90 / 120)
Max Tool Length	350 mm (13.8 in) (Opt. 400)
Max Tool Weight	20 kg (44 lb)
Max Tool Diameter (full magazine)	Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in)
Positioning Accuracy Jis B 6338	± 0.015 mm / Full Travel
Positioning Accuracy VDI 3441	P ≤ 0.050 mm / Full Travel
Repeatability Jis B 6338	± 0.003 mm
Repeatability VDI 3441	Ps ≤ 0.035 mm
Coolant Tank Capacity	900 liter
Lubrication Tank Capacity	6 liter
Hydraulic Tank Capacity	100 liter
Air Pressure Requirement	5 ~ 8 kg/cm²
Machine Weight	49,000 kg (108,025 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

20,000 kg (44,092 lb) table load, the top rating in the HTP series
6,000 mm (236.2 in) of X travel on a 6,020 x 2,400 mm (237.0 x 94.5 in) table
49,000 kg (108,025 lb), lighter than the 51,000 kg (112,434 lb) HTP-6033 with the same X stroke
Stepped offset three guideways on the Y-axis and hand scraped contact surfaces

Limitations

Cutting feed is limited to 1 ~ 5 m/min (39 ~ 197 ipm)
VDI figures of P ≤ 0.050 mm and Ps ≤ 0.035 mm are the widest of the series
2,500 mm (98.4 in) of Y on a 6,000 mm X stroke leaves a long, narrow envelope
No longer model at this column spacing; 7,000 mm (275.6 in) of X means moving to the HTP-7033

Best For

Long, narrow parts such as rails, beams and machine bases Heavy single workpieces up to 20,000 kg (44,092 lb) Low-speed roughing in steel and cast iron at up to 4,000 rpm Several shorter parts set up in a row along 6,000 mm (236.2 in)

Frequently Asked Questions

01 Why is the cutting feed of the HTP-6025 lower than on the shorter models?

AWEA's table gives 1 ~ 5 m/min (39 ~ 197 ipm) for the HTP-6025 and 1 ~ 10 m/min (39 ~ 394 ipm) for the HTP-4025 and HTP-5025. The maker does not state a reason. For planning, treat 5 m/min as the ceiling for programmed feed on this model.

02 What accuracy does AWEA list for the HTP-6025?

JIS: ± 0.015 mm over full travel for positioning and ± 0.003 mm for repeatability. VDI: P ≤ 0.050 mm over full travel and Ps ≤ 0.035 mm. The VDI values are wider than the P ≤ 0.030 mm and Ps ≤ 0.025 mm of the HTP-4025, as expected over a longer axis.

03 How heavy is the HTP-6025?

49,000 kg (108,025 lb). With a full table that is a further 20,000 kg (44,092 lb) on the foundation. The hydraulic tank holds 100 liter, the lubrication tank 6 liter and the coolant tank 900 liter.

04 What does the HTP-6025 do with chips over such a long table?

AWEA lists two coil type chip augers and a caterpillar type chip conveyor as standard on the HTP series. The coolant tank on this model is 900 liter; the wider HTP-6033 has 1,050 liter.
