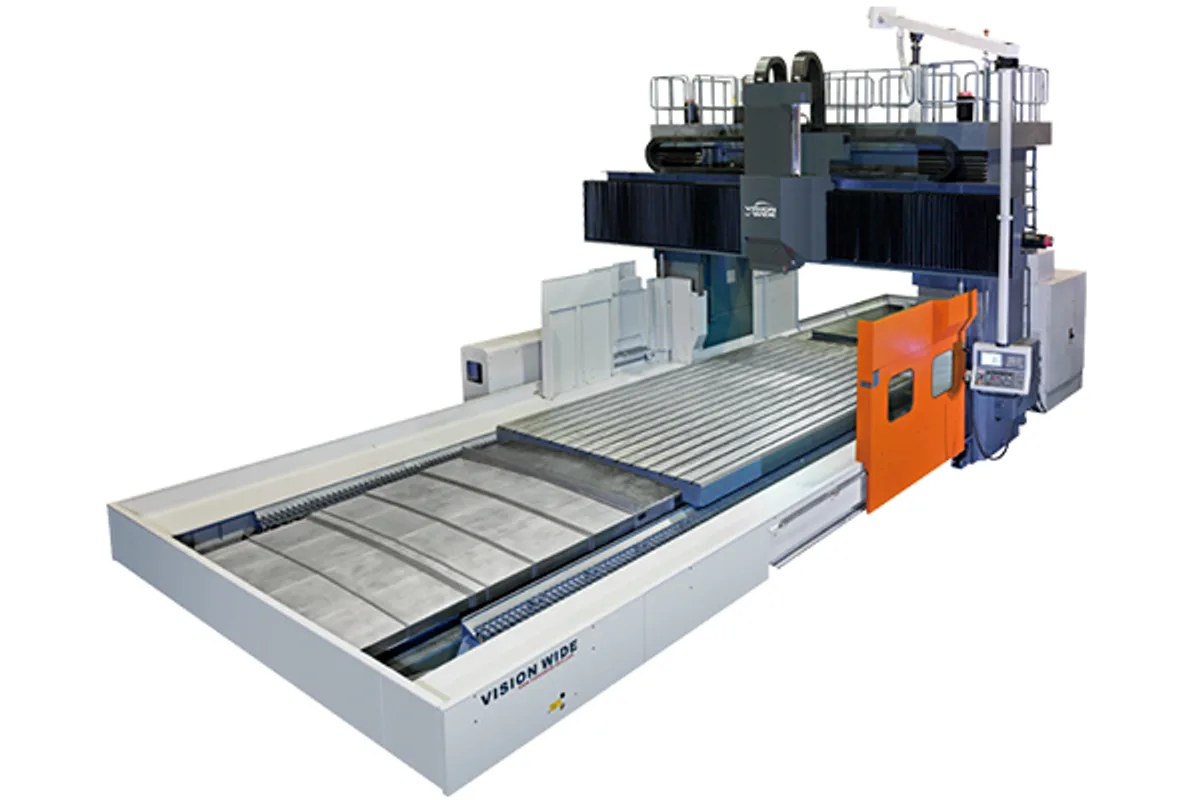

Vision Wide BM-8030 / 8037
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
max table load
How much does the Vision Wide BM-8030 / 8037 cost?
Price estimate
We do not have a price for the Vision Wide BM-8030 / 8037 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Five-face work on the Vision Wide BM-8030 / 8037 is automated around one attachment head. The maker's feature list names an automatic head magazine holding one head, an automatic horizontal and vertical tool changer, and the AH attachment, described as an automatic 5-face function with 700mm longer Y-travel.
Read together with the table, that explains the pair. The BM-8030 has 3,000 mm of Y travel. Its partner in the pair has 3,700 mm, the longer stroke that goes with the AH attachment, so that the head can park, pick up and work beside a part as wide as the 2,450 mm (96.5 in) table.
Tool changing follows the head. The standard changer is a floor-standing vertical type with 40 tools, expandable to 60 or 90. For the horizontal position the table lists two floor-standing vertical-horizontal changers, a fixed type and a random type, each optional with 40, 60 or 90 pcs.
The machine is eight metres long: 8,100 mm (318.9 in) of X travel and an 8,000×2,450 mm (315.0×96.5 in) table for 24,000 kg (52,910 lb). Rapids are 8 / 10 / 12 / 2 m/min. Z and W each have 1,000 mm of standard travel.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 8,100 mm (318.9 in) |
| Y Axis Travel | 3,000/ 3,700 mm (118.1/ 145.7 in) |
| Z Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,400 mm (55.1 in)(Opt.) |
| W Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,500 mm (59.1 in)(Opt.) |
| Table Size | 8,000×2,450 mm (315.0×96.5 in) |
| Max Table Load | 24,000 kg (52,910 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Direct Driven | 8,000 rpm(Opt.)/ 10,000 rpm(Opt.) |
| Cutting Feed Rate | XYZ:1-7,000 mm/min W:1,000 mm/min |
| Rapid Traverse Xyzw | 8 / 10 / 12 / 2 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 40/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Fixed | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Random | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Automatic head magazine and AH attachment for five-face machining
- Automatic horizontal and vertical tool changer
- Tool capacity of 40 pcs standard, 60 or 90 optional
- 8,000×2,450 mm (315.0×96.5 in) table for 24,000 kg (52,910 lb)
Limitations
- The head magazine holds one head
- Vertical-horizontal tool changers are optional
- X rapid of 8 m/min on an 8,100 mm (318.9 in) axis
Best For
Frequently Asked Questions
01
With the AH attachment, which the maker describes as an automatic 5-face function with 700mm longer Y-travel, an automatic head magazine for one head and an automatic horizontal and vertical tool changer.
02
A floor-standing vertical type at 40/60 pcs(Opt.)/90 pcs(Opt.), and two floor-standing vertical-horizontal types, fixed and random, each optional at 40, 60 or 90 pcs.
03
X is 8,100 mm (318.9 in). Y is 3,000 mm, or 3,700 mm on the longer-Y model of the BM-8030 / 8037. Z is 1,000 mm with 1,200 mm and 1,400 mm optional, and W is 1,000 mm with 1,200 mm and 1,500 mm optional.
04
24,000 kg (52,910 lb) on an 8,000×2,450 mm (315.0×96.5 in) table. The ten-metre BM-10030 carries 26,000 kg (57,319 lb).
