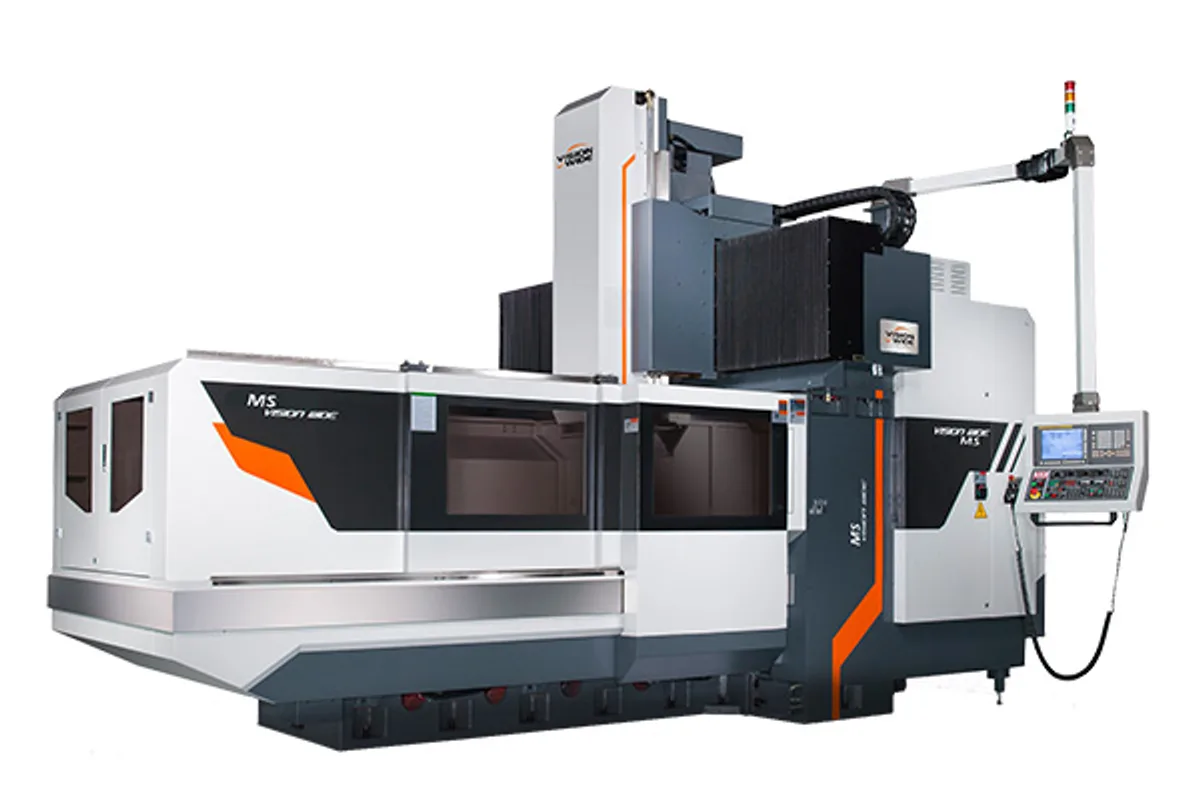

Vision Wide MS-2623
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way
max table load
spindle power cont 30 min
How much does the Vision Wide MS-2623 cost?
Price estimate
We do not have a price for the Vision Wide MS-2623 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Who buys a double-column machine without a tool magazine? The Vision Wide MS-2623 is a fair example to answer with. It has 2,600 mm (102.4 in) of X travel, 2,300 mm (90.6 in) of Y and a 2,500x1,500 mm (98.4x59.1 in) table for 9,000 kg (19,841 lb), and its standard accessory list contains no magazine.
The buyers are shops whose large-machine work is preparation. Squaring and facing mold base plates before they go to a finishing machine. Milling weld preparations and datum faces on fabrications. Opening up castings to a reference surface. These jobs run one large cutter for an hour at a time, and the operator changes tools by hand a few times a shift. For them, the money goes into the structure and the spindle.
On this model that means a box way Z axis and a 2-step gear spindle, 6,000 rpm as standard and 4,000 rpm as an option, with 18.5/22 kW (24.8/29.5 hp) or optionally 22/26 kW (29.5/34.9 hp).
If the work changes, the machine can follow. A 32/40/60 tools magazine with arm type ATC is an option, and the table lists floor-standing changers for this Y travel. Rapid traverse is X/Y/Z : 24/20/15 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 mm (102.4 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel Box Way | 800/1,020 mm (31.5/40.2 in)(Opt.) |
| Table Size | 2,500x1,500 mm (98.4x59.1 in) |
| Max Table Load | 9,000 kg (19,841 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 6,000/4,000 rpm(Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z : 24/20/15 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 32/40 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Tool Change | 32 pcs(Opt.)/40 pcs(Opt.)/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Simple build for single-tool preparation work
- 2,500x1,500 mm (98.4x59.1 in) table for 9,000 kg (19,841 lb)
- Box way Z axis with a 2-step gear spindle
- Tool magazine can be added as an option
Limitations
- Manual tool changes unless the optional magazine is ordered
- 6,000 rpm top speed; no high-speed spindle rows for this model
- Y rapid of 20 m/min against 24 m/min in X
Best For
Frequently Asked Questions
01
For work done with few tools, such as facing plates and milling datum surfaces. The MS-2623 has no magazine on its standard list; the SF-2623 machining center has the same travels and table with a tool changer.
02
2,500x1,500 mm (98.4x59.1 in) and 9,000 kg (19,841 lb). X travel is 2,600 mm (102.4 in) and Y travel 2,300 mm (90.6 in).
03
A 2-step gear spindle on a box way head: 6,000 rpm standard, 4,000 rpm optional. Power is 18.5/22 kW (24.8/29.5 hp), with 22/26 kW (29.5/34.9 hp) as an option.
04
Yes. The option list has a 32/40/60 tools magazine with arm type ATC, and the table lists floor-standing vertical and vertical-horizontal changers for this model.
