Haas VM-5

$155,000 - $200,000 Updated 2026-03-19

Key Specifications

X Travel

1,270 mm (50 in)

Y Travel

660 mm (26 in)

Z Travel

635 mm (25 in)

Max Spindle

12,000 RPM

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

30+1 SMTC

Overview

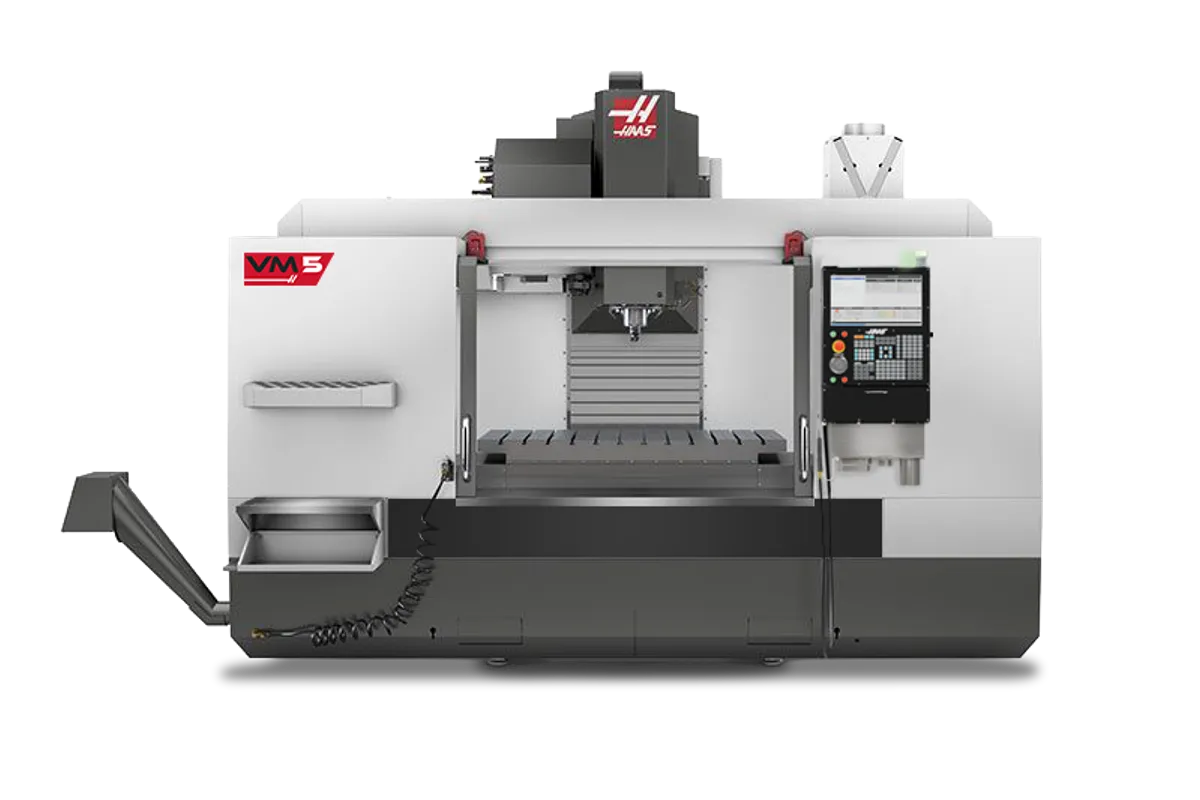

The Haas VM-5 slots between the VM-3 and VM-6 in the mold machine lineup, offering 1,270 x 660 x 635 mm (50 x 26 x 25 in) of travel. That 50-inch X-travel is a meaningful step up from the VM-3's 40 inches and handles larger automotive molds, die casting dies, and stamping tools that need more reach without jumping to the VM-6's 64-inch envelope.

The inline direct-drive spindle runs at 12,000 RPM with 22.4 kW (30 hp) and 122 Nm (90 ft-lbf) of torque at 2,000 RPM. Taper options include CT40, BT40, and HSK-A63, giving you the same high-speed finishing capability as the VM-3 and VM-6. The spindle is liquid-cooled on the VM-5 for better thermal stability during long finishing cycles.

The table measures 1,524 x 610 mm (60 x 24 in) and holds 1,814 kg (4,000 lb). Spindle nose to table clearance goes from 107 mm to 742 mm (4.2 to 29.2 in), giving you room for tall molds. Rapid traverse is 18.0 m/min (710 ipm) on all axes, matching the VM-3's speed and faster than the VM-6.

The 30+1 SMTC (50+1 optional) posts 2.8-second tool-to-tool and 3.6-second chip-to-chip averages. Axis thrust is 18,238 N (4,100 lbf) on all three axes. The machine weighs approximately 8,165 kg (18,000 lb), providing substantial mass for vibration damping in steel and hardened tool steel.

At a base price around $155,000, the VM-5 fills the gap between the $131K VM-3 and $186K VM-6. For shops machining molds in the 40-50 inch range, the VM-5 provides the travel, table capacity, and thermal stability needed without the cost and floor space of the VM-6. Specs derived from Haas VM-3 and VM-6 published data.

Full Specifications

Parameter	Value
X-Axis Travel	1,270 mm (50 in)
Y-Axis Travel	660 mm (26 in)
Z-Axis Travel	635 mm (25 in)
Spindle Nose To Table Max	742 mm (29.2 in)
Spindle Nose To Table Min	107 mm (4.2 in)
Max Spindle Speed	12,000 RPM
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Motor Power	30.0 hp
Spindle Torque Max	122 Nm (90 ft-lbf) @ 2,000 RPM
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Tool Capacity	30+1 SMTC
Tool To Tool	2.80 s
Chip To Chip	3.60 s
Max Tool Diameter	2.5 in
Max Tool Weight	12.0 lb
Max Tool Length	16.00 in
Table Size	1,524 x 610 mm (60 x 24 in)
Table Load Max	1,814 kg (4,000 lb)
T Slots	13 in Y, 6 in X, 100 mm (3.94 in) center distance
Max Cutting Feedrate	12.7 m/min (500 ipm)
Rapid Traverse X	18.0 m/min (710 ipm)
Rapid Traverse Y	18.0 m/min (710 ipm)
Rapid Traverse Z	18.0 m/min (710 ipm)
Max Thrust X	4100 lbf
Max Thrust Y	4100 lbf
Max Thrust Z	4100 lbf
Machine Weight	8,165 kg (18,000 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 70 A
Electrical High	440 VAC 3-phase, 35 A
Travels	S.A.E
X Axis	50.00 in
Y Axis	26.00 in
Z Axis	25.00 in
Spindle Nose To Table	4.2 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	12000 rpm
Max Torque	90.0 ft-lbf @ 2000 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Coolant Jacket
Table	S.A.E
Length	54.0 in
Width	24.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	3.94 in
Number Of Std T Slots	13 in Y and 6 in X
Max Weight On Table	4000 lb
Feedrates	S.A.E
Max Cutting	500 ipm
Rapids On X	710 ipm
Rapids On Y	710 ipm
Rapids On Z	710 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	5.0 in
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	168.0 in x 101.5 in x 109.0 in
Export Pallet	164.0 in x 91.5 in x 101.0 in
Machine Weight	12700 lb
Domestic Pallet W 501 Smtc	168 in x 102 in x 122 in
Export Pallet W 501 Smtc	164 in x 92 in x 101 in
Weight W 501 Smtc	12700 lb
Haas Rotary	HAAS MACHINE
Ha2ts	VM-5
Ha5c	VM-5
Ha5c T	VM-5
Ha5c2	VM-5
Ha5c2 T	VM-5
Ha5c3	VM-5
Ha5c3 T	VM-5
Ha5c4	VM-5
Ha5c4 T	VM-5
Ha5cs	VM-5
Hqda5	VM-5
Hrc160	VM-5
Hrc210	VM-5
Hrt160	VM-5
Hrt160 2	VM-5
Hrt160sp	VM-5
Hrt160ss	VM-5
Hrt200hs	VM-5
Hrt210	VM-5
Hrt210 2	VM-5
Hrt210ht	VM-5
Hrt210m	VM-5
Hrt210sp	VM-5
Hrt210ss	VM-5
Hrt210vm	VM-5
Hrt310	VM-5
Hrt310sp	VM-5
Hrt310ss	VM-5
Hrt450	VM-5
Hrta5	VM-5
Hrta6	VM-5
Lt260	VM-5
Lt350	VM-5
T5c	VM-5
T5c2	VM-5
T5c3	VM-5
T5c4	VM-5
Th240	VM-5
Th450	VM-5
Tr160	VM-5
Tr160 2	VM-5
Tr200y	VM-5
Tr210	VM-5
Tr310	VM-5
Trt100	VM-5
Trt160	VM-5
Trt210	VM-5
Trt310	VM-5
Trt70	VM-5

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

1,270 mm (50 in) X-travel covers molds that exceed the VM-3's 40-inch envelope without stepping up to the VM-6
Liquid-cooled 12,000 RPM spindle with HSK-A63 option provides thermal stability for long finishing cycles
8,165 kg machine mass delivers excellent vibration damping for chatter-free finishing in tool steel
1,814 kg (4,000 lb) table load handles large mold bases and heavy die casting dies
710 ipm rapids are faster than the VM-6's 600 ipm, reducing non-cutting time on traverse-heavy programs
Same 30 hp spindle and tool changer as the VM-3 and VM-6 for standardized tooling and programming

Limitations

30 hp spindle is unchanged from the VM-3 despite the larger envelope and heavier machine
710 ipm rapids across 50 inches of X-travel still mean noticeable non-cutting time on large molds
18,000 lb weight requires adequate floor loading and careful rigging planning
Thermal stability and accuracy won't match premium mold machines from Makino or Yasda

Best For

Mold shops machining injection molds, die casting dies, and stamping tools in the 40-50 inch range Automotive mold work where parts exceed the VM-3's travel but don't require the VM-6's full envelope Die and mold roughing and finishing in P20 and H13 tool steel on a single machine Shops stepping up from a VM-3 that need more X-travel for larger tools and mold halves Pattern and fixture shops working on medium-to-large one-off pieces in aluminum and steel

Frequently Asked Questions

01 What does a Haas VM-5 cost?

Base price is approximately $155,000. With through-spindle coolant, probing, high-speed machining software, and the 50+1 tool changer, expect $180,000-$200,000.

02 How does the VM-5 compare to the VM-3?

The VM-5 adds 254 mm (10 in) to X-travel (1,270 vs 1,016 mm) with a larger 60 x 24 inch table. The spindle is identical. The VM-5 has a liquid-cooled spindle and weighs about 5,000 lb more. Price difference is roughly $24K.

03 Should I choose the VM-5 or VM-6?

If your molds fit within 50 inches of X-travel, the VM-5 saves about $31K over the VM-6 and has faster rapids (710 vs 600 ipm). If you need 64 inches of travel, the VM-6 is the only option.

04 Can the VM-5 finish hardened tool steel?

Yes. The liquid-cooled 12,000 RPM spindle handles finishing in hardened H13 and P20 to HRC 50+. The liquid cooling helps maintain thermal stability during multi-hour finishing cycles. Consider HSK-A63 tooling for best runout and repeatability.
