Vision Wide Vertical Machining Centers (VMC)

Vision Wide HF-8035 / HF-8042

Q: How much does the Vision Wide HF-8035 / HF-8042 cost?

The price estimate for the Vision Wide HF-8035 / HF-8042 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-hf-8035-hf-8042#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

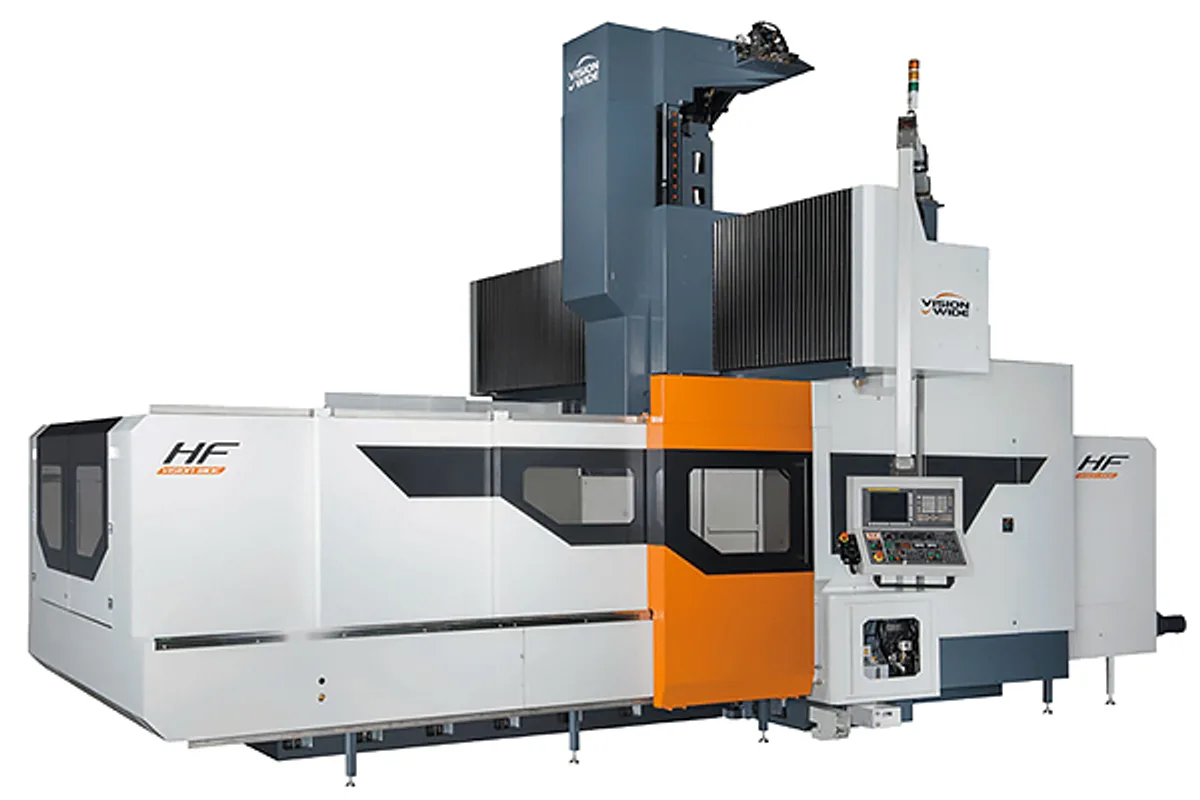

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

8,000×3,000 mm (315.0×118.1 in)

x axis travel

8,100 mm (318.9 in)

y axis travel

3,500/ 4,200 mm (137.8/ 165.4 in)

z axis travel box way single ballscrew

920 / 1,020 mm (36.2 / 40.2 in)(Opt.)

z axis travel linear way enclosed box ram dual ballscrews

1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)

max table load

32,000 kg (70,547 lb)

How much does the Vision Wide HF-8035 / HF-8042 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide HF-8035 / HF-8042 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vision Wide HF-8035 / HF-8042 is an eight-metre bridge machine for parts up to 32,000 kg (70,547 lb). X travel is 8,100 mm (318.9 in), the table is 8,000×3,000 mm (315.0×118.1 in), and Y travel is 3,500 mm (137.8 in) or 4,200 mm (165.4 in) depending on the model of the pair.

Parts that heavy tend to be tall, and the head options decide how tall. The standard box way head on a single ballscrew gives 920 mm of Z, or 1,020 mm as an option. The linear way and enclosed box ram heads on dual ballscrews are listed with 1,000 mm, 1,200 mm or 1,400 mm, all as options. For a deep casting that must be machined from the top down to its base flange with a 90º head, the 1,400 mm ram is the one that reaches.

Spindle choice follows the head. Gear spindles of 4,000 rpm or 6,000 rpm go with either group. The direct-driven 10,000 rpm spindle is listed only with the linear way and enclosed box ram heads.

Cutting feed is 1-7,000 mm/min and X/Y rapid 8 m/min. The motor is 22/26 kW (29.5/34.9 hp), and the 30/37 kW (40.2/49.6 hp) option suits a table of this capacity.

Full Specifications

Parameter	Value
X Axis Travel	8,100 mm (318.9 in)
Y Axis Travel	3,500/ 4,200 mm (137.8/ 165.4 in)
Z Axis Travel Box Way Single Ballscrew	920 / 1,020 mm (36.2 / 40.2 in)(Opt.)
Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews	1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)
Table Size	8,000×3,000 mm (315.0×118.1 in)
Max Table Load	32,000 kg (70,547 lb)
Spindle Power Cont 30 Min	22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram Direct Driven	10,000 rpm (Opt.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xy	8 m/min
Rapid Traverse Z Box Way or Linear Way	15 m/min
Rapid Traverse Z Enclosed Box Ram	12 m/min
Tool Capacity Vertical Tool Change	32 / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

32,000 kg (70,547 lb) table load
8,000×3,000 mm (315.0×118.1 in) table
Z travel up to 1,400 mm with the optional dual-ballscrew heads
Optional 30/37 kW (40.2/49.6 hp) motor

Limitations

Standard Z travel is 920 mm
Direct-driven 10,000 rpm spindle is not offered on the box way head
X/Y rapid of 8 m/min across the whole table

Best For

Deep castings machined from top to base flange Parts up to 32,000 kg (70,547 lb) Long structures needing five-face access

Frequently Asked Questions

01 How much Z travel can the Vision Wide HF-8035 have?

920 mm standard and 1,020 mm optional on the box way head with single ballscrew. The linear way and enclosed box ram heads with dual ballscrews offer 1,000 mm, 1,200 mm or 1,400 mm as options.

02 What does the HF-8035 / HF-8042 table carry?

32,000 kg (70,547 lb), on a table of 8,000×3,000 mm (315.0×118.1 in). The six-metre HF-6035 is rated for 28,000 kg (61,728 lb).

03 Which spindles are available for the HF-8035?

A box way 4,000rpm 2-step gear type spindle is standard and a 6,000 rpm gear spindle is optional. A direct-driven spindle at 10,000 rpm is optional with the linear way and enclosed box ram heads.

04 What are the HF-8035 and HF-8042 Y travels?

3,500 mm (137.8 in) for the HF-8035 and 4,200 mm (165.4 in) for the HF-8042. The table is 3,000 mm (118.1 in) wide under both.
