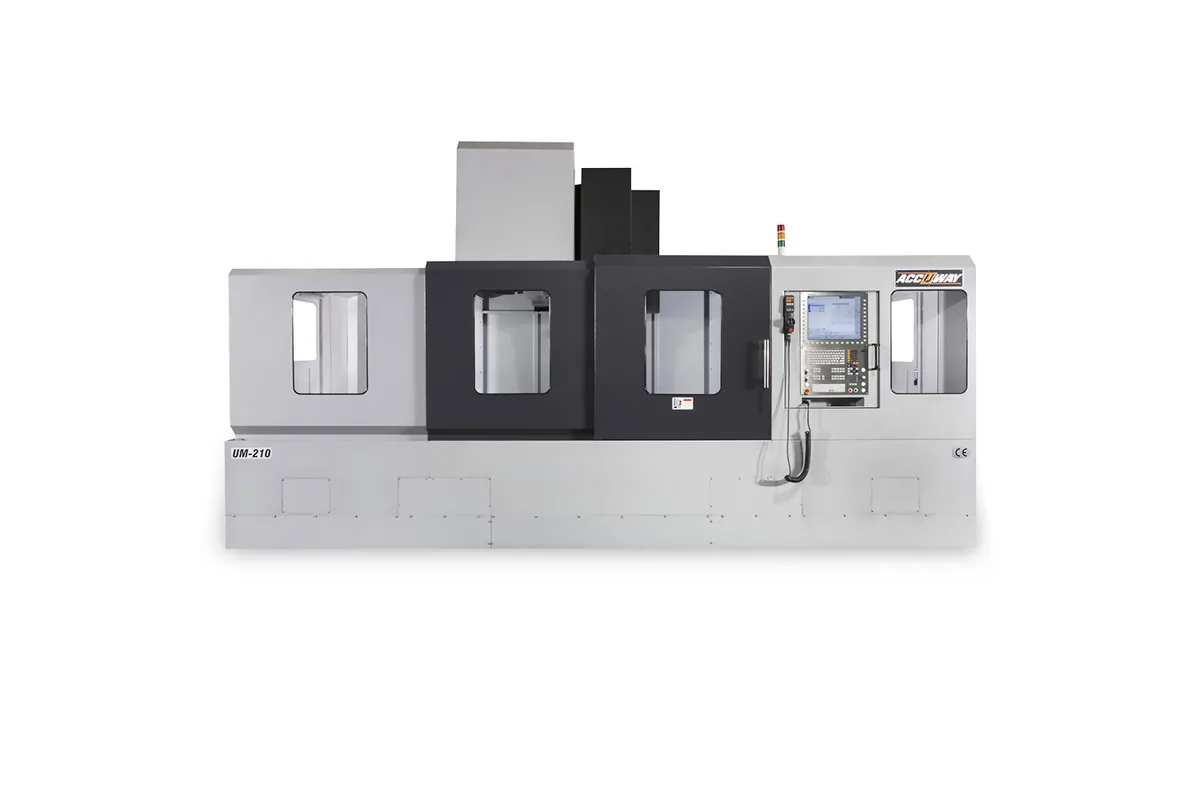

Accuway UM-210
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-210 cost?
Price estimate
We do not have a price for the Accuway UM-210 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UM-210 is the largest vertical machining center on the maker's product list: 2,100 mm (82.7 in) of X travel, 850 mm (33.5 in) of Y and 850 mm (33.5 in) of Z, with a 2,200 x 980 mm (86.6 x 38.6 in) table that carries 2,500 kg (5,511 lb). Net weight is 17,000 kg (37,478 lb).
It is also the only one with a bigger spindle motor. The row reads 22/26 kW (29.5/34.9 hp), continuous and 30 min, where the UM-160 and the smaller BT-50 models list 15/18.5 kW (20.1/24.8 hp). Power goes through a 2-step gearbox to a BT50 spindle at up to 6,000 rpm. For a machine meant to take long, heavy workpieces, that pairing gives the low-speed torque that large-diameter cutters need.
Structure follows the UM-160. Guideways are Box, ball screws are 50/50/50 mm (2.0/2.0/2.0 in), feed motors are 4/4/7 kW and rapid traverse is 15 m/min (591 in/min). The table has 8 T-slots, 18 mm wide at a 120 mm pitch. Between spindle nose and table there is 150~1,000 mm (5.9~39.4 in).
A part two metres long takes time to cross at that rapid rate, so the machine rewards long cuts over scattered small features. Tools are limited to 300 mm (11.8 in) in length and 15 kg (33 lb). Plan for 5.4 x 3.9 m of floor, 3.0 m of height, and rigging for the weight.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 6,000 rpm |
| Spindle Taper | BT50 |
| Spindle Bearing Inner Diameter | 90 mm (3.5 in) |
| Spindle Drive | 2-step gearbox |
| X Axis Travel | 2,100 mm (82.7 in) |
| Y Axis Travel | 850 mm (33.5 in) |
| Z Axis Travel | 850 mm (33.5 in) |
| Distance Spindle Nose to Table | 150~1,000 mm (5.9~39.4 in) |
| Table Size | 2,200 x 980 mm (86.6 x 38.6 in) |
| T-Slots | No. of T-slot x width x pitch: 8 x 18 x 120 mm |
| Max Table Load | 2,500 kg (5,511 lb) |
| Rapid Traverse X | 15 m/min (591 in/min) |
| Rapid Traverse Y | 15 m/min (591 in/min) |
| Rapid Traverse Z | 15 m/min (591 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 50/50/50 mm (2.0/2.0/2.0 in) |
| Guideway Bearing Type | Box |
| Tool Capacity | 24 (32) |
| Max Tool Weight | 15 kg (33 lb) |
| Max Tool Diameter (full magazine) | 105 mm (4.1 in) |
| Max Tool Diameter Without Adjacent Tools | 210 mm (8.3 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Ai Contour Control | AICC I |
| Spindle Motor Power | Cont. / 30min: 22/26 kW (29.5/34.9 hp) |
| Feed Motor Xyz | X/Y/Z: 4/4/7 kW (5.4/5.4/9.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 5.4 x 3.9 x 3.0 m (212.6 x 153.5 x 118.1 in) |
| Machine Weight | 17,000 kg (37,478 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,100 mm (82.7 in) of X travel and a 2,200 x 980 mm (86.6 x 38.6 in) table
- 22/26 kW (29.5/34.9 hp) spindle motor through a 2-step gearbox
- 2,500 kg (5,511 lb) maximum weight on the table
- Box guideways and 50/50/50 mm (2.0/2.0/2.0 in) ball screws
- 850 mm (33.5 in) of both Y and Z travel
Limitations
- 15 m/min (591 in/min) rapids over a 2,100 mm stroke
- Maximum tool length of 300 mm (11.8 in) despite 850 mm of Z
- 6,000 rpm top spindle speed
- 17,000 kg (37,478 lb) and a 5.4 x 3.9 m footprint
Best For
Frequently Asked Questions
01
X, Y and Z travels are 2,100 mm (82.7 in), 850 mm (33.5 in) and 850 mm (33.5 in). The table is 2,200 x 980 mm (86.6 x 38.6 in) with 8 T-slots and a 2,500 kg (5,511 lb) load limit. Spindle nose to table is 150~1,000 mm (5.9~39.4 in).
02
The motor is rated 22/26 kW (29.5/34.9 hp), continuous and 30 min. It drives a BT50 spindle through a 2-step gearbox to a maximum of 6,000 rpm. The bearing inner diameter is 90 mm (3.5 in) and spindle oil cooling is standard.
03
The UM-160 has 1,600 mm (63.0 in) of X, a 1,700 x 880 mm table, a 2,000 kg (4,409 lb) load, a 15/18.5 kW (20.1/24.8 hp) motor and weighs 15,000 kg (33,069 lb). The UM-210 is longer, carries more and has the 22/26 kW motor. Y, Z, rapids and guideways are the same.
04
An arm type changer with a magazine listed as 24 (32). Maximum tool diameter is 105 mm (4.1 in), or 210 mm (8.3 in) without adjacent tools; maximum length is 300 mm (11.8 in) and maximum weight 15 kg (33 lb).
