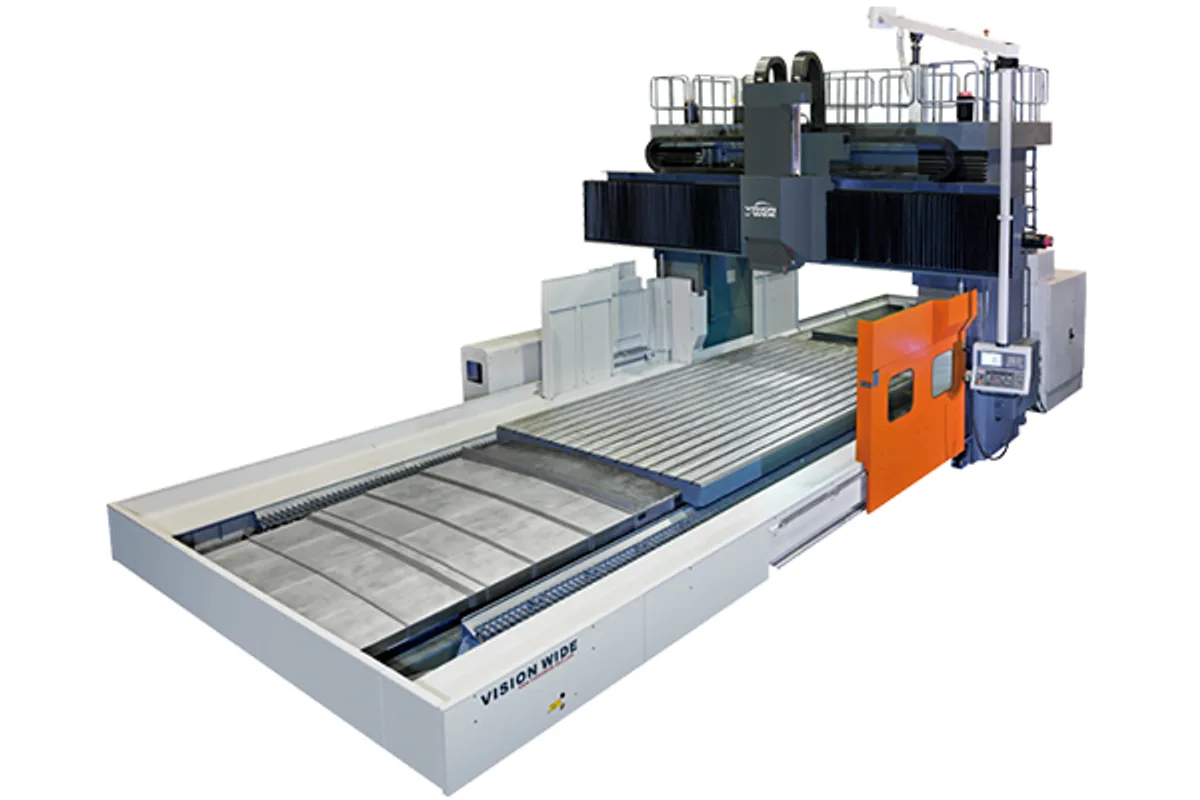

Vision Wide BM-4035 / 4042
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
max table load
How much does the Vision Wide BM-4035 / 4042 cost?
Price estimate
We do not have a price for the Vision Wide BM-4035 / 4042 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide BM-4035 / 4042 and the HF-4035 / HF-4042 occupy the same floor plan. Both have 4,100 mm (161.4 in) of X travel, a 4,000×3,000 mm (157.5×118.1 in) table for 20,000 kg (44,092 lb), and Y travel of 3,500 mm or 4,200 mm. The difference is in the vertical direction.
The HF-4035 has a fixed cross rail and 920 mm of Z on its standard head. The BM has a movable cross rail: 1,000 mm of W travel under 1,000 mm of Z, with options up to 1,500 mm and 1,400 mm. For low parts the two do the same job, and the fixed rail is the simpler machine. For tall parts, or a mix of tall and low ones, the BM can bring its rail down to each.
Vision Wide gives the BM a maximum workpiece height of 2,450mm and a maximum machining height of 2,400mm.
In the table the BM is the slower mover across, at 10 / 10 / 12 / 2 m/min for X, Y, Z and W, with a W cutting feed of 1,000 mm/min. Its standard changer is larger: a floor-standing vertical type tool magazine with 40 tools. Spindle power is 22/26 kW (29.5/34.9 hp) on both.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,100 mm (161.4 in) |
| Y Axis Travel | 3,500/ 4,200 mm (137.8/ 165.4 in) |
| Z Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,400 mm (55.1 in)(Opt.) |
| W Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,500 mm (59.1 in)(Opt.) |
| Table Size | 4,000×3,000 mm (157.5×118.1 in) |
| Max Table Load | 20,000 kg (44,092 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Direct Driven | 8,000 rpm(Opt.)/ 10,000 rpm(Opt.) |
| Cutting Feed Rate | XYZ:1-7,000 mm/min W:1,000 mm/min |
| Rapid Traverse Xyzw | 10 / 10 / 12 / 2 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 40/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Fixed | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Random | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- W-axis cross rail adds 1,000 mm of vertical travel to 1,000 mm of Z
- 4,000×3,000 mm (157.5×118.1 in) table for 20,000 kg (44,092 lb)
- Floor-standing tool magazine with 40 tools as standard
- Y travel of 3,500 mm or 4,200 mm
Limitations
- More complex than the fixed-rail HF-4035 for parts that are all low
- W rapid of 2 m/min and W cutting feed of 1,000 mm/min
- W travel of 1,500 mm and Z travel of 1,400 mm are options
Best For
Frequently Asked Questions
01
Table, load and X and Y travels match. The HF-4035 has a fixed rail with 920 mm of standard Z. The BM-4035 adds a W-axis cross rail with 1,000 mm of travel, for a stated maximum workpiece height of 2,450mm.
02
X is 4,100 mm (161.4 in). Y is 3,500/ 4,200 mm (137.8/ 165.4 in). Z is 1,000 mm with 1,200 mm and 1,400 mm optional; W is 1,000 mm with 1,200 mm and 1,500 mm optional.
03
A floor-standing vertical type tool magazine with 40 tools is standard, with 60 and 90 pcs as options. Vertical-horizontal changers, fixed or random, are optional at 40, 60 or 90 pcs.
04
Rapids are 10 / 10 / 12 / 2 m/min for X, Y, Z and W. Cutting feed is 1-7,000 mm/min on X, Y and Z and 1,000 mm/min on W.
