Vision Wide SM-2113

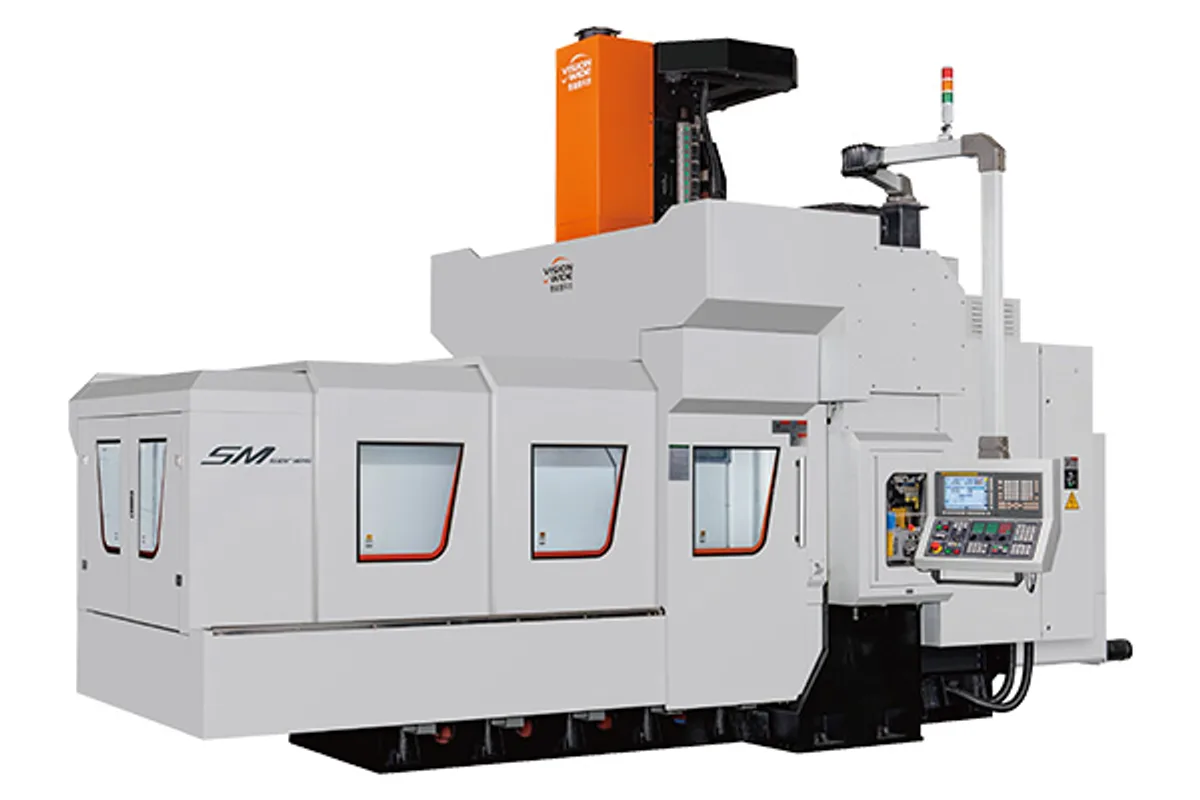

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide SM-2113 cost?
Price estimate
We do not have a price for the Vision Wide SM-2113 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide SM-2113 has almost the same table as the SE-2112 and a very different purpose. Both are double-column machines with roughly 2,100 mm of X travel; the SM-2113's table is 2,300×1,100 mm (90.6×43.3 in) and the SE-2112's is 2,300x1,100 mm (90.6x43.3 in).
The split is at the spindle. The SE-2112 runs 15,000 rpm. The SM-2113 runs 6,000 rpm through a 2-step gearbox, on the same 15 / 18.5 kW (20.1 / 24.8 hp) of motor power. Equal power at a lower speed means more torque at the tool, and Vision Wide describes the SM structure as designed for high-torque high-speed cutting applications. So one machine finishes molds and cuts aluminum, and the other roughs mold bases, machines steel plate and drills deep holes.
X travel is 2,100 mm (82.7 in), Y travel 1,300 mm (51.2 in), and the table load 8,000 kg (17,637 lb). Z is 800 mm, or 1,000 mm as an option.
A shop that does both kinds of work on similar-size parts could run the two side by side with shared fixtures. For a single machine, the optional 12,000 rpm built-in or 15,000 rpm direct driven spindle moves the SM toward the finishing side, at the expense of the geared drive.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,100 mm (82.7 in) |
| Y Axis Travel | 1,300 mm (51.2 in) |
| Z Axis Travel | 800 / 1,000 mm (31.5 / 39.4 in) |
| Table Size | 2,300×1,100 mm (90.6×43.3 in) |
| Max Table Load | 8,000 kg (17,637 lb) |
| Spindle Power Cont 30 Min | 15 / 18.5 kW (20.1 / 24.8 hp) |
| Max Spindle Speed | 6,000 rpm |
| Tool Capacity Vertical Tool Change | 24 / 32 / 40 pcs |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2-step gear spindle at 6,000 rpm for high-torque cutting
- 2,300×1,100 mm (90.6×43.3 in) table with 2,100 mm (82.7 in) of X travel
- 8,000 kg (17,637 lb) table load
- FANUC 0iMF Plus Controller as standard
Limitations
- Spindle speed is 6,000 rpm against 15,000 rpm on the SE-2112
- Y travel of 1,300 mm (51.2 in)
- High-speed spindles replace the geared drive; they are not an addition to it
Best For
Frequently Asked Questions
01
The SM-2113 has a 6,000 rpm 2-step gear spindle and an 8,000 kg (17,637 lb) table load. The SE-2112 has a 15,000 rpm spindle and carries 10,000 kg (22,046 lb). Spindle power is the same pair, 15 and 18.5 kW, on both.
02
2,100 mm (82.7 in) in X and 1,300 mm (51.2 in) in Y. Z travel is listed as 800 / 1,000 mm (31.5 / 39.4 in); the accessory lists show 800 mm as standard and 1,000 mm as optional.
03
The FANUC 0iMF Plus Controller is standard. The option list names FANUC 31iB / SIEMENS / HEIDENHAIN Controller as alternatives, without giving model numbers for the last two.
04
The table lists 24 / 32 / 40 pcs with a vertical type tool change. The tool magazine with arm type ATC 24 / 32 / 40 tools appears on the optional accessory list, so confirm which size is quoted.
