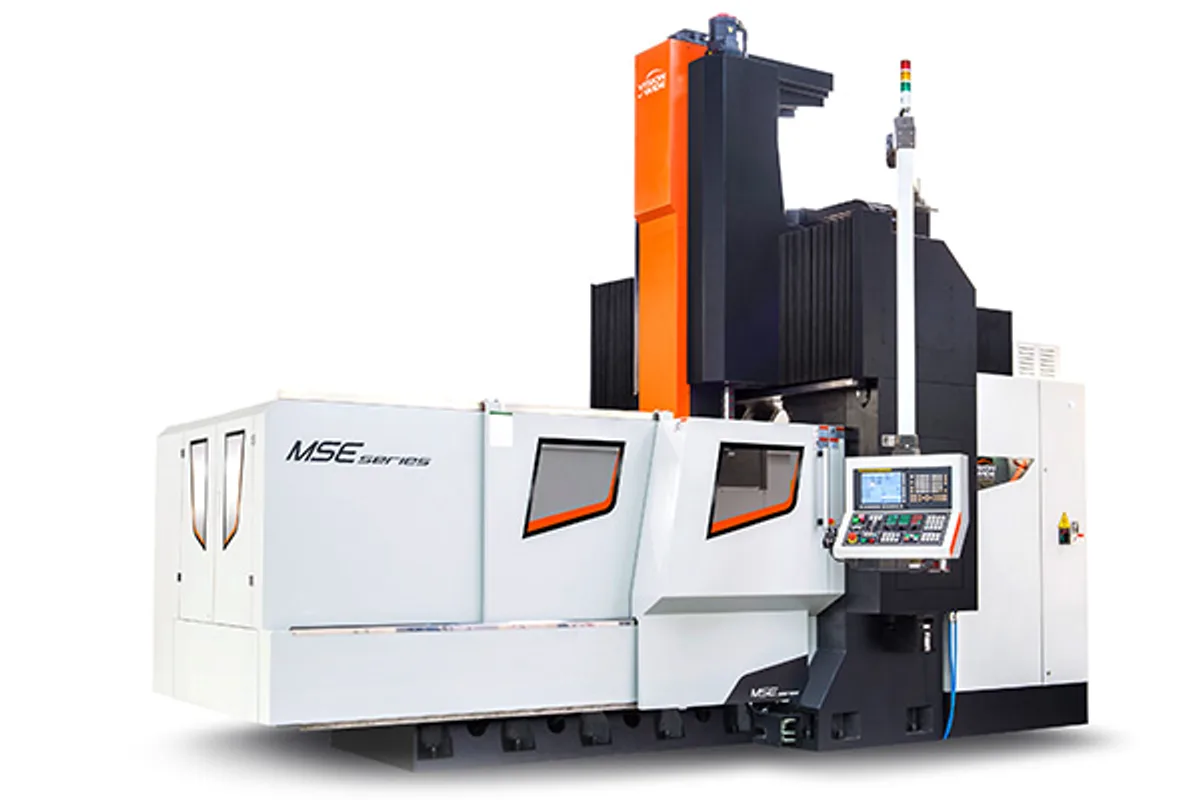

Vision Wide MSE-3118
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide MSE-3118 cost?
Price estimate
We do not have a price for the Vision Wide MSE-3118 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The largest MSE is the Vision Wide MSE-3118, with 3,100 mm (122.0 in) of X travel, 1,800 mm (70.9 in) of Y and a 3,300x1,600 mm (129.9x63.0 in) table for 14,000 kg (30,864 lb).
That load rating is higher than any MS milling machine carries. The MS-3120, a geared machine of similar length, takes 10,000 kg (22,046 lb) on a 3,000x1,800 mm (118.1x70.9 in) table. So the high-speed line is not the light-duty one where the table is concerned: a heavy steel mold base sits on the MSE-3118 without difficulty, and the 15,000 rpm spindle finishes it.
What the MSE gives up is torque and Y travel. Its spindle power is 15/ 18.5 kW (20.1/ 24.8 hp) on a BBT-40 taper as standard. Its Y travel, 1,800 mm, is the widest the series offers, and the table is longer than the X stroke.
The standard control is a Fanuc 0iMF PLUS, with FANUC 31iB or HEIDENHAIN TNC 620/640 as options. Feedback is by linear scale on all axes. Z travel is 800 mm, with 1,000 mm optional. Rapid traverse is 24 m/min, or 30 m/min, and cutting feed 1-24,000 mm/min. As with the rest of the series, the page lists no tool magazine.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 1,800 mm (70.9 in) |
| Z Axis Travel | 800/1,000 mm (31.5/39.4 in) (Opt.) |
| Table Size | 3,300x1,600 mm (129.9x63.0 in) |
| Max Table Load | 14,000 kg (30,864 lb) |
| Spindle Power Cont 30 Min | 15/ 18.5 kW (20.1/ 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24/30 m/min (Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 14,000 kg (30,864 lb) table load, above any MS milling machine
- 3,100 mm (122.0 in) of X travel at 15,000 rpm
- Linear scale feedback on all axes as standard
- HEIDENHAIN TNC 620/640 control available
Limitations
- Only one Y travel, 1,800 mm (70.9 in), at this length
- X travel is shorter than the 3,300x1,600 mm (129.9x63.0 in) table
- No tool magazine is listed
Best For
Frequently Asked Questions
01
The MSE-3118: 3,100 mm (122.0 in) of X, 1,800 mm (70.9 in) of Y, and a 3,300x1,600 mm (129.9x63.0 in) table rated for 14,000 kg (30,864 lb).
02
The MSE-3118 has a 15,000 rpm spindle with 15/ 18.5 kW (20.1/ 24.8 hp) and carries 14,000 kg (30,864 lb). The MS-3120 has a 6,000 rpm geared spindle with 18.5/22 kW (24.8/29.5 hp) and carries 10,000 kg (22,046 lb).
03
Fanuc 0iMF PLUS is standard. FANUC 31iB and HEIDENHAIN TNC 620/640 controllers are options, and the spindle options differ between FANUC and HEIDENHAIN.
04
800/1,000 mm (31.5/39.4 in) (Opt.): 800 mm standard, 1,000 mm optional. No spindle-nose-to-table distance is published, so check clearance for tall molds.
