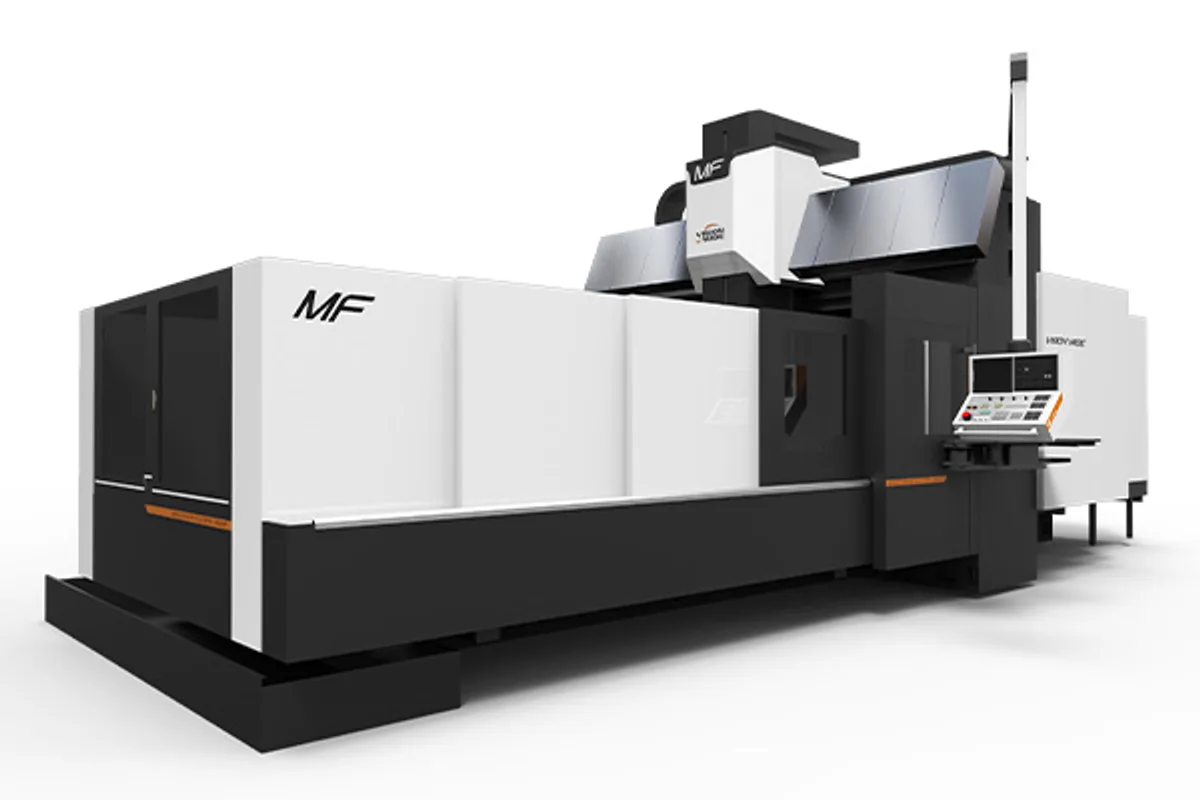

Vision Wide MF-3026
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide MF-3026 cost?
Price estimate
We do not have a price for the Vision Wide MF-3026 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two of the three axes on the Vision Wide MF-3026 are driven directly. Vision Wide describes a direct-driven device on the Y-Z axis transmission, with big servo motors, and says it ensures the best accuracy and acceleration.
Y and Z are the axes that carry the cutter, as opposed to the part. The saddle and head are lighter than a loaded table, and a motor coupled straight to the screw moves them without the lag and lash of a belt or gearbox. That gives quick, exact reversals, which is what a milled contour or a rigid-tapped hole needs. The table axis, heavier and slower, is geared instead.
On this model the Y axis has more to do. Y travel is 2,600 mm (102.4 in), where the MF-3000 has 2,300 mm (90.6 in), over the same 3,200×2,050 mm (126.0×80.7 in) table. The extra stroke takes the head beyond the table edges, for a head attachment or simply for loading room.
X travel is 3,200 mm (126.0 in) and table load 11,000 kg (24,250 lb). All three axes rapid at 12 m/min. The spindle is a 4,000 rpm gear type with 18.5/22 kW (24.8/29.5 hp), and Z travel is 920 mm, or 1,020 mm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,200 mm (126.0 in) |
| Y Axis Travel | 2,600 mm (102.4 in) |
| Z Axis Travel | 920/1,020 mm (36.2/40.2 in)(Opt.) |
| Table Size | 3,200×2,050 mm (126.0×80.7 in) |
| Max Table Load | 11,000 kg (24,250 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.) (30/37 kW (40.2/49.6 hp) Opt.) |
| Max Spindle Speed | 4,000/6,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z:12 m/min |
| Tool Capacity | 40/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Direct-driven Y and Z axes with large servo motors
- 2,600 mm (102.4 in) of Y travel over a 2,050 mm (80.7 in) wide table
- 11,000 kg (24,250 lb) table load
- 12 m/min rapids on all three axes
Limitations
- No acceleration figure supports the drive claim
- Table is no larger than on the MF-3000
- Cutting feed of 1-7,000 mm/min
Best For
Frequently Asked Questions
01
By a direct-driven device on the Y-Z axis transmission with big servo motors. Vision Wide says this ensures the best accuracy and acceleration; no figures are given.
02
In Y travel: 2,600 mm (102.4 in) on the MF-3026 and 2,300 mm (90.6 in) on the MF-3000. The table, the 11,000 kg (24,250 lb) load, the spindle and the rapids are the same.
03
X 3,200 mm (126.0 in), Y 2,600 mm (102.4 in) and Z 920/1,020 mm (36.2/40.2 in)(Opt.), the longer Z being optional.
04
The VF-3026, which has the same travels, the same 3,200×2,050 mm (126.0×80.7 in) table and the same 11,000 kg (24,250 lb) load in its specification table.
