Vision Wide Vertical Machining Centers (VMC)

Vision Wide HF-4035 / HF-4042

Q: How much does the Vision Wide HF-4035 / HF-4042 cost?

The price estimate for the Vision Wide HF-4035 / HF-4042 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-hf-4035-hf-4042#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

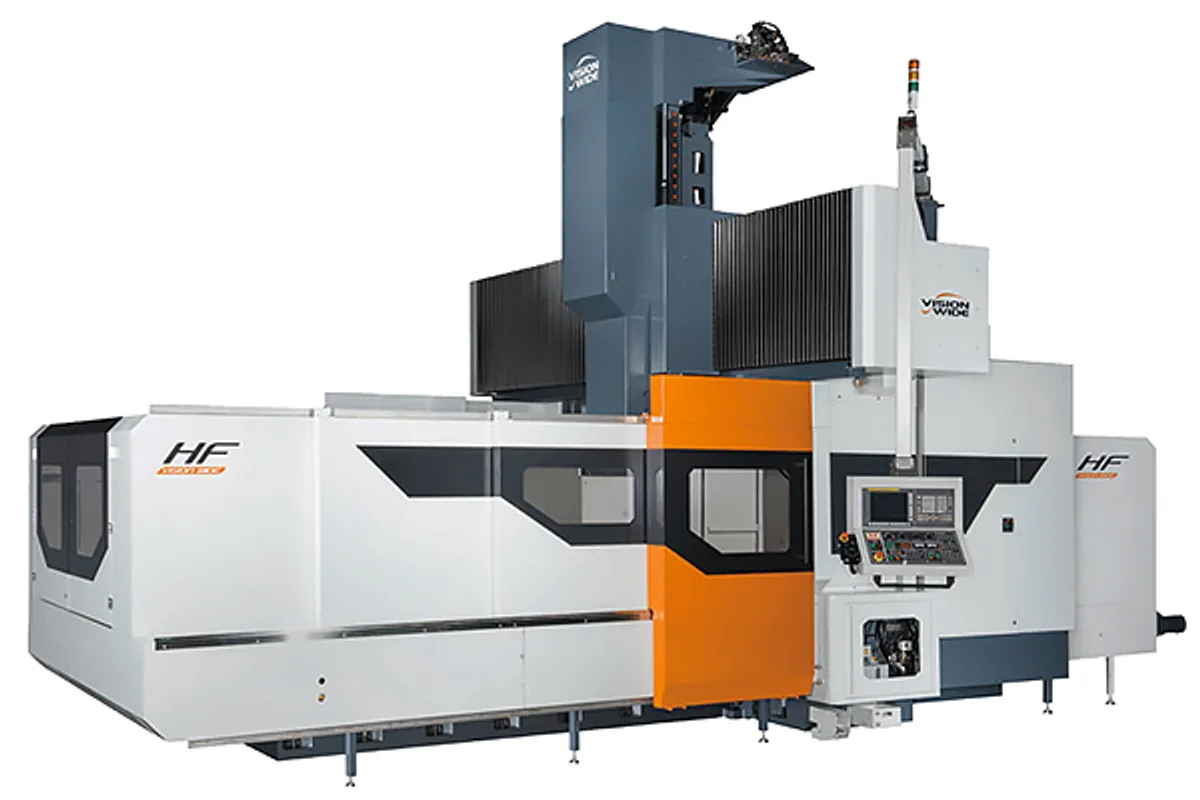

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

4,000×3,000 mm (157.5×118.1 in)

x axis travel

4,100 mm (161.4 in)

y axis travel

3,500/ 4,200 mm (137.8/ 165.4 in)

z axis travel box way single ballscrew

920 / 1,020 mm (36.2 / 40.2 in)(Opt.)

z axis travel linear way enclosed box ram dual ballscrews

1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)

max table load

20,000 kg (44,092 lb)

How much does the Vision Wide HF-4035 / HF-4042 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide HF-4035 / HF-4042 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vision Wide HF-4035 / HF-4042 begins where the NF series stops in width. Its table is 4,000×3,000 mm (157.5×118.1 in), and Y travel is 3,500 mm (137.8 in) on the HF-4035 or 4,200 mm (165.4 in) on the HF-4042. The widest four-metre NF, the NF-4032, has a 4,000×2,450 mm (157.5×96.5 in) table.

It is a heavier machine as well as a wider one. Table load is 20,000 kg (44,092 lb), against 16,000 kg (35,273 lb) for the NF-4032, and the standard spindle motor is 22/26 kW (29.5/34.9 hp), a rating that is an option on the NF. The one larger motor listed is 30/37 kW (40.2/49.6 hp).

The concept is the same automatic five-face machining. Vision Wide says it developed tool center point compensation, an auto multi-angle head attachment and an auto tool change system for the purpose, and lists auto head change for a 90º head, an extension head and a universal head.

What the size takes away is speed. Cutting feed is 1-7,000 mm/min and the X/Y rapid 10 m/min. X travel is 4,100 mm (161.4 in), and the standard head is the box way type with a 4,000 rpm gear spindle and 920 mm of Z.

Full Specifications

Parameter	Value
X Axis Travel	4,100 mm (161.4 in)
Y Axis Travel	3,500/ 4,200 mm (137.8/ 165.4 in)
Z Axis Travel Box Way Single Ballscrew	920 / 1,020 mm (36.2 / 40.2 in)(Opt.)
Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews	1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)
Table Size	4,000×3,000 mm (157.5×118.1 in)
Max Table Load	20,000 kg (44,092 lb)
Spindle Power Cont 30 Min	22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram Direct Driven	10,000 rpm (Opt.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xy	10 m/min
Rapid Traverse Z Box Way or Linear Way	15 m/min
Rapid Traverse Z Enclosed Box Ram	12 m/min
Tool Capacity Vertical Tool Change	32 / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

4,000×3,000 mm (157.5×118.1 in) table, wider than any four-metre NF table
20,000 kg (44,092 lb) table load
22/26 kW (29.5/34.9 hp) spindle motor as standard
Tool center point compensation and auto multi-angle head attachment, per the maker

Limitations

Cutting feed of 1-7,000 mm/min
X/Y rapid of 10 m/min on a 4,100 mm (161.4 in) axis
Standard Z travel of 920 mm under a very wide bridge

Best For

Wide, heavy parts up to 20,000 kg (44,092 lb) Automatic five-face machining of large housings and frames Work too wide for the 4,000×2,450 mm (157.5×96.5 in) table of the NF-4032

Frequently Asked Questions

01 How does the Vision Wide HF-4035 differ from the NF-4032?

The HF-4035 has a 4,000×3,000 mm (157.5×118.1 in) table, 20,000 kg (44,092 lb) of load and 3,500 mm (137.8 in) of Y. The NF-4032 has a 4,000×2,450 mm (157.5×96.5 in) table, 16,000 kg (35,273 lb) and 3,200 mm (126.0 in) of Y.

02 What is the difference between the HF-4035 and HF-4042?

Y travel. The shared column reads 3,500/ 4,200 mm (137.8/ 165.4 in), so the HF-4035 has 3,500 mm and the HF-4042 has 4,200 mm. All other rows apply to both.

03 What spindle power does the HF-4035 / HF-4042 have?

22/26 kW (29.5/34.9 hp), continuous and short-time, with 30/37 kW (40.2/49.6 hp) as an option. The standard spindle is a box way 4,000rpm 2-step gear type.

04 How fast is the HF-4035?

X/Y rapid traverse is 10 m/min and cutting feed is 1-7,000 mm/min. Z rapid is 15 m/min with the box way or linear way head and 12 m/min with the enclosed box ram.
