Pinnacle QV209

Q: How much does the Pinnacle QV209 cost?

The price estimate for the Pinnacle QV209 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-qv209#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

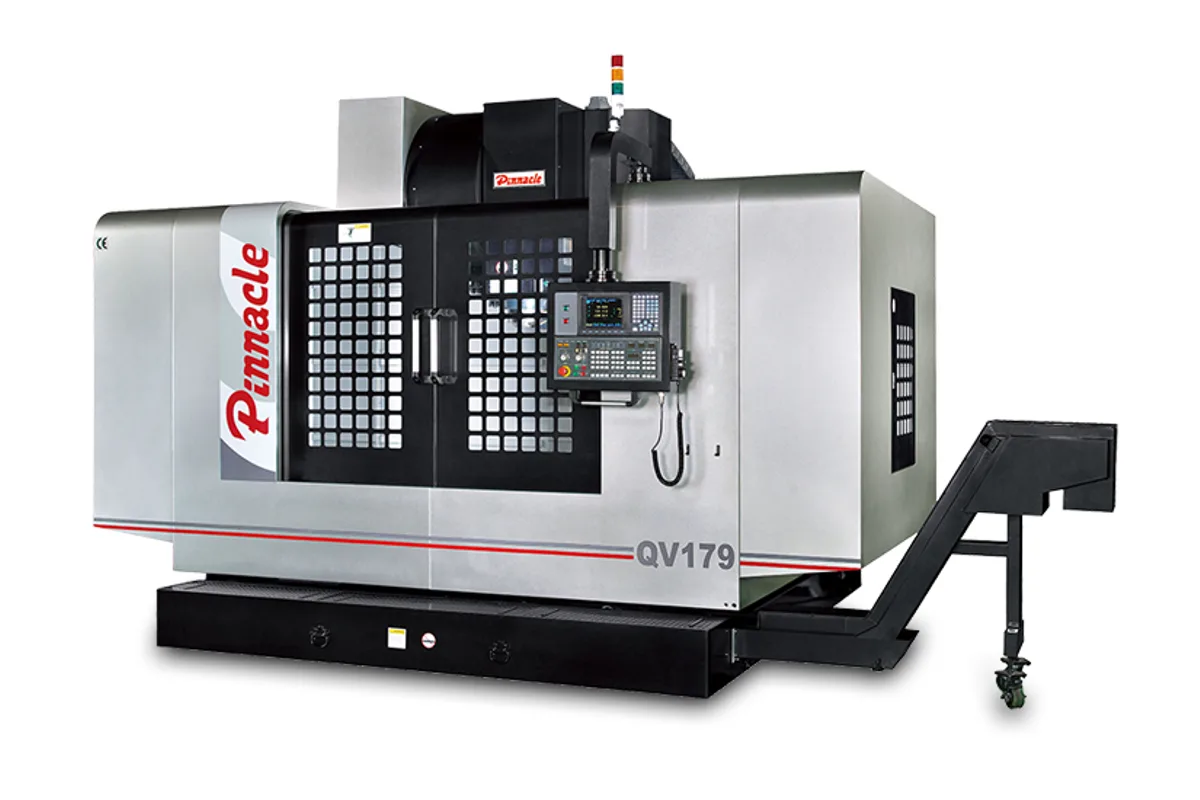

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO40; ISO50

Tool Capacity

ISO40: 24; ISO50: 24 / 32

Table Size

2,200 x 850 mm (86.6 x 33.5 in)

max table load

3,000 kg (6,614 lb)

distance spindle nose to table

150 ~ 1,000 mm (5.9 ~ 39.4 in)

t slots

18 x 150 x 5 (Width x Distance x Number mm)

How much does the Pinnacle QV209 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle QV209 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Top of the QV line, the Pinnacle QV209 combines a 2,200 x 850 mm (86.6 x 33.5 in) table rated for 3,000 kg (6,614 lb) with box ways on every axis. It weighs 16,000 kg (35,273 lb). The group's feature list, 1500 (1700, 2000) X 900 x 850 mm Travel, identifies it as the 2000 mm machine, and because the maker's table misprints the travel cell the axis rows are not listed here.

Unlike the LV209, which slows its X and Y rapids to carry the long table, the QV209 keeps the 16 / 16 / 12 m/min of its smaller QV siblings. They were never fast. The cutting feed limit is 8,000 mm/min.

Work for this machine is large and heavy: press tools, big mould halves, fabricated frames. Three things in the table support that. The table load is the highest of any Pinnacle vertical with a single column. The spindle nose reaches 150 ~ 1,000 mm (5.9 ~ 39.4 in) from the table. And the ISO50 tool limit is 350 mm (13.8 in) and 15 kg (33 lb).

Floor space is 5,000 x 2,900 mm (196.9 x 114.2 in). The supply is 220V, 3Ph, 50 / 60Hz at 40 kVA with air at 6 kg/cm². The spindle motor is given as 25/20HP in the feature list, and the table's motor row should be clarified with Pinnacle.

Full Specifications

Parameter	Value
Table Size	2,200 x 850 mm (86.6 x 33.5 in)
Max Table Load	3,000 kg (6,614 lb)
Distance Spindle Nose to Table	150 ~ 1,000 mm (5.9 ~ 39.4 in)
T-Slots	18 x 150 x 5 (Width x Distance x Number mm)
Spindle Taper	ISO40; ISO50
Spindle Bearing Inner Diameter	ISO40: Ø70 mm (Ø2.8 in); ISO50: Ø100 mm (Ø3.9 in)
Spindle Center to Column	950 mm (37.4 in)
Spindle Speed Belt Drive	ISO40: 40 - 8,000(10,000/12,000) rpm; ISO50: 40 - 6,000 (8,000) rpm
Spindle Speed Gear Drive	ISO40: L40 ~ 2000, H2001-8000 rpm; ISO50: L40 ~ 1500, H1501 ~ 6000 rpm
Draw Bar Force	ISO40: 950 kgf; ISO50: 2,000 kgf
Rapid Traverse Xyz	16 / 16 / 12 m/min
Cutting Feed Rate	8,000 mm/min
Tool Magazine Type	ISO40: DISK; ISO50: DISK / CHAIN
Tool Capacity	ISO40: 24; ISO50: 24 / 32
Max Tool Diameter (full magazine)	ISO40: Ø90 mm (Ø3.5 in); ISO50: Ø105 / Ø127 mm (Ø4.1 / Ø5.0 in)
Max Tool Length	ISO40: 250 mm (9.8 in); ISO50: 350 mm (13.8 in)
Max Tool Weight	ISO40: 8 kg (18 lb); ISO50: 15 kg (33 lb)
Air Requirement	6 kg/cm²
Power Requirements	220V, 3Ph, 50 / 60Hz
Power Requirement	40 kVA
Coolant Tank Capacity	700 L
Machine Weight	16,000 kg (35,273 lb)
Machine Height	3,200 mm (126.0 in)
Floor Space	5,000 x 2,900 mm (196.9 x 114.2 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

3,000 kg (6,614 lb) table load on a 2,200 x 850 mm (86.6 x 33.5 in) table
Box ways on X, Y and Z in a 16,000 kg (35,273 lb) machine
Spindle nose to table distance of 150 ~ 1,000 mm (5.9 ~ 39.4 in)
Keeps the same 16 / 16 / 12 m/min rapids as the smaller QV159

Limitations

Cutting feed rate tops out at 8,000 mm/min
Travel and motor rows in the maker's table need clarifying before purchase
5,000 x 2,900 mm (196.9 x 114.2 in) footprint and 40 kVA supply

Best For

Press tools and large mould halves up to 3,000 kg (6,614 lb) Heavy ISO50 roughing on long workpieces Fabrications and frames near 2000 mm in length

Frequently Asked Questions

01 What is the maximum table load of the Pinnacle QV209?

3,000 kg (6,614 lb), on a table of 2,200 x 850 mm (86.6 x 33.5 in). The QV179 is rated for 2,500 kg (5,511 lb) and the QV159 for 2,000 kg (4,409 lb).

02 Does the QV209 use linear guides or box ways?

Box ways. The page lists an X, Y and Z axis square way design with hardened way surfaces over 2 mm deep, and 50mm class C3 ball screws on the three axes.

03 What are the installation requirements for the QV209?

Floor space of 5,000 x 2,900 mm (196.9 x 114.2 in), machine height of 3,200 mm (126.0 in), 220V, 3Ph, 50 / 60Hz at 40 kVA, air at 6 kg/cm² and a 700 L coolant tank. Machine weight is 16,000 kg (35,273 lb).

04 How does the QV209 differ from the LV209?

Both have a 2,200 x 850 mm table rated for 3,000 kg and weigh 16,000 kg. The QV209 has box ways throughout and 16 / 16 / 12 m/min rapids; the LV209 has linear ways on X and Y and 18 / 18 / 16 m/min rapids.
